Both Side PE Color Copolymer Coated Steel Tape For Fiber Optic Cables Armouring
Both Side PE Color Copolymer Coated Steel Tape For Fiber Optic Cables Armouring
Both Side PE Color Copolymer Coated Steel Tape For Fiber Optic Cables Armouring
Both Side PE Color Copolymer Coated Steel Tape For Fiber Optic Cables Armouring
Both Side PE Color Copolymer Coated Steel Tape For Fiber Optic Cables Armouring
Both Side PE Color Copolymer Coated Steel Tape For Fiber Optic Cables Armouring
Both Side PE Color Copolymer Coated Steel Tape For Fiber Optic Cables Armouring
Both Side PE Color Copolymer Coated Steel Tape For Fiber Optic Cables Armouring
Both Side PE Color Copolymer Coated Steel Tape For Fiber Optic Cables Armouring
Both Side PE Color Copolymer Coated Steel Tape For Fiber Optic Cables Armouring
Specifications
Brand Name :
KCO, Kocent Optec Limited
Model Number :
Copolymer Coated Steel Tape
Certification :
ISO9001, RoHS
Place of Origin :
Jiangsu, China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
10,000km/ month
Delivery Time :
3~5 days after get payment
Packaging Details :
wooden roll, wooden pallet
Application :
Cable production
Thickness :
0.1-0.35mm, customized
Width :
12mm-600mm
Length :
Customized
Color :
Green
Surface Treatment :
copolymer coated
Description

Description:

Product name: Copolymer coated steel tape for cable armouring

Base material: Tin free steel (ECCS)

Coating: copolymer

DIMENSION SPECIFICATION:

Copolymer : 0.050 mm +/ 0.005 mm EAA ( Ethylene Acrylic Acid)

Steel: 0.150 mm +/ 0.010 mm ECCS ( Electrolytic Chrome Coated Steel)

Copolymer : 0.050 mm +/ 0.005 mm EAA ( Ethylene Acrylic Acid)

Width: 32 mm

Length: 2200~2400 meters per roll

Color : Green

Core ID: 150 mm, made of steel

Q’ty: 20 MT/ cont

PHYSICAL PROPERTIES

Tensile Strength: 310 Mpa min.

Elongation: 20 % min.

Peel Strength: 6.13 N/cm min.

Heat Seal Strength: 17.5 N/cm min.

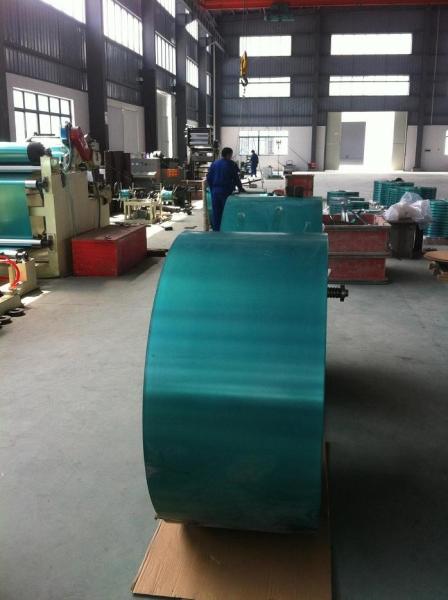

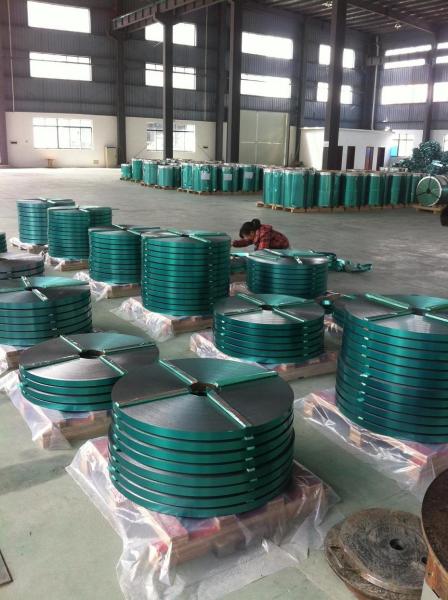

Product photos:
Both Side PE Color Copolymer Coated Steel Tape For Fiber Optic Cables Armouring
Both Side PE Color Copolymer Coated Steel Tape For Fiber Optic Cables Armouring
Both Side PE Color Copolymer Coated Steel Tape For Fiber Optic Cables Armouring
Both Side PE Color Copolymer Coated Steel Tape For Fiber Optic Cables Armouring

Both Side PE Color Copolymer Coated Steel Tape For Fiber Optic Cables Armouring

Both Side PE Color Copolymer Coated Steel Tape For Fiber Optic Cables Armouring

Technical data for copolymer coated steel tape:

MILL TEST REPORT
Name . Specification of Test Sample COPOLYMER COATED STEEL TAPE 50/155/50
ITEM Width (mm) 610 mm Roll NO. K130112-5
Length (meter) /
Standards and Norm YD/T723.3-2007
NO Property Units Typical vaule Results Test method
1 Steel Tape Thickness mm 0.15 0.15 ASTM A623M
Copolymer coating mm 0.05 0.05
Total mm 0.25 0.25
2 Color Green Green
3 Tensile Strength Mpa min 300 345 ASTM B736
4 Elongation % min 15 28
5 Peel strength of Water Resistance N/cm min 6.13 6.35 ASTM B736
68±1°C,168 h
6 Filler/Flooding Resistance No delamination No delamination REA PE-39, PE-89
68±1°C,168 h
7 Heat seal strength N/cm min 17.5 18.5 ASTM B736
8 Dielectric strength (DC2KV 1 min) Without breakdown No break
9 Corrosion Resistance Grade min 7 7 ASTM A657
0.1mol/L HCL 480 h
10 Core ID mm 150 150
Result: PASS

Material for copolymer coated steel tape:

Steel: Usually the material is Tin Free Steel.

We can also use other material as you request

Thickness: 0.11mm, 0.13mm, 0.15mm etc..

Film material: POE, LLDPE, LDPE, PE, EVA, ABS, EAA, etc..

Thickness: 0.05mm, 0.04mm, 0.03mm

Application for copolymer coated steel tape:

1. Copolymer coated steel tape is widely used in shielding for telecommunication cables, power cables and fibre optical cables;

2. Good insulativity and shielding effectiveness to reduce return loss, complying with RoHS standard, which make it widely used in coaxial cable, local area network cable, and as shielding layer of many other cables;

OEM/ODM Service:

If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

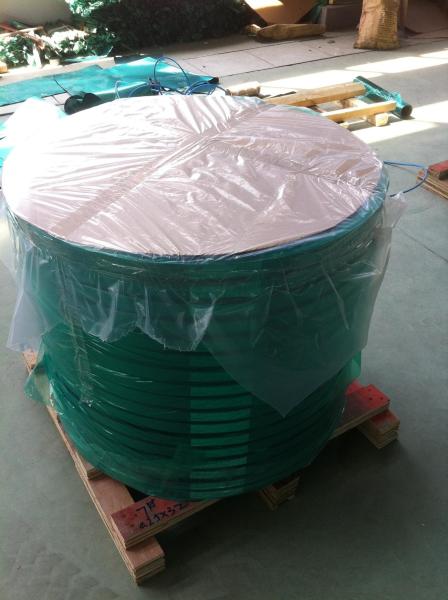

Packing:

According to Stardard Export Packing.

Carton box, wooden box, wooden pallet.

Both Side PE Color Copolymer Coated Steel Tape For Fiber Optic Cables Armouring

Shipping:

- International express such as UPS, TNT, DHL, etc

- Internatioal air: CA, AA, EA, etc

- By sea

Both Side PE Color Copolymer Coated Steel Tape For Fiber Optic Cables Armouring
