Inline Horizontal Fiber Optic Splice Closure , Outdoor Water Proof Fiber Joint Box 6 Cores
Inline Horizontal Fiber Optic Splice Closure , Outdoor Water Proof Fiber Joint Box 6 Cores
Inline Horizontal Fiber Optic Splice Closure , Outdoor Water Proof Fiber Joint Box 6 Cores
Inline Horizontal Fiber Optic Splice Closure , Outdoor Water Proof Fiber Joint Box 6 Cores
Specifications
Brand Name :
KCO, Kocent Optec Limited
Model Number :
KCO-H-1-1-02
Certification :
iSO9001, RoHS
Place of Origin :
Guangdong, China
MOQ :
Negotiation
Price :
Negotiable
Payment Terms :
T/T,L/C
Supply Ability :
5,000pcs/week
Delivery Time :
5~14 working days
Packaging Details :
Carton box, wooden pallet
Type :
Inline type
Cable ports :
2ports
Cable diameter :
8.0~22.0mm
Min. capacity :
4 cores
Max capacity :
24 cores
Material :
PPR, ABS, PC, PP
Description
Inline Horizontal Fiber Optic Splice Closure , Outdoor Water Proof Fiber Joint Box 6 Cores
Quick detail about horizontal fiber optic splice closure:
Name: Inline/ Horizontal Type Fiber Optic Connection Box
Part number: KCO-H-1-1-02
Size: 390*140*80mm
Weight: about 1.0kg
Cable entry port: 2 ports
Capacity of fibers: 36 cores
Splice tray number: max. 3 trays
Material: ABS / PC / PPR / PP Plastic
Cable Diameter: 7.0-22.0mm
Working temperature: -40℃ to 65℃
Features:
  • Widely used in FTTH access network
  • Aerial-hanging
  • Wall-mounting
  • Duct
  • Direct-bury
Technical Parameter:
Working Temperature: -40 degrees centigrade~+70 degrees centigrade
Atmospheric Pressure: 70~150Kpa
Axial Tension: >2000N/1min
Stretching Resistance: 2500N/10 square centimetre(1min)
Insulation resistance: >2*104MΩ
Voltage Strength: 15KV/1min, no arcover or breakdown
Pressure in the water: 50m/72hours
Splice tray with optical taking-in radius: ≥40mm. Low optical loss
Descriptions:

The fiber optic splice closure is used in the field of cable network, overhead pipe, buried wiring connection or joint protection equipment.

All property indexes are in accordance with National YD/T814-1996 Standard.

The case body is made from imported high-intensity engineering plastics (ABS) and formed the shape with mould plastics under high pressure. It is in the shape of half rectangle, with the advantages of less weight, high mechanical intensity, corrosive-resistance, anti-thunderstruck andlong service life.

The case body and cable entrance are sealed with adhesive rubber strip(non-vulcanized) andsealed tape. - Reliable sealing capability. It can be re-opened and easy to maintain.

Applications:
  • Widely used in FTTH access network
  • Telecommunication networks
  • CATV networks
  • Data communications networks
  • Local area networks
  • Aerial, Direct buried, underground, pipeline, hand-holes, duct mountig, wall mounting.

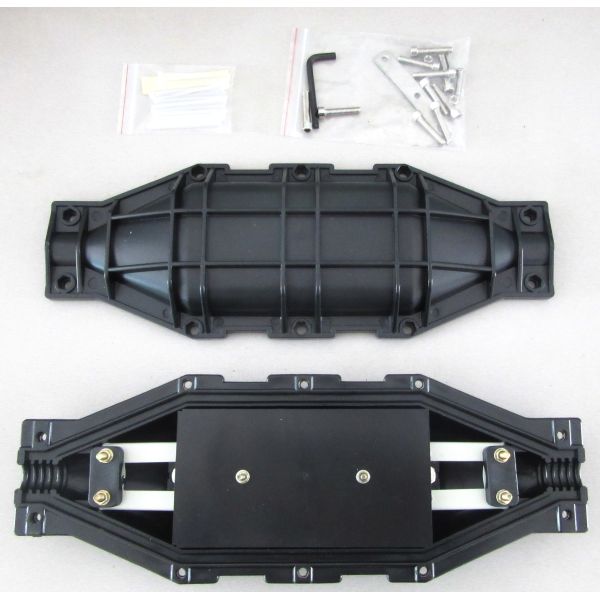

Product pictures:

Inline Horizontal Fiber Optic Splice Closure , Outdoor Water Proof Fiber Joint Box 6 Cores

Main parts:
No.NameQuantityUsageRemark
1Crust1 setProtecting fiber cable splices in whole
2Fusion splice trayMax.4 trayFix fiber, Protect heat-shrinkable tube Sleeve
3Foundation1 setFix cable,reinforced core and tray
4Seal fitting1 setAir-proof between cover and bottom
5Port plug4 piecesSealing empty ports
6Valve1 setPressure measurement,inspection sealingConfigure by user
Accessories list:
No.Name of accessoriesQuantityUsageRemarks
1Heat shrinkable tubeProtecting fiber splicesConfiguration as per capacity
2Nylon tieFixing fiber with protective coatConfiguration as per capacity
3Insulation tape1 rollEnlarging diameter of fiber cable for easy fixing
4Seal tape1 rollEnlarging diameter of fiber cable which fits in with seal fittingConfiguration as per specification
5Hanging hook1 setFor aerial use
6Label tape1 pieceSign fiber
7Spanner1 pieceInstall bolts of shell
8Desiccant1 bagDesiccating air.
OEM/ODM Service:

If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:

According to Stardard Export Packing.

Carton box, wooden box, wooden pallet.

Shipping:
  • International express such as UPS, TNT, DHL, etc
  • Internatioal air: CA, AA, EA, etc
  • By sea
