NSN DLC 90 Degree Fiber Optic Patch Cord Single / Mono Mode CPRI Waterproof LC/UPC
NSN DLC 90 Degree Fiber Optic Patch Cord Single / Mono Mode CPRI Waterproof LC/UPC
NSN DLC 90 Degree Fiber Optic Patch Cord Single / Mono Mode CPRI Waterproof LC/UPC
NSN DLC 90 Degree Fiber Optic Patch Cord Single / Mono Mode CPRI Waterproof LC/UPC
NSN DLC 90 Degree Fiber Optic Patch Cord Single / Mono Mode CPRI Waterproof LC/UPC
NSN DLC 90 Degree Fiber Optic Patch Cord Single / Mono Mode CPRI Waterproof LC/UPC
Specifications
Brand Name :
KCO
Model Number :
Nokia NSN
Certification :
ISO9001, RoHS
Place of Origin :
Guangdong, China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
Western Union,T/T,L/C
Delivery Time :
2~5 days after get payment
Packaging Details :
PE bag, carton box, wooden roll
Connector 1 :
LC, SC, MPO
Connector 2 :
LC, SC, MPO
Core :
duplex, 2 cores
Insertion loss :
0.2dB
Return Loss :
55dB
Cable Cover material :
Armored, PVC, LSZH
Description
NSN DLC 90° Fiber Optic Patch Cord - Single/Mono Mode CPRI Waterproof
Nokia NSN DLC 90 Degree Single Mode Mono Mode CPRI FTTA Fiber Optic Patch Cord with IP67 waterproof rating, designed for harsh environmental applications in telecommunications and industrial settings.
Product Overview
KOCENT OPTEC LIMITED provides OEM and ODM services for comprehensive fiber optic patch cord solutions, specializing in outdoor field operations including ODVA, NSN, PDLC, DLC, ODC, RRU, TPU, CPRI, Optitap, Mini SC, and OM3/OM4 patch cords.
Key Features
  • IP67 waterproof NSN to standard SC/LC/FC/ST/E2000 duplex singlemode fiber patch cable
  • LC angled 90° connector with Nokia compatible waterproof sealing
  • Exceeds ODVA requirements with IP66/67 environmental sealing ratings
  • IEC60603-7 interface standard compatibility
  • Anti-rodent, damage-resistant design for harsh environments
  • Ruggedized construction withstands stepping and mechanical stress
Technical Specifications
Parameter Specification
Connector Side A: DLC/UPC singlemode with Nokia NSN boot
Side B: ODVA, DLC, SC, ST, FC, MPO/MTP
Fiber Count 2 cores, 4 cores and more
Fiber Type SM (G.652D/G.657A), MM (OM1/OM2/OM3)
Jacket Materials LSZH, OFNR, PVC, PE
Cable Diameter 4.8mm, 7.0mm
Insertion Loss ≤ 0.3dB (PC/UPC/APC), ≤ 0.3dB (UPC)
Return Loss ≥45dB (PC/UPC), ≥55dB (APC), ≥35dB (UPC)
Operating Temperature -14℃ to +85℃
Storage Temperature -40℃ to +85℃
Applications
Fiber-to-the-Antenna (FTTA): Mobile communication systems (GSM, UMTS, CDMA2000, TD-SCDMA, WiMAX, LTE) linking base stations with remote antenna units.
Automation & Industrial Cabling: Highest reliability and operating safety with mechanical and thermal robustness for shock, vibration, and accidental misuse conditions.
Surveillance Systems: Compact size and robust design for security cameras, easy installation in difficult access areas.
Naval & Ship Building: High corrosion resistance for humid and salty environments with 20+ year lifespan.
Broadcast: Mobile cabling systems for temporary installations in sports events, racing, and natural hazard scenarios.

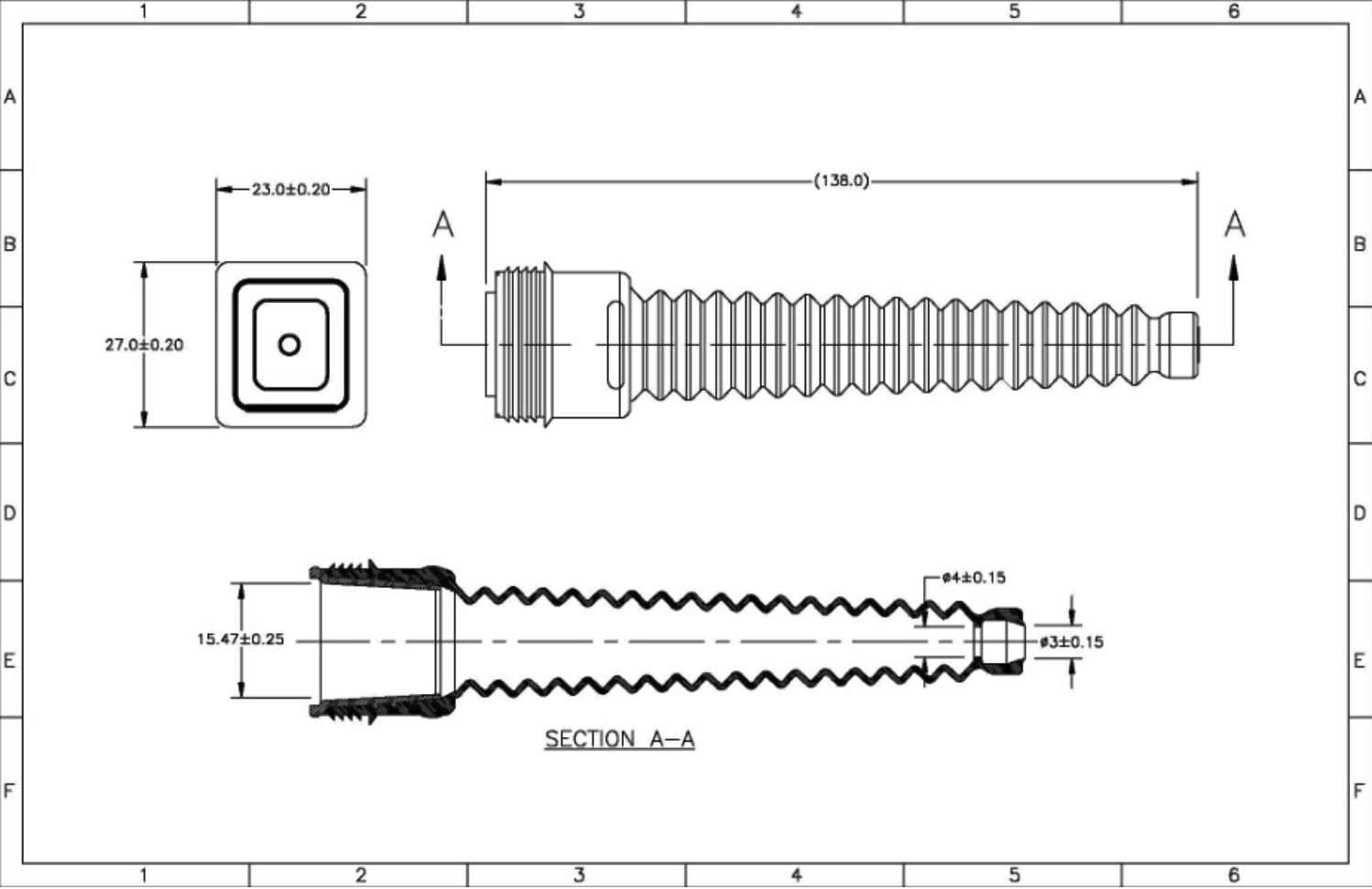

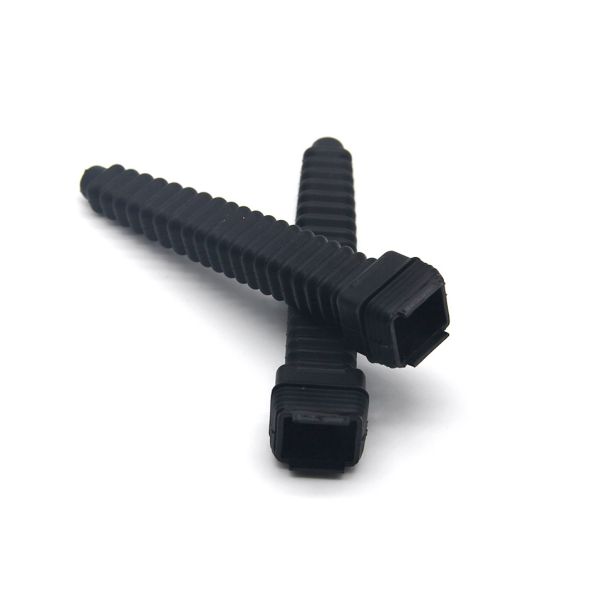

NSN Boot Design
NSN DLC 90 Degree Fiber Optic Patch Cord Single / Mono Mode CPRI Waterproof LC/UPC

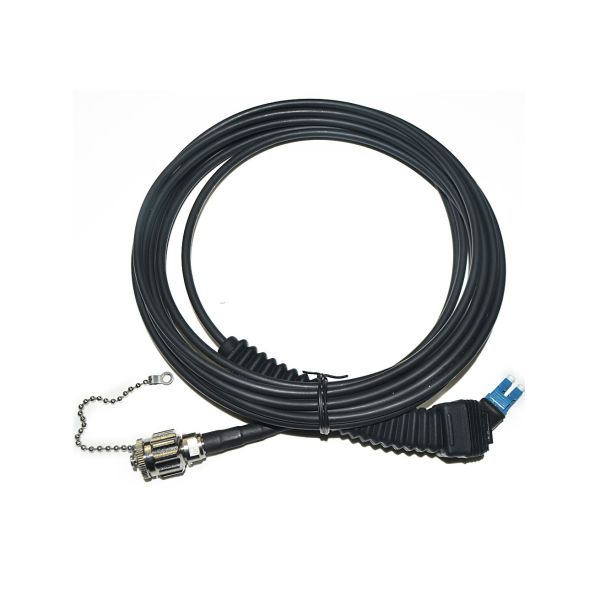

Product Photos
NSN DLC 90 Degree Fiber Optic Patch Cord Single / Mono Mode CPRI Waterproof LC/UPC NSN DLC 90 Degree Fiber Optic Patch Cord Single / Mono Mode CPRI Waterproof LC/UPC
OEM/ODM Services
Custom branding available on cables, packaging bags, labels, and other components. Our OEM and ODM services accommodate your specific branding requirements.
Packaging & Shipping
Standard export packing with carton boxes, wooden boxes, and wooden pallets. Shipping options include international express (UPS, TNT, DHL), international air freight, and sea freight.
