Specifications
Brand Name :
KCO
Model Number :
Nokia NSN
Certification :
ISO9001, RoHS
Place of Origin :
Guangdong, China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
Western Union,T/T,L/C
Delivery Time :
2~5 days after get payment
Packaging Details :
PE bag, carton box, wooden roll
Connector 1 :
LC, SC, MPO
Connector 2 :
LC, SC, MPO
Core :
duplex, 2 cores
Insertion loss :
0.2dB
Return Loss :
55dB
Cable Cover material :
Armored, PVC, LSZH
Description
Nokia NSN Boot Armored Fiber Optic Pigtail Cables
Available in SC, LC, MPO, E2000 Duplex configurations with OM3, OM4, OM5 fiber types
Product Overview
Nokia NSN Boot Armored Outdoor Field Fiber Optic Patch Cable designed for harsh environmental applications with IP65/IP67/IP68 protection ratings.
Key Features
  • Standard Duplex LC connector compatible with standard LC adapters
  • Available in Single mode and Multimode fiber types
  • IP65/67/68 protection - waterproof, dustproof, salt-mist proof, humidity proof
  • Low insertion/return loss for steady optical transmission
  • Lightweight with metal hard housing for durability
  • Robust fiber-optic connector with screwed mating mechanism
  • High shock, vibration, and mechanical resistance
  • Broad temperature range for indoor and outdoor applications
  • Easy, reliable and cost-effective installation
Nokia NSN Boot Armored Fiber Optic Pigtail Cables SC LC MPO E2000 Duplex OM3 OM4 OM5
Applications
  • Fiber-to-the-Antenna (FTTA): For GSM, UMTS, CDMA2000, TD-SCDMA, WiMAX, LTE and next-generation mobile communication systems
  • Automation and Industrial Cabling: Highest reliability and operating safety in harsh environments
  • Surveillance Systems: Compact size and robust design for security camera installations
  • Naval and Ship Building: High corrosion resistance for humid and salty environments
  • Broadcast: Mobile cabling systems for temporary installations and events

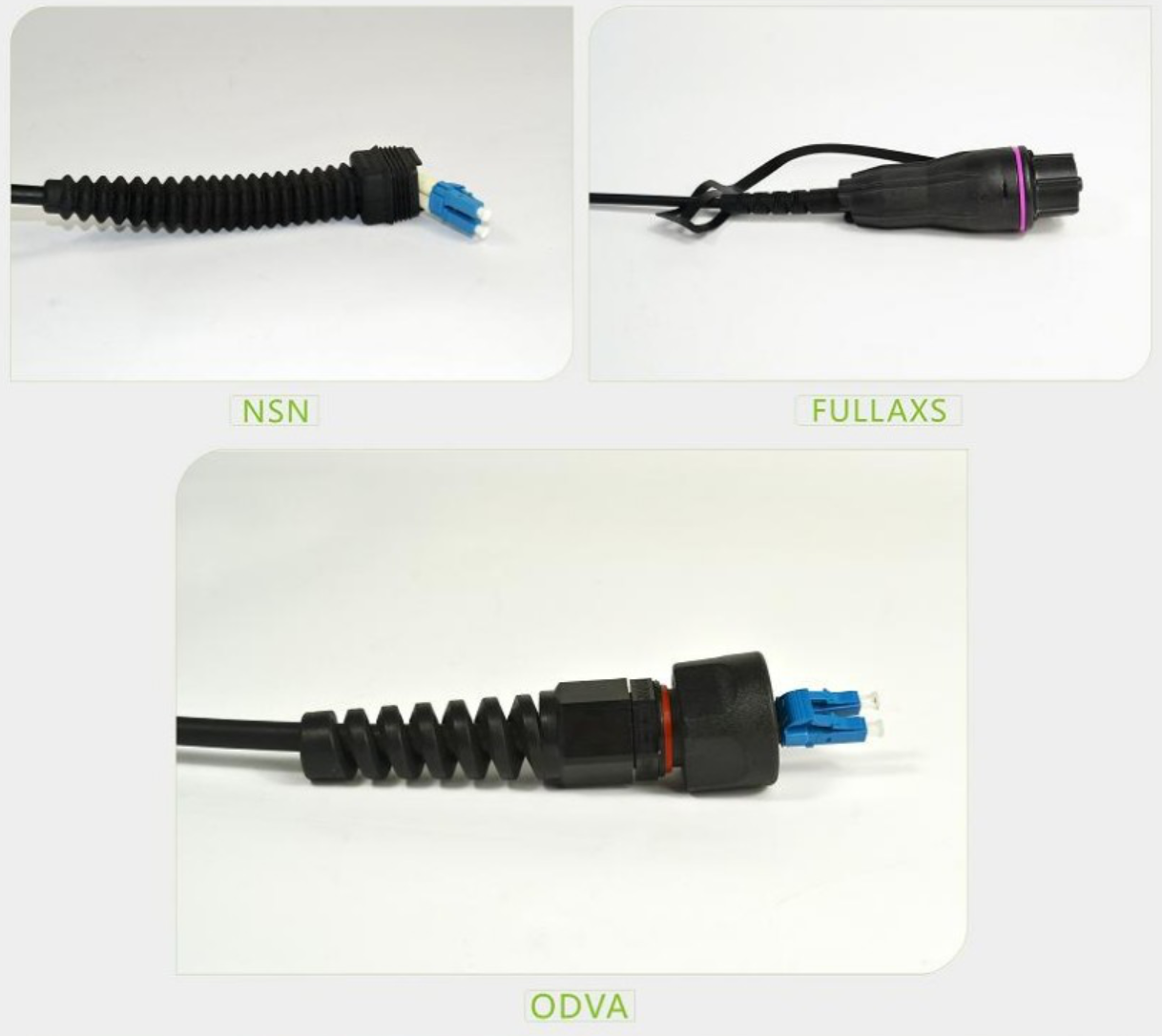

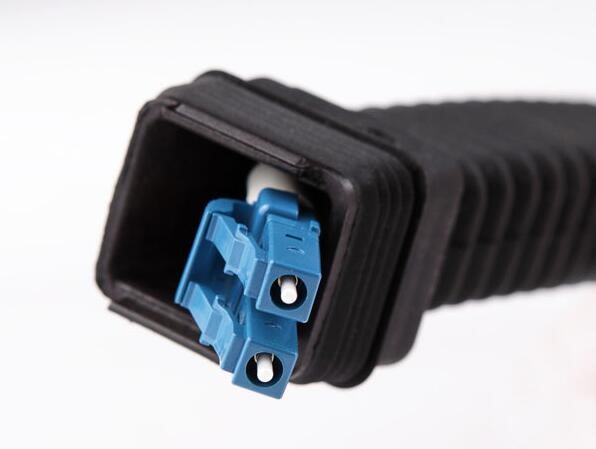

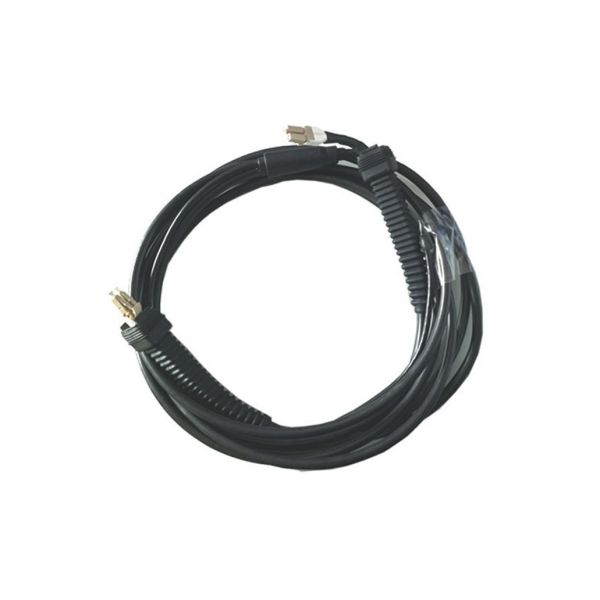

Product Images
Nokia NSN Boot Armored Fiber Optic Pigtail Cables SC LC MPO E2000 Duplex OM3 OM4 OM5 Nokia NSN Boot Armored Fiber Optic Pigtail Cables SC LC MPO E2000 Duplex OM3 OM4 OM5 Nokia NSN Boot Armored Fiber Optic Pigtail Cables SC LC MPO E2000 Duplex OM3 OM4 OM5
Optical Performance Specifications
Product TypeWaterproof CableFiber TypeSinglemode OS2 9/125
Connector 1IP67 Waterproof NSNConnector 2SC/LC/FC/ST/E2000
Trunk Diameter7.0mmBranch Diameter3.0mm
Insertion Loss≤0.20dBReturn LossLC≥50dB, E2000 APC≥60dB
Storage Temperature-55°C to 85°COperating Temperature-40°C to 85°C
Cable Specifications
Fiber CountCable Dimension (mm)Cable Weight (kg/km)Tensile (N) Crush (N/100mm)Min. Bend Radius (mm)Temperature Range
27.042.3200 (Long Term)
400 (Short Term)		 1100 (Long Term)
2200 (Short Term)		20D (Dynamic)
10D (Static)		 -30°C to +70°C
Note: D is outer diameter of the round cable. All values are for reference only and subject to change without notice.
Manufacturer Information
KOCENT OPTEC LIMITED provides OEM and ODM services for all types of fiber optic patch cords, specializing in outdoor field operations fiber optic solutions.
Product Range
We supply various field operations fiber optic patch cords including ODVA, NSN, PDLC, DLC, ODC, RRU, TPU, CPRI, Optitap, Mini SC patch cords, and OM3/OM4 patch cords for Telecom 3G, 4G, LTE, BBU, RRU, RRH base stations.
OEM/ODM Services
Custom branding available on cables, packaging bags, labels, and other components to meet your specific requirements.
Nokia NSN Boot Armored Fiber Optic Pigtail Cables SC LC MPO E2000 Duplex OM3 OM4 OM5
Packing & Shipping
  • Standard Export Packing with carton boxes, wooden boxes, or wooden pallets
  • International express services: UPS, TNT, DHL
  • International air freight
  • Sea freight available
