Grinding Fiber Optic Jig Connector Fixture For Corner Pressure Patch Cord Polishing Machine
Description

The grinding fiber optic jig is special designed to fixing the fiber optic conector or ferrule or other. It is large using in fiber optic patch cord production line. It is one of most importance part in the fiber optic patch cord production line.

  • Optical fiber connector end face has excellent polishing quality, high 3D pass rate and low repair rate
  • It is simple and flexible operation.
  • SC, FC, LC, ST, E2000, SMA, MPO, MTP, ... can be used by disassembling interchangeable adapters, but it requires professional operation.
  • The product is made through multiple special processes, which is wear-resistant, rust-proof, and not easily deformed.
  • The optical fiber polishing jig is IPC Structure, Independent compression of each connector. The optical fiber polishing jig pass rate with Interference ≥98%.
  • The optical fiber polishing jig using high quality steel with heated treat, the hardened steel S136 provide long service life.
  • This optical fiber polishing jig is high stability and good surface quality.
Application
  • Mainly used for polishing fiber optic connector, patchcord, ferrule end face;
  • Or non-standard materials like metal, glass, ceramic end face polishing;
  • Or precision parts end face polishing.
  • 36-48 connectors can be polished at one time.
Features
  • Made with high quality, by using hardened steel;
  • Adopt central pressurized way to polish, more stable;
  • The plugs of connector polishing jig can be interchanged, prolong the service life of grinding plate;
  • This fiber polishing jig adopt independent pressurized way, eliminate ferrules show the different length effects on polishing;

Note: All kinds of fiber polishing jigs/Polishing Module can be customized according to customers' requirement.

Product pictures

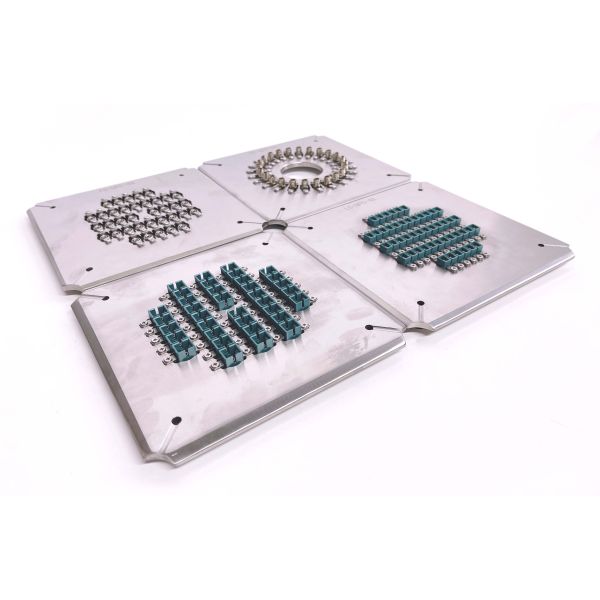

Grinding Fiber Optic Jig Connector Fixture For Corner Pressure Patch Cord Polishing Machine Grinding Fiber Optic Jig Connector Fixture For Corner Pressure Patch Cord Polishing Machine
Other relation machines
Grinding Fiber Optic Jig Connector Fixture For Corner Pressure Patch Cord Polishing Machine Grinding Fiber Optic Jig Connector Fixture For Corner Pressure Patch Cord Polishing Machine Grinding Fiber Optic Jig Connector Fixture For Corner Pressure Patch Cord Polishing Machine Grinding Fiber Optic Jig Connector Fixture For Corner Pressure Patch Cord Polishing Machine Grinding Fiber Optic Jig Connector Fixture For Corner Pressure Patch Cord Polishing Machine
Specification
Product Size 174mm*174mm*5.1mm
Wet weight About 1.2kg
Application Fixed FC / APC Fiber Connector Polished
Suitable Fiber Connector Polisher Four-corner pressure optical fiber connector polishing machine
Material Hardened stainless steel2316
Applications
Product Type Application
D
  • Lapping for Fiber optic connector, fiber array, glass pig tail(angel removal, rough grinding, medium polishing, fine finishing)
  • Polishing for magnetic heads and hard disks
  • Lapping and polishing for optical glasses, optical crystal , LED
  • Lapping and polishing for Semiconductor wafer (gallium arsenide, indium phosphide etc.)
  • Edge polishing for silicon wafer
SC
  • Epoxy and glass removal
  • Lapping and polishing for plastic ferrules
  • Fine finishing and polishing for magnetic heads
AO
  • Polishing for fiber optical connectors
  • Polishing for silicon wafer used in Solar cells
  • Polishing for hard disks
  • Polishing for ITO
  • Lapping and polishing for optical crystal
CO
  • The final polishing for fiber optical connectors
  • Polishing for optical devices
SO
  • The final super-precise polishing of optical fiber connector
Specifications
Type D(Diamond) SC (Silicon Carbide) AO(Aluminum Oxide) CO(Cerium Oxide) SO(Silicon Oxide)
Grit Size/um 30 Green Light Green Green
20 White
16 White
15 Yellow-Green Tawny Light Green Brown
12 Yellow
9 Blue Orange Gray-green Blue
6 Yellow
5 Gray-green White
3 Pink Tan Pink & White
2 Gray-green Bright Green
1 off-white Lavender Gray-green Blue
0.5 off-white Brown-yellow White White
0.3 White Dark Red
0.2 Grey
0.1 Light Brown White
0.02 Transparent
0.01 Transparent
Recommended Polishing Medium Water/Oil Water/Oil Water/Oil SOQ-12D Water
Standard Size

Disk:Φ70mm,

Φ110mm,

Φ127mm(5inch),

Φ203mm(8inch)

Sheet:

114mm*114mm,

152mm*152mm (6inch),

228*228mm (9inch)
Note: Other film sizes are available upon request.
Fiber Optic Patch Cord Production Process
Grinding Fiber Optic Jig Connector Fixture For Corner Pressure Patch Cord Polishing Machine
OEM/ODM Service

If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.

Packing
  • According to Stardard Export Packing.
  • Carton box, wooden box, wooden pallet.
Shipping
  • International express such as UPS, TNT, DHL, etc
  • Internatioal air: CA, AA, EA, etc
  • By sea
  • Standard export sea port: Shenzhen, Hongkong, Ningbo
  • Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
