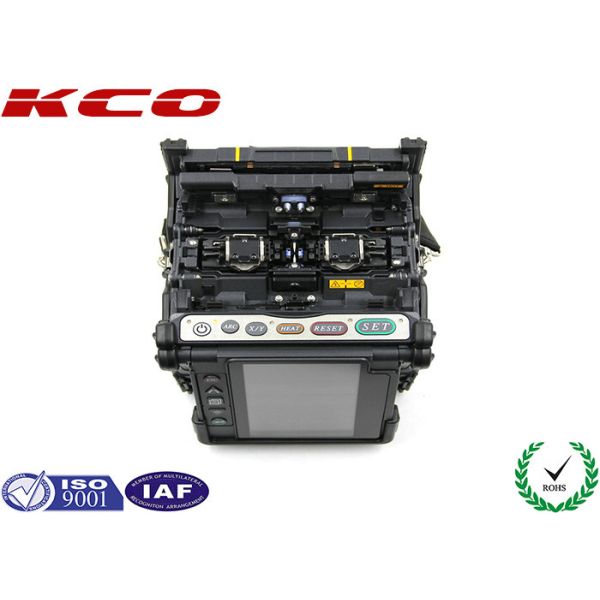

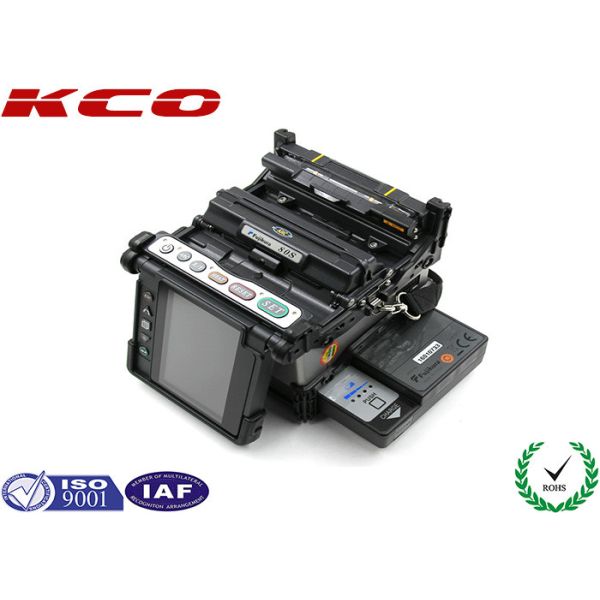

Fujikura FSM-80S Fiber Optic Fusion Splicer , Fiber Optic Tools
Fujikura FSM-80S Fiber Optic Fusion Splicer , Fiber Optic Tools
Fujikura FSM-80S Fiber Optic Fusion Splicer , Fiber Optic Tools
Fujikura FSM-80S Fiber Optic Fusion Splicer , Fiber Optic Tools
Fujikura FSM-80S Fiber Optic Fusion Splicer , Fiber Optic Tools
Fujikura FSM-80S Fiber Optic Fusion Splicer , Fiber Optic Tools
Specifications
Brand Name :
Fujikura
Model Number :
FSM-80S
Certification :
ISO9001
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
Western Union,T/T
Supply Ability :
5000 pcs/ month
Delivery Time :
2~5 days after get payment
Packaging Details :
Protection box, carton box, wooden box
Average splice loss :
0.01dB~0.04dB
Tention test :
2.0N
Fiber :
SM, MM, DS, NZ-DS, EDF
Return Loss :
60dB
Fiber dia. :
80~150µm
Cleave length :
10~16mm
Description
Fujikura FSM-80S Fiber Optic Fusion Splicer , Fiber Optic Cable Splicing Machine
Descriptions:

FSM-80S fiber optic fusion splicer is core-to-core alignment single fiber splicer succeeding to FSM-60S.

In addition to ruggedized concept, which 60S created, the 80S has a series of new features, such as "Automated wind-protector and tube-heater" for quicker splicing cycle as well as fewer operation steps, "innovative carrying-case design" for quicker preparation, "powerful Li-ion battey" for longer operation, high resolution bigger LCD monitor, and "built-in operation manuals" in various languages.

Market is from backbone network installation to opto-electronics components production for quality splice

Product advantage:
  • The world's fastest time of welding and heating
    • In the SM-FAST mode 7 seconds to complete fusion
    • Use the bare optical fiber 60mm shrink tube 13 seconds to complete heating
  • Innovative design carrying case
    • To facilitate the construction and design
    • Removable table
  • Long life / low loss
    • A lithium battery can be done 200 times welding and heating
    • Life sustain discharge electrode rod 3000
    • No mirror Observing System
  • Streamlined procedures / automatic mechanical structure
    • Automatic switch windshield
    • Automatic switch heaters
  • Environmental adaptability
    • The world's first "76cm / the six-direction" drop resistance
    • Dust-proof, water-resistant design
  • Applicable to a variety of hot melt head and for a variety of different fiber clamp
  • Short cut length of weld 5mm

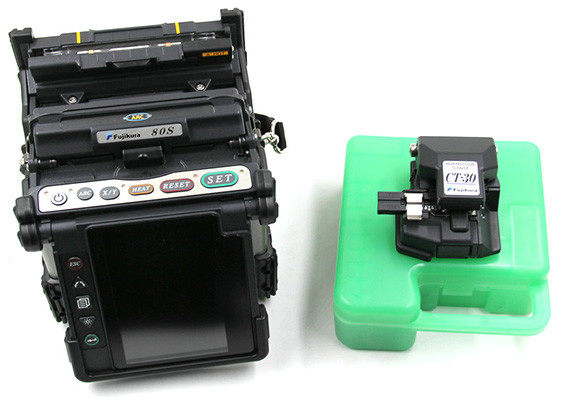

Product pictures:

Fujikura FSM-80S Fiber Optic Fusion Splicer , Fiber Optic Tools

Specifications:
Applicable fibres
SM (ITU-T G.652 & G.657), MM (ITU-T G.651), DS (ITU-T G.653),
NZDS (ITU-T G.655), Others
Fibre Count
Single
Cladding diameter
80 to 150μm
Coating diameter
100 to 1000μm
Fibre cleaved length
5 to 16mm using Sheath Clamp A, B or 5 to13mm using FH-60-250, FH-60-900
Actual average splice loss
0.02dB with SM, 0.01dB with MM, 0.04dB with DS, 0.04dB with NZDS.
Splice time
7sec:SM FAST mode, 12sec :SM AUTO mode, 15sec:AUTO mode
Return loss
60dB or greater
Splicing modes
100 splicer modes are available
Splice loss estimate
Several types of core deformations as well as core axis offset are taken into account for accurate loss estimate.
Attenuation splice function
Intentional high splice loss of 0.1dB to 15dB (0.01dB step) can be made for an inline fixed attenuator
Storage of splice result
The last 2000 results to be stored in the internal memory.
Magnification
X / Y (300X magnification), or both X and Y simultaneously (160X magnification)
Viewing method
By two CMOS cameras for intersecting fiber viewing and 4.73 inches TFT colour LCD monitor
Tension test
1.96 to 2.25N
Operating condition
0-5000m above sea level, 0-95% RH and -10 to 50°C respectively.
Tube heater
Built-in auto-start tube heater with 10 heating modes and up to 20 for reference
Tube heat time
13-15sec. with FP-03 protection sleeve. Total memory of 30 heating modes are available
Applicable protection
sleeve length
60mm, 40mm and a series of micro sleeves.
No. of splice/heating
with battery
200 times of splicing and heat shrinking under with BTR-09
Power supply
Auto voltage selection from 100 to 240Va.c. or 10 to 15Vd.c. with ADC-18. 14.8Vd.c. with BTR-09
Terminals
USB2.0 ( Mini-B) for data and video signal transfer to PC.
Wind protection
Up to 15m/s wind velocity

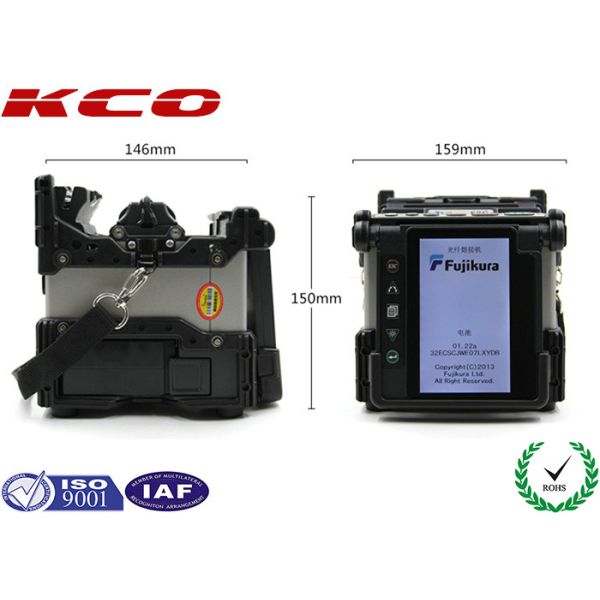

Dimensions
146(W) x 159(D) x 150(H) mm
Including wind protector, monitor, and rubber protector
Excluding rubber foot
Weight
2.5 kg, with ADC-18 AC adaptor
2.7 kg, with BTR-09 battery
Electrode life
3000 arc-discharges

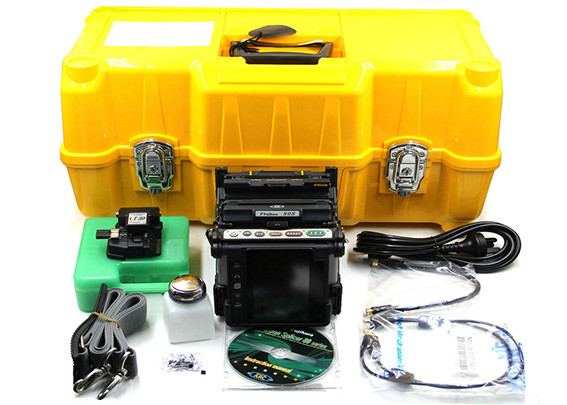

Standard packaging:

Fujikura FSM-80S Fiber Optic Fusion Splicer , Fiber Optic Tools
