Wire Fibre Optic Fusion Splicer / Fiber Optic Splicing Machine Sumitomo Type-81c

Fusion splicing is the act of joining two optical fibers end-to-end using heat. The goal is to fuse the two fibers together in such a way that light passing through the fibers is not scattred or reflected back by the splice, and so that the splice and the region surrounding it are almost as strong as the virgin fiber itself. The source of heat is usually an electric arc, but can also be a laser, or a gas flame, or a tungsten filament through which current is passed.

Fusion splicing machines are mostly automated tools that require you preset the splicing parameters or choose factory recommended settings that will control the splicing process itself. All require the use of a precision fiber cleaver that scribes and breaks (cleaves) the fibers to be spliced precisely, as the quality of the splice will depend on the quality of the cleave. Most splicing machines come with a recommended cleaver.

Features :

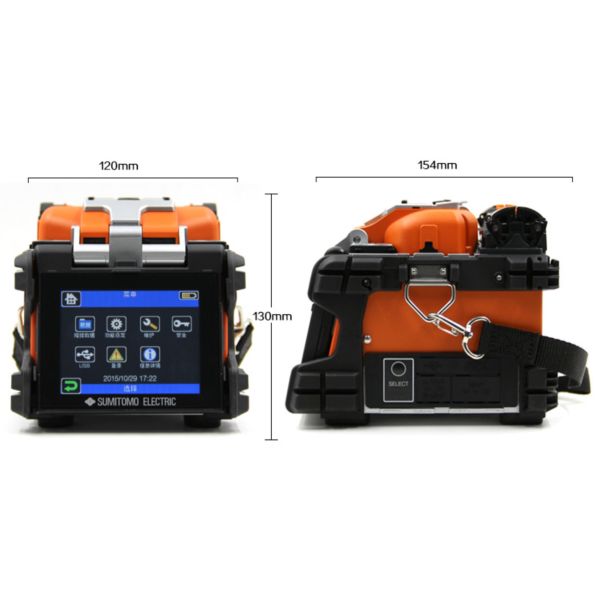

• Downsized by 43% from conventional model
• 2.1kg weight with battery
• Ultra fast splicing (7sec.)
• Ultra fast heating (28sec.)
• G.657 fiber auto splicing function
• IP52 rating and 76cm drop on 5 faces
• Automatic arc calibration

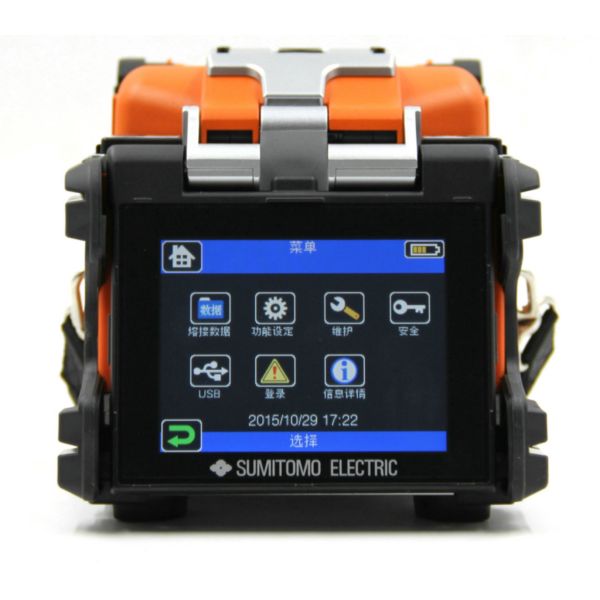

• Touch screen operation
• Universal clamp for 250nm, 900nm tight and loose buffer fiber
• User selectable heater clamp operation
• Support bi-directional splicing operation
• Equipped with onboard training vedio
• Upgrades software via internet

Specifitions:

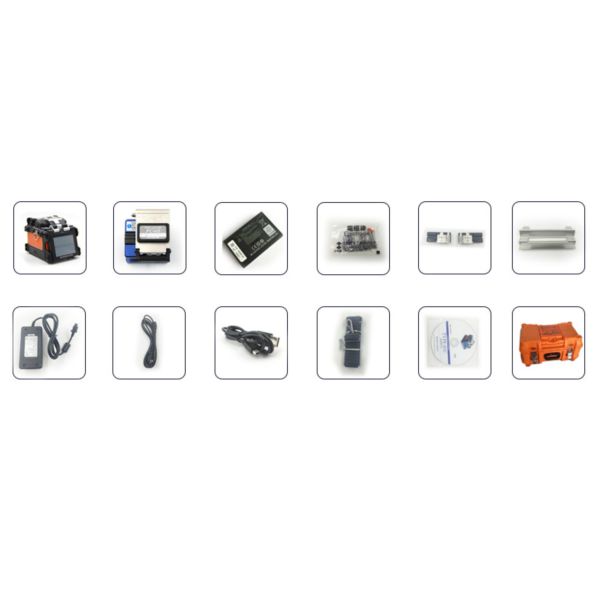

Packing list:

Notices:

Proper use of both the splicing machine and the cleaver require carefully following the manufacturer's directions. Each manufacturer's product is slightly different and requires somewhat different procedures. Reading the manuals and practice with the machine are important, especially if the operator has not been trained on the particular splicer in use.

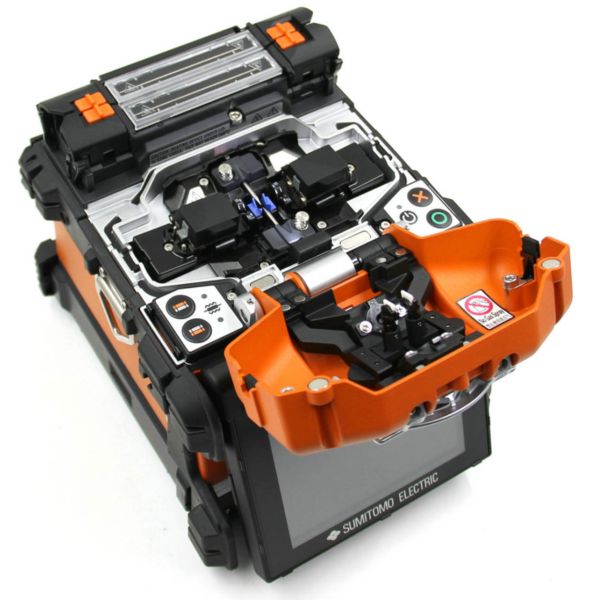

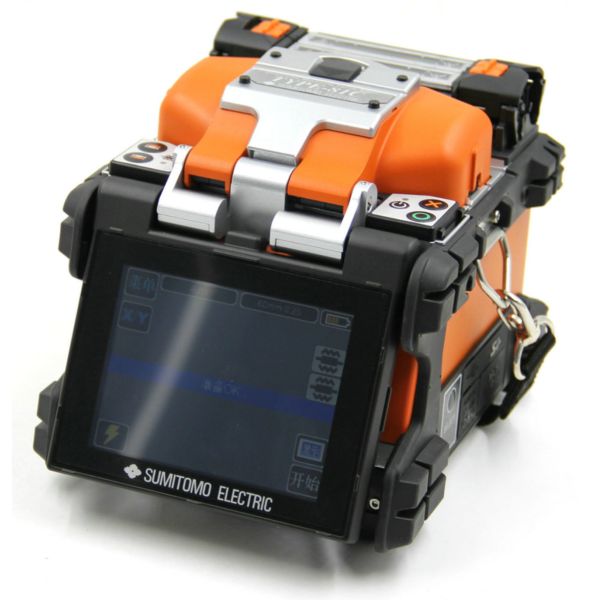

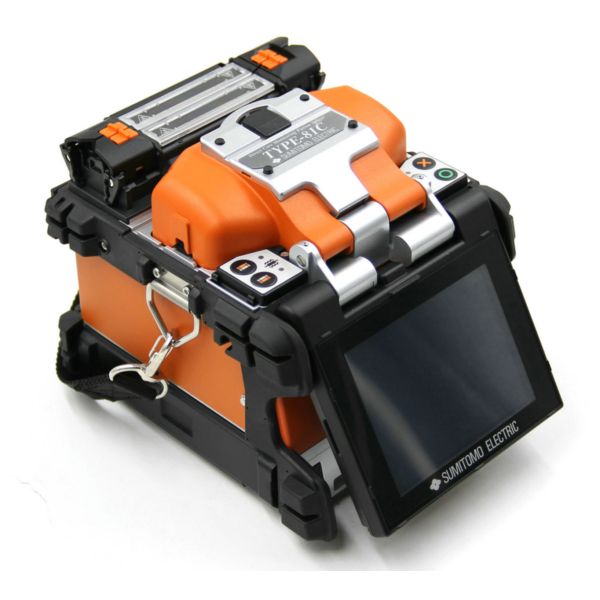

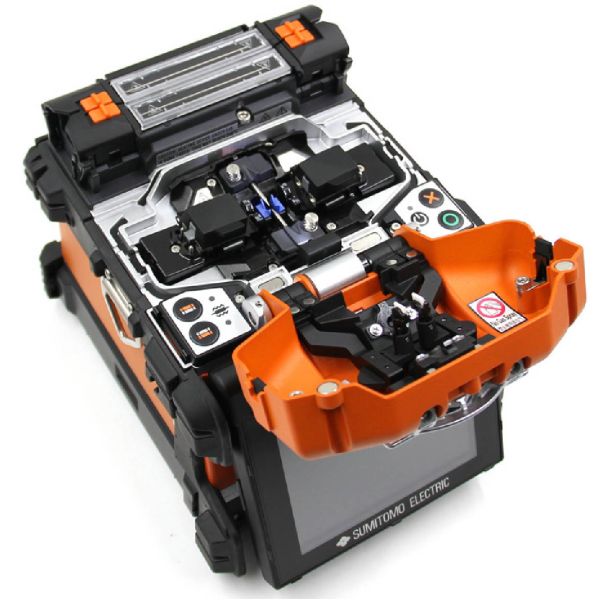

Product pictures:

Packing:

Carton box, wooden box, wooden pallet.

Shipping:

• International express such as UPS, TNT, DHL, etc
• Internatioal air: CA, AA, EA, etc
• By sea
