1x2 PLC Splitter SCA / FTTH Blockless Mini Splitter 1*2 0.9mm 1.5m G657 Fiber SCAPC Connector
1x2 PLC Splitter SCA / FTTH Blockless Mini Splitter 1*2 0.9mm 1.5m G657 Fiber SCAPC Connector
1x2 PLC Splitter SCA / FTTH Blockless Mini Splitter 1*2 0.9mm 1.5m G657 Fiber SCAPC Connector
1x2 PLC Splitter SCA / FTTH Blockless Mini Splitter 1*2 0.9mm 1.5m G657 Fiber SCAPC Connector
Specifications
Model Number :
KCO-ABS-1x32-2.0-1.5M-SCA
Connector color :
green
MOQ :
Negotiation
Delivery Time :
2~5 days
P/N :
KCO-PLC-1x2-0.9-1.5M-SCA
Price :
Negotiation
Splitter type :
1*2, 1x2, 1:2
Certification :
ISO9001, RoHS
Payment Terms :
Western Union,T/T,L/C
Pigtail Length :
1.0m, 1.5m
Cable Dia. :
0.9mm
Connector :
SC/APC
Supply Ability :
100,000 set/ month
Package type :
mini plc splitter
Brand Name :
KCO, Kocent Optec Limited
Pigtail Color :
brown
Packaging Details :
Carton box, wooden pallet
Place of Origin :
Guangdong, China
Description
1x2 PLC Splitter SCA / FTTH Blockless Mini Splitter 1*2 0.9mm 1.5m G657 Fiber SCAPC Connector
Product Overview
- Planar Lightwave Circuit (PLC) Passive Fiber Optic Splitter with SC/APC termination.
- Utilizing silica optical waveguide technology for accurate, even optical signal distribution with minimal loss.
- This compact, high-reliability solution is ideal for EPON, GPON, FTTH, and FTTX networks.
- 1x2 PLC splitter is a passive optical power management component that evenly divides one incoming single mode optical signal into two outputs. It relies on silica optical waveguide technology to distribute optical signals reliably over a broad wavelength range of 1260nm to 1650nm.
- It is used to divide a single incoming optical signal into two identical, separate outputs. It is a foundational component in modern fiber-optic communication, designed to expand network reach without adding active, powered electronic components.
Key Features
  • Precision optical signal distribution with minimal loss
  • Compact mini blockless box design for space efficiency
  • High reliability for demanding network environments
  • Ideal for FTTX, PON, and telecom applications
  • Available in multiple configuration options
Technical Specifications
Parameter Specification
Configuration Type 1x2, 1:2
Fiber Type G.657A1
Pigtail Diameter 0.9mm
Pigtail Length 1.5m input / 1.5m output
Connector Type SC/APC
Loose tube color Brown
MNF Kocent Optec Limited
Orgin Guangdong, China.
Applications
  • FTTx networks (FTTB, FTTH, FTTC)
  • Passive optical networks (PON)
  • CATV systems
  • Local area networks (LAN)
  • Test and measurement equipment
  • DWDM and CWDM systems

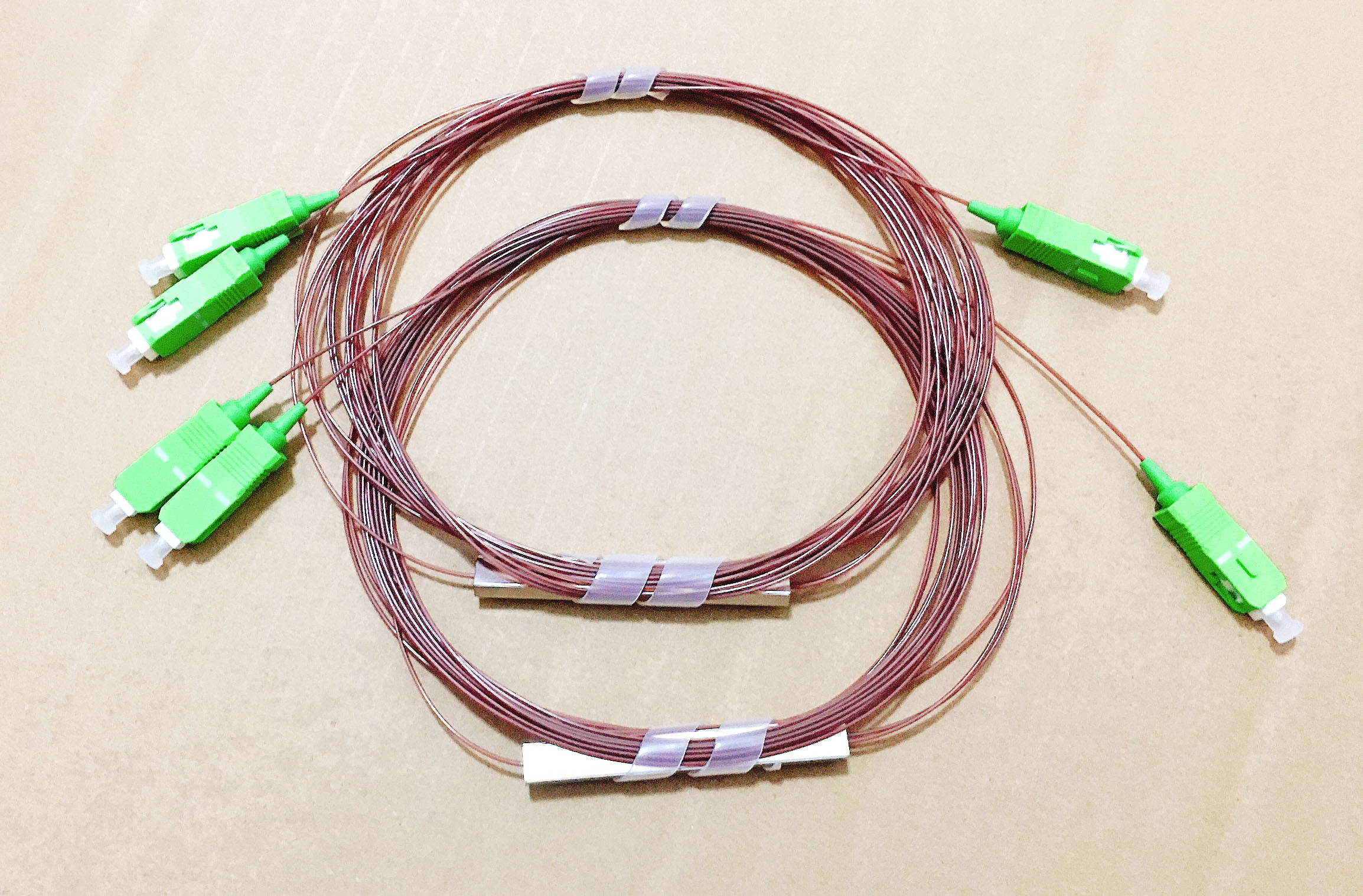

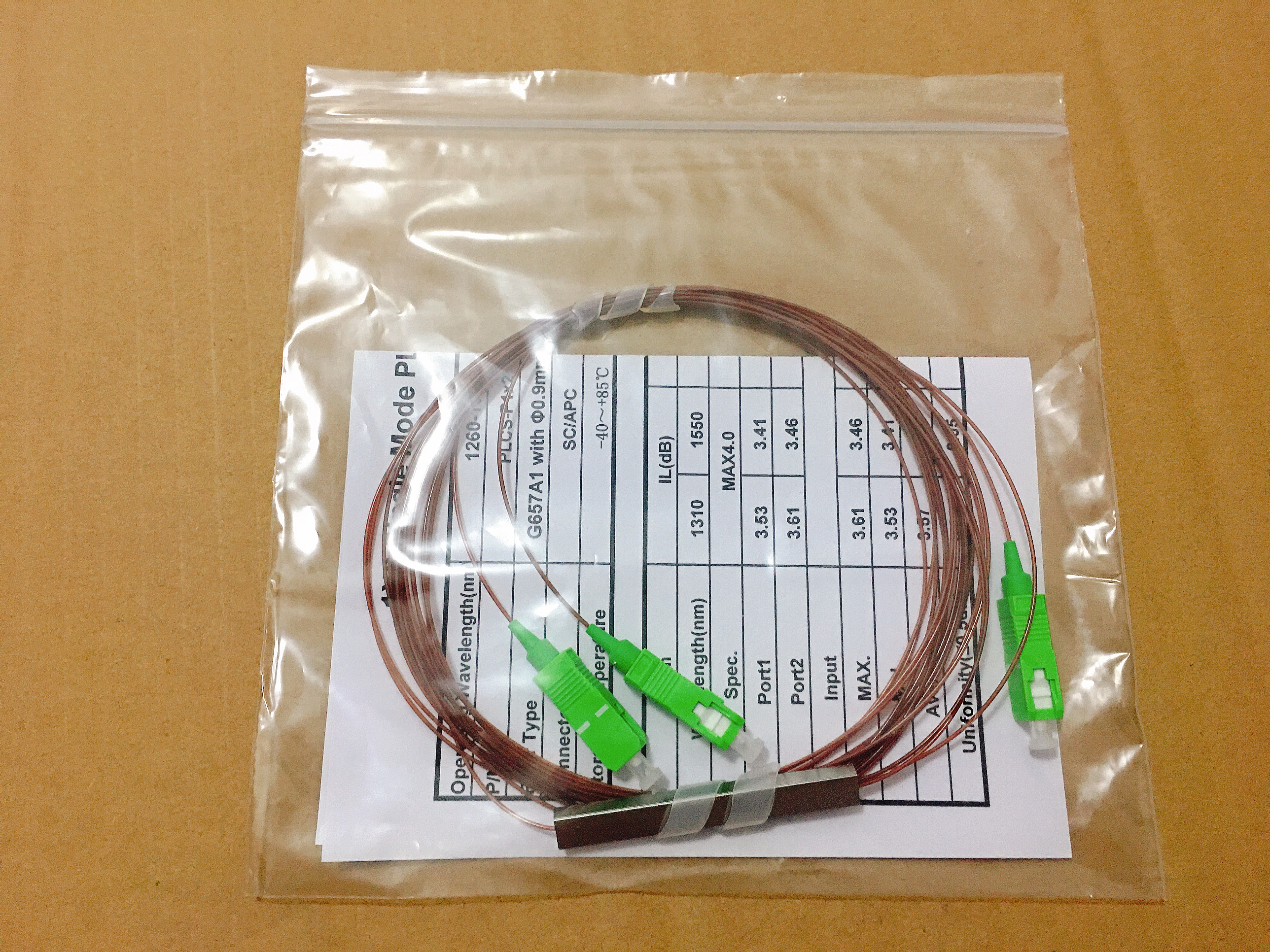

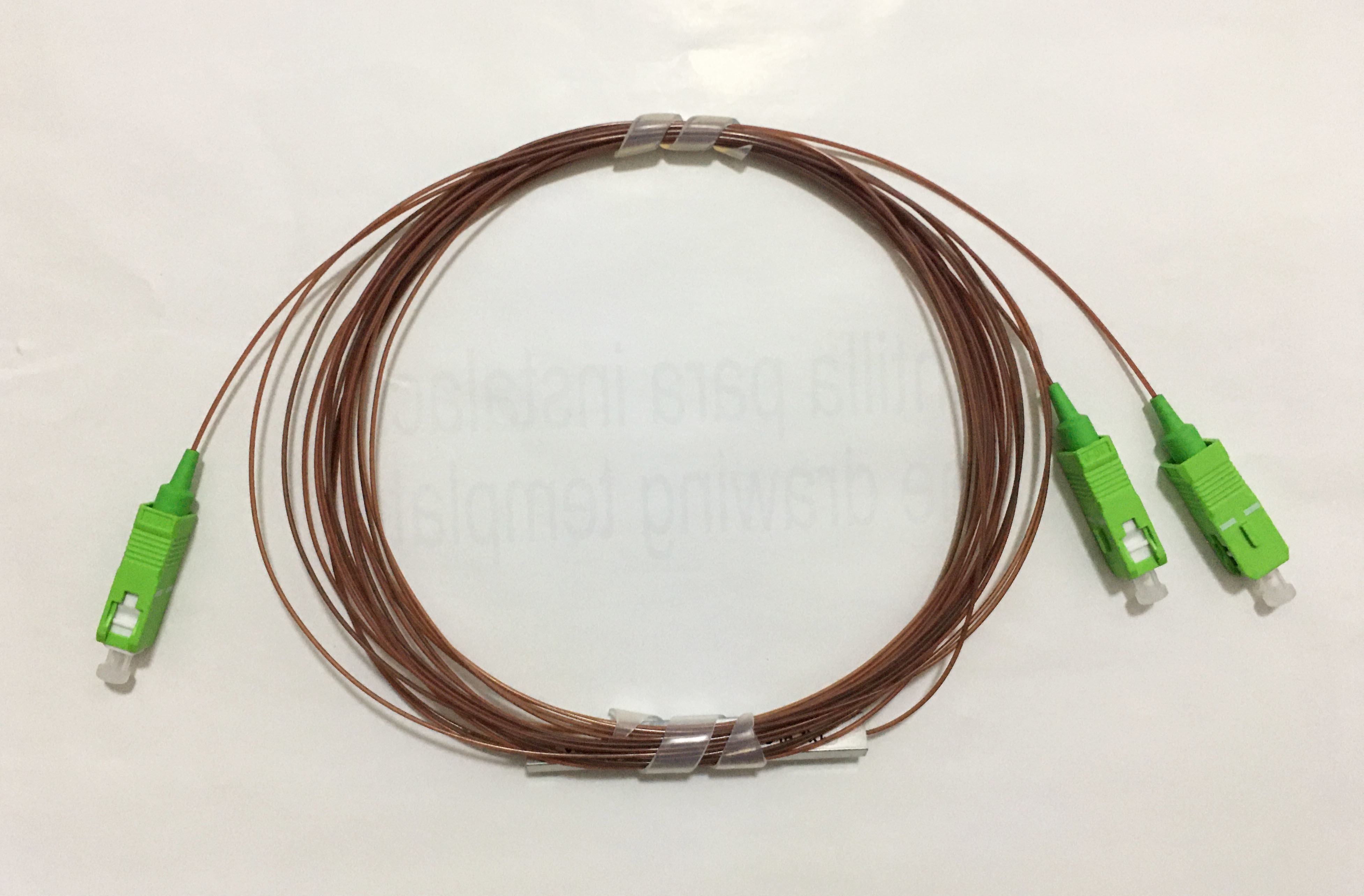

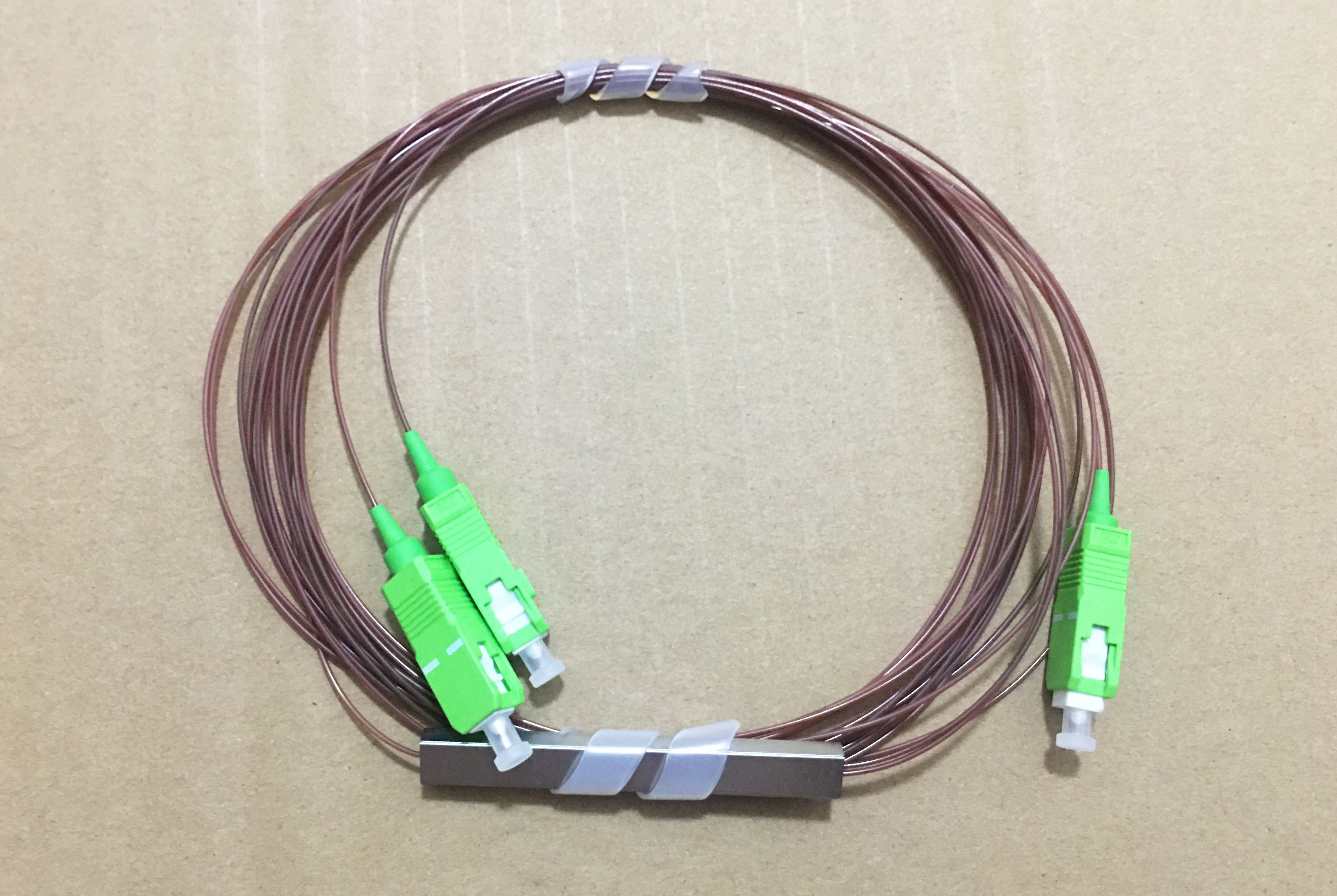

Product Images
1x2 PLC Splitter SCA / FTTH Blockless Mini Splitter 1*2 0.9mm 1.5m G657 Fiber SCAPC Connector
1x2 PLC Splitter SCA / FTTH Blockless Mini Splitter 1*2 0.9mm 1.5m G657 Fiber SCAPC Connector
Packaging & Shipping
  • Standard export packing (carton box, wooden box, pallet)
  • Shipping options: Express (DHL, UPS, TNT), Air freight, Sea freight
  • Export ports: Shenzhen, Hongkong, Ningbo
  • Export airports: Shenzhen, Hongkong, Hangzhou, Shanghai

OEM/ODM Services
Custom branding available for cables, packaging, labels, and other components. Contact our sales team for personalized solutions.
1x2 PLC Splitter SCA / FTTH Blockless Mini Splitter 1*2 0.9mm 1.5m G657 Fiber SCAPC Connector
