ABS Box Type Fiber Optic Splitter PLC 1*4 1x4 1:4 SCAPC connector 1.0mm 1.0m SM G657A1
ABS Box Type Fiber Optic Splitter PLC 1*4 1x4 1:4 SCAPC connector 1.0mm 1.0m SM G657A1
ABS Box Type Fiber Optic Splitter PLC 1*4 1x4 1:4 SCAPC connector 1.0mm 1.0m SM G657A1
ABS Box Type Fiber Optic Splitter PLC 1*4 1x4 1:4 SCAPC connector 1.0mm 1.0m SM G657A1
Specifications
Model Number :
KCO-ABS-1x4-2.0-1.5M-SCA
Connector color :
Green
MOQ :
Negotiation
Delivery Time :
2~5 days
P/N :
KCO-ABS-1x4-2.0-1.5M-SCA
Price :
Negotiation
Splitter type :
1*4, 1x4, 1:4
Certification :
ISO9001, RoHS
Payment Terms :
Western Union,T/T,L/C
Pigtail Length :
1.0m, 1.5m
Cable Dia. :
2.0mm
Connector :
SC/APC
Supply Ability :
100,000 set/ month
Package type :
mini plc splitter
Brand Name :
KCO, Kocent Optec Limited
Pigtail Color :
Yellow
Packaging Details :
Carton box, wooden pallet
Place of Origin :
Guangdong, China
Description
ABS Box Type Fiber Optic Splitter PLC 1*4 1x4 1:4 SCAPC connector 1.0mm 1.0m SM G657A1
Product Overview
- Fiber Optic Splitter PLC (Planar Lightwave Circuit) is a passive optical power management component, used to split a single (or double) incoming fiber optic light beam into multiple output paths uniformly.
- 1x4 Fiber Optic Splitter PLC is a passive optical device used to uniformly divide one single mode fiber optic input into four identical outputs.
- It is used to divide a single incoming optical signal into two identical, separate outputs. It is a foundational component in modern fiber-optic communication, designed to expand network reach without adding active, powered electronic components.
- Technical Data:
+ Split Configuration: Symmetrical (each of the 4 ports receives exactly 25% of the split optical power).
+ Insertion Loss (IL): ≤7.3dB to ≤7.6dB
+ Polarization Dependent Loss (PDL): ≤0.2dB.
+ Fiber Compatibility: Singlemode G.657A1 bend-insensitive fiber.

Key Features
  • Uniform Power Splitting
  • Wide Operating Wavelength
  • High Thermal Stability
  • Low Insertion & High Return Loss
  • Ultra-Low Polarization Dependent Loss (PDL)
  • Bend-Insensitive Fiber Core
  • Completely Passive Design

Technical Specifications
Parameter Specification
Configuration Type 1x4, 1:4, 1*4
Fiber Type G.657A1
Pigtail Diameter 2.0mm
Pigtail Length 1.5m input / 1.5m output
Connector Type SC/APC
Loose tube color yellow
MNF Kocent Optec Limited
Orgin Guangdong, China.

Applications
  • FTTx networks (FTTB, FTTH, FTTC)
  • Passive optical networks (PON)
  • CATV systems
  • Local area networks (LAN)
  • Test and measurement equipment
  • DWDM and CWDM systems

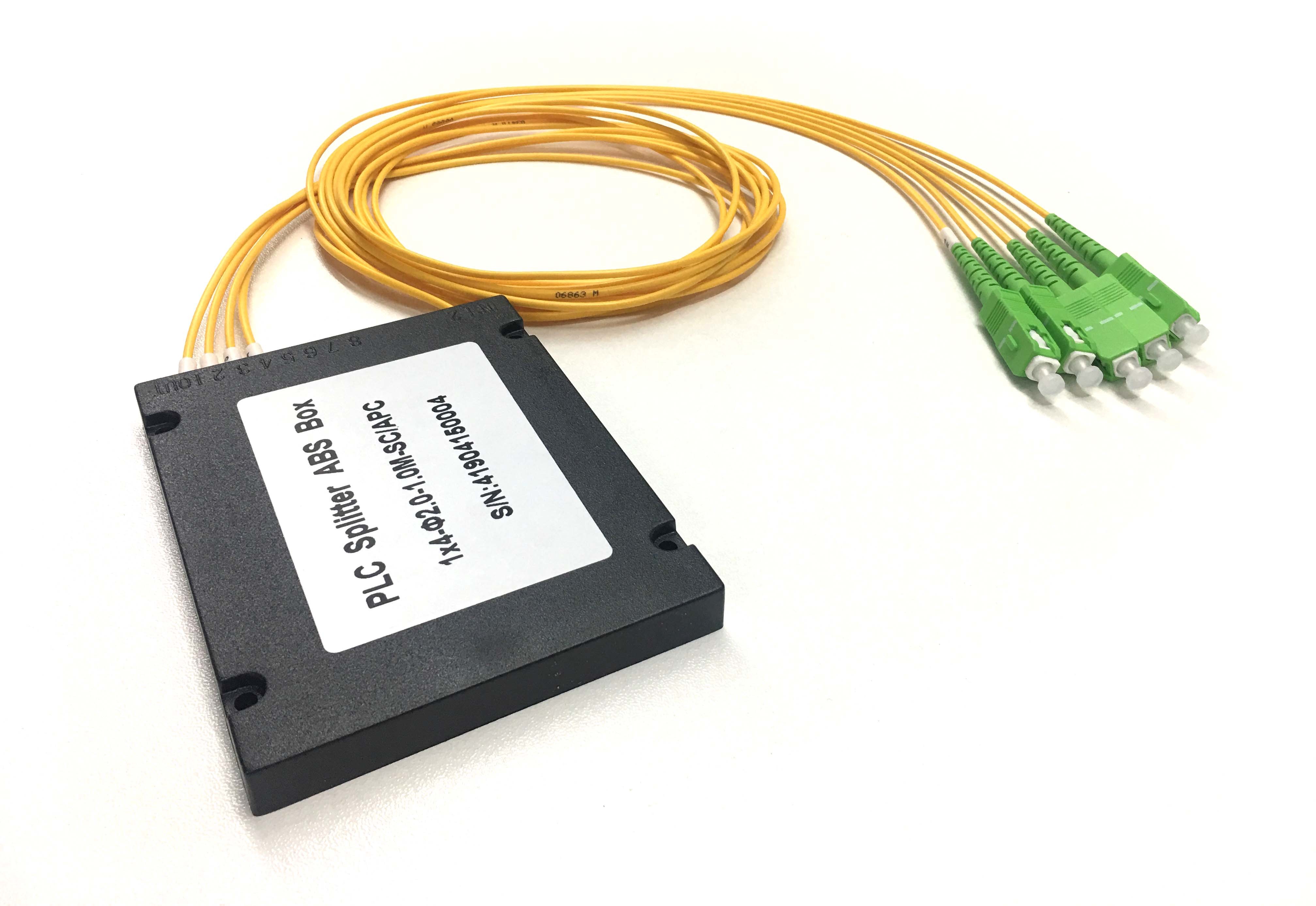

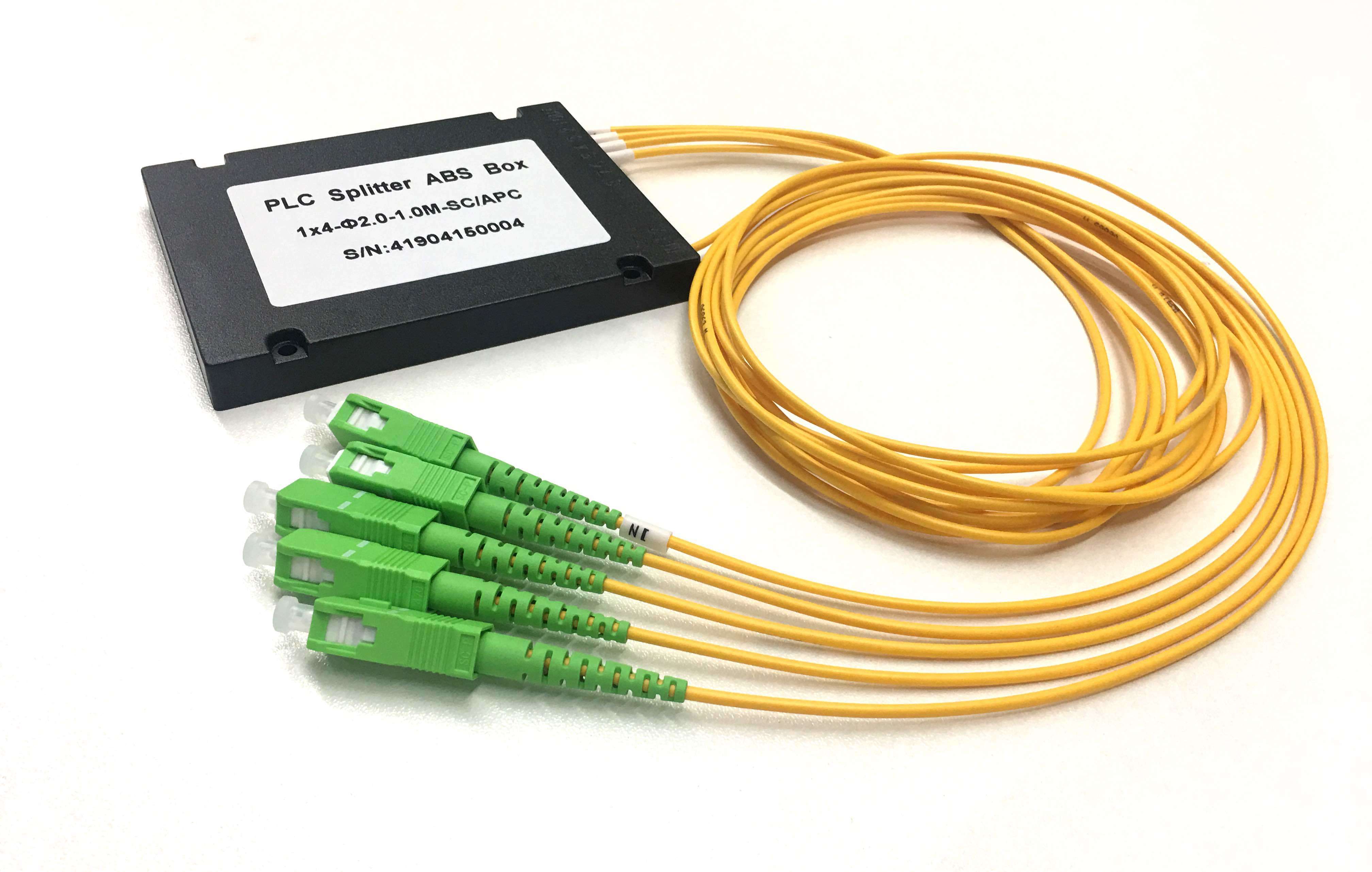

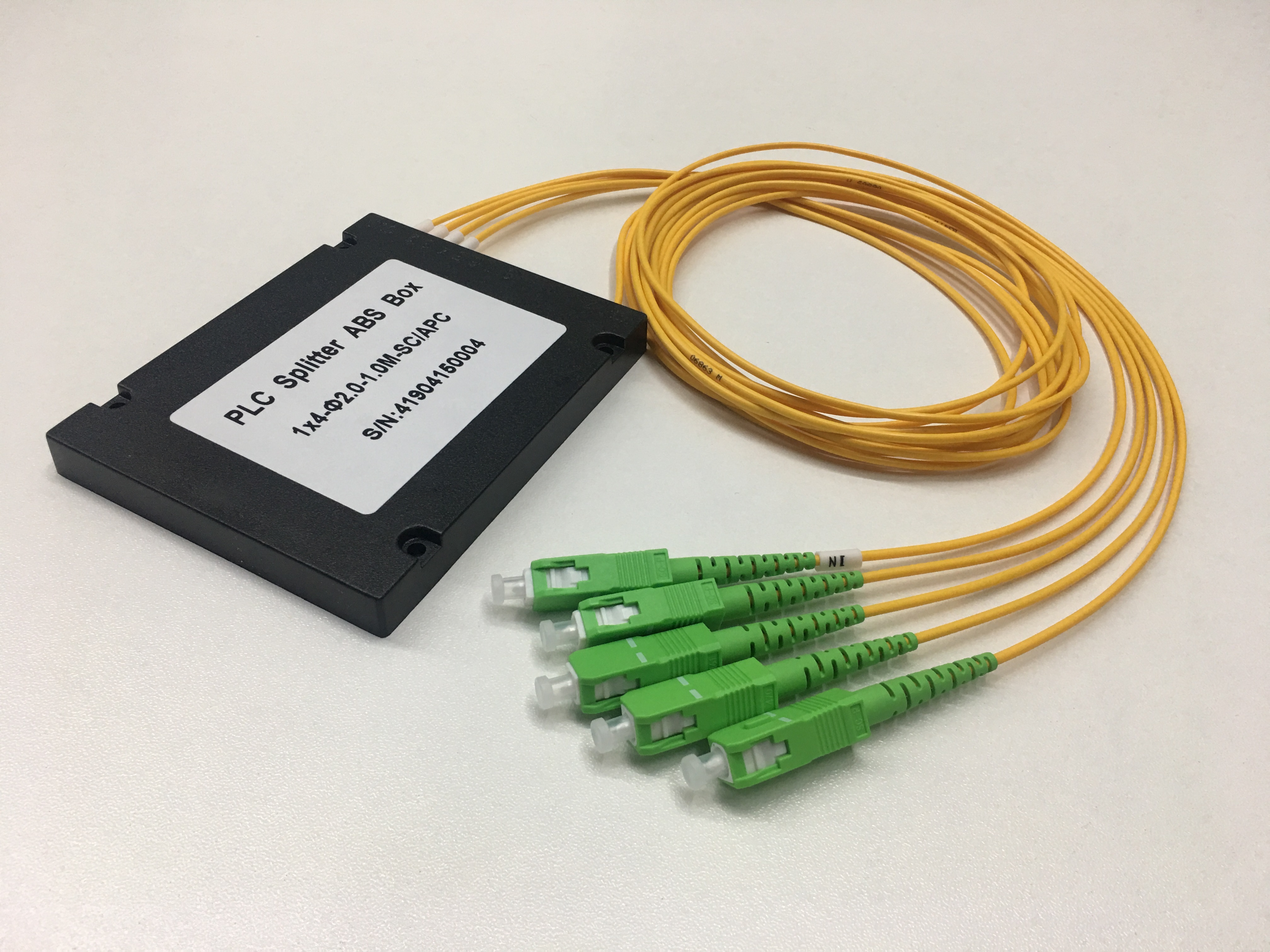

Product Images
Packaging & Shipping
  • Standard export packing (carton box, wooden box, pallet)
  • Shipping options: Express (DHL, UPS, TNT), Air freight, Sea freight
  • Export ports: Shenzhen, Hongkong, Ningbo
  • Export airports: Shenzhen, Hongkong, Hangzhou, Shanghai

OEM/ODM Services
Custom branding available for cables, packaging, labels, and other components. Contact our sales team for personalized solutions.
