19'' 144 Core Fiber Optic Distribution Box with Steel Material for Secure Fiber Protection
19'' 144 Core Fiber Optic Distribution Box with Steel Material for Secure Fiber Protection
19'' 144 Core Fiber Optic Distribution Box with Steel Material for Secure Fiber Protection
19'' 144 Core Fiber Optic Distribution Box with Steel Material for Secure Fiber Protection
19'' 144 Core Fiber Optic Distribution Box with Steel Material for Secure Fiber Protection
19'' 144 Core Fiber Optic Distribution Box with Steel Material for Secure Fiber Protection
Specifications
Brand Name :
KCO, Kocent Optec Limited
Model Number :
KCO-ODFU-144
Certification :
ISO9001
Place of Origin :
Guangdong, China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
Western Union,T/T,L/C
Supply Ability :
20,000 pcs/ month
Delivery Time :
7~14 days after get payment
Packaging Details :
carton box, wooden pallet
Connector :
SC, FC, ST, LC, E2000, etc
Application :
19' fiber optic distribution frame
Capacity :
144 fibers
Type :
Distribution Unit
Material :
Steel
Thickness :
1.0mm
Description
144core ODF Unit / 144fo Fiber Optic Patch Panel / 144fiber 19'' Optical Distribution Box For Cabinet
Description:
  • ODF Unit is specially designed for optical fiber communication equipment room.
  • It has the function of cable fixation, protecting fiber cable terminating, wiring, distribution and protection of fiber cores and pigtails.
  • Metal plate unit box structure, beautiful appearance
  • 19"standard installation has good versatility.
  • Complete modular design and front operation.
  • The unit box integrates fiber fusion, splicing, wiring, distribution, into one every single splice tray can be pulled out separately, satisfying the operation in or out of the box.
Feature:
  • The full configuration of it includes an integrated tray, with cable fiber and pigtail fiber fusion protection, fiber connector plug adjustment, and transmission line marking function.
  • Supporting accessing optical cable grounding unit, with optical cable introduction fixed protection, optical cable metal and frame insulation, high voltage protective grounding function
  • It is especially suitable for the wiring connection between optical cable and optical communication equipment or between optical communication equipment in industry cabinet or communication cabinet;Used in indoor or outdoor watertight environment.
  • With cold-roll steel box, splicing unit, distribution unit and panel
  • Various panel plate to fit different adapter interface
  • Adapters can be installed: FC, SC, ST, LC
Function & application
  • Pigtail + adaptor terminating type ODF patch e Supporting high-performance optical cable grounding unit - panel,can support 12 ST/SC/FC pigtails fusing, 12 optical cable clamp splitter, integrating optical cable grounding ST/SC/FC adaptors terminating or 24 LC pigtails and high voltage protection functions in one fusing +12 duplex LC adaptors terminating.
  • Supporting accessing optical cable grounding unit, with optical cable introduction fixed protection, optical cable metal and frame insulation, high voltage protective grounding function
  • The full configuration of it includes an integrated tray, with cable fiber and pigtail fiber fusion protection, fiber connector plug adjustment, and transmission line marking function.
  • It is especially suitable for the wiring connection between optical cable and optical communication equipment or between optical communication equipment in industry cabinet or communication cabinet;Used in indoor or outdoor watertight environment.
Dimension:
P/N Capacity Dimension Weight
KCO-ODFU-12 12 cores 485x300x45mm 3.9kg
KCO-ODFU-24 24 cores 485x300x75mm 4.7kg
KCO-ODFU-48 48 cores 485x300x140mm 6.9kh
KCO-ODFU-72 72 cores 485x300x198mm 9.2kg
KCO-ODFU-96 96 cores 485x300x252mm 11kg
KCO-ODFU-144 144 cores 485x300x340mm 14kg

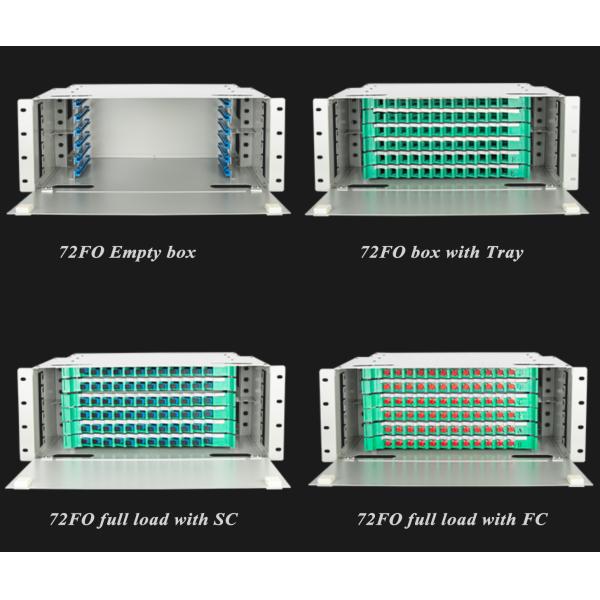

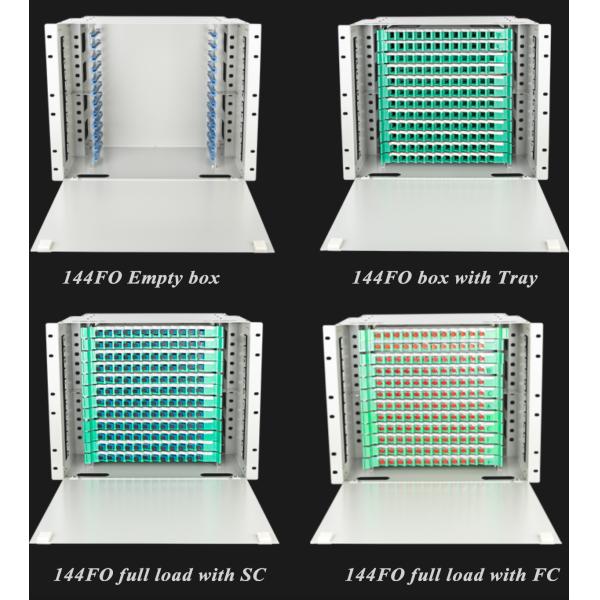

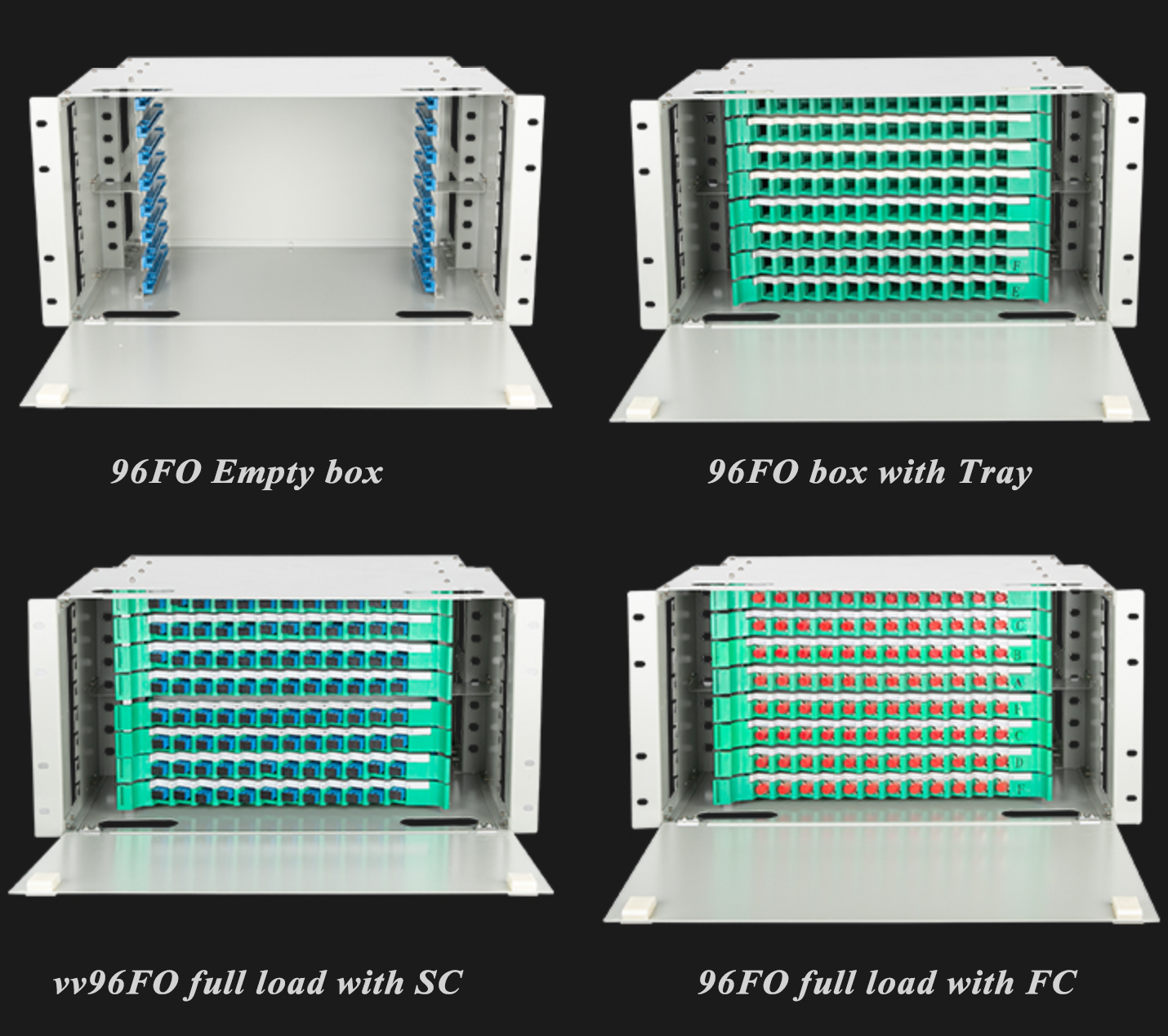

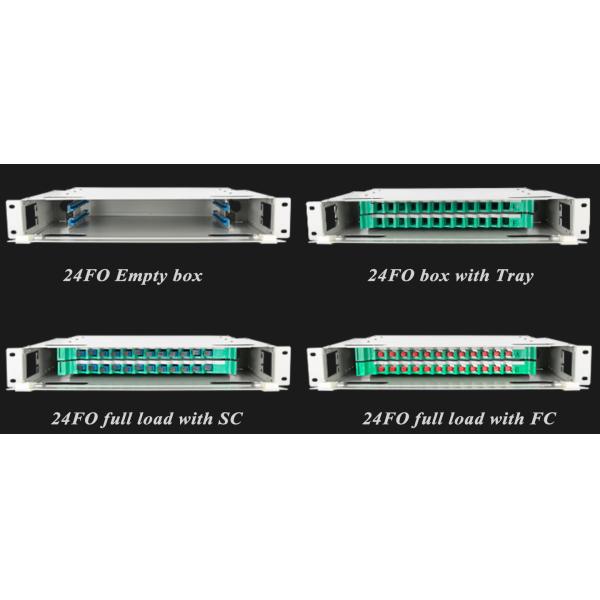

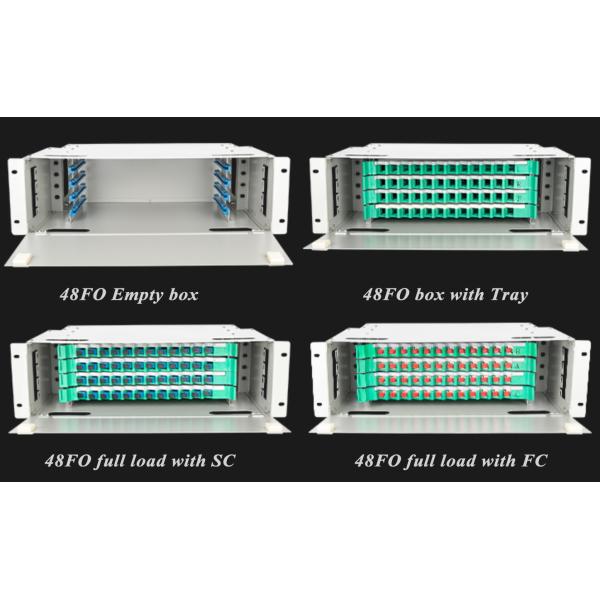

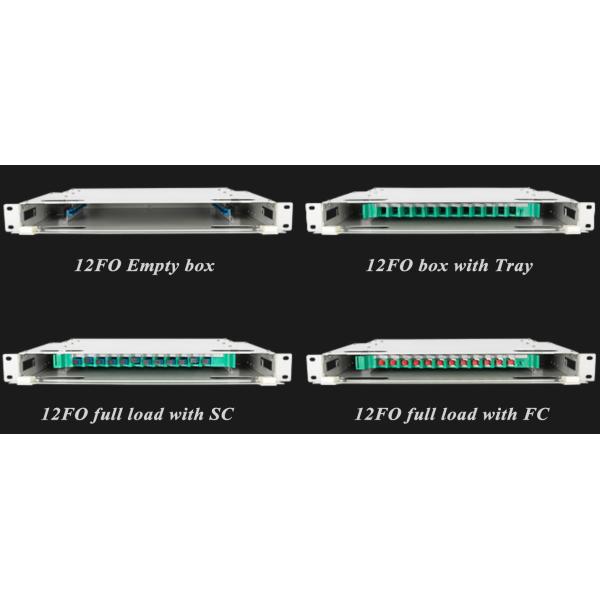

Product pictures:
19'' 144 Core Fiber Optic Distribution Box with Steel Material for Secure Fiber Protection 19'' 144 Core Fiber Optic Distribution Box with Steel Material for Secure Fiber Protection 19'' 144 Core Fiber Optic Distribution Box with Steel Material for Secure Fiber Protection 19'' 144 Core Fiber Optic Distribution Box with Steel Material for Secure Fiber Protection 19'' 144 Core Fiber Optic Distribution Box with Steel Material for Secure Fiber Protection 19'' 144 Core Fiber Optic Distribution Box with Steel Material for Secure Fiber Protection
Operating Conditions:
  • Temperature: -45°C ~ +85°C
  • Relative humidity: ≤85%(+30°C)
  • Atmospheric pressure: 70KPa~106KPa
Qualification:
  • Nominal work wave-length: 850nm,1310nm,1550nm
  • Connectors loss: ≤0.2dB
  • Insert loss: ≤0.2dB
  • Return loss: >=50dB(UPC),>=60dB(APC)
  • Insulation resistance (between frame and protection grounding): >1000MΩ/500V(DC)
ODF Unit series:
19'' 144 Core Fiber Optic Distribution Box with Steel Material for Secure Fiber Protection

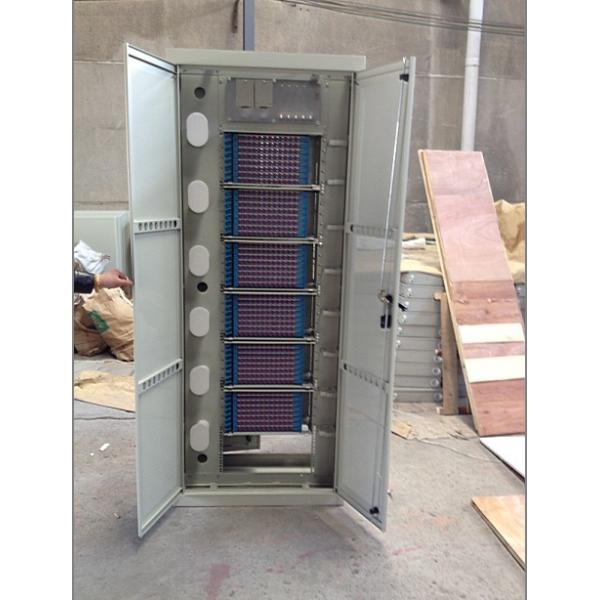

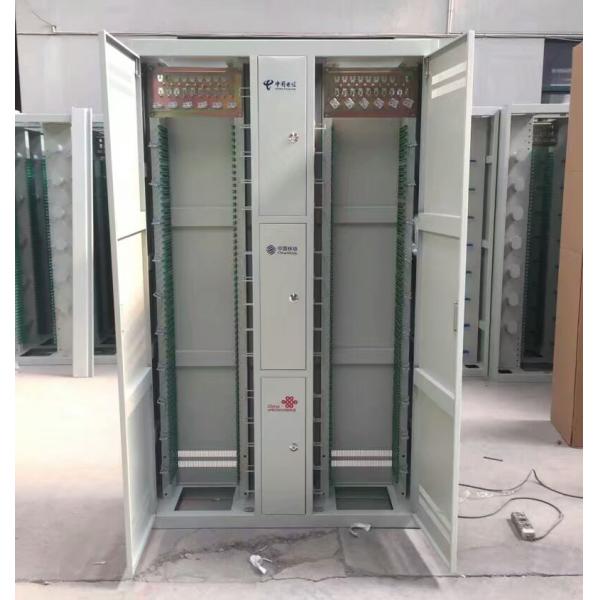

ODF Cabinet:
19'' 144 Core Fiber Optic Distribution Box with Steel Material for Secure Fiber Protection 19'' 144 Core Fiber Optic Distribution Box with Steel Material for Secure Fiber Protection
OEM/ODM Service:
  • If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.
Packing:
  • According to Stardard Export Packing.
  • Carton box, wooden box, wooden pallet.
Shipping:
  • International express such as UPS, TNT, DHL, etc
  • Internatioal air: CA, AA, EA, etc
  • By sea
  • Standard export sea port: Shenzhen, Hongkong, Ningbo
  • Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
