IP67 Outdoor Waterproof Mini SC APC UPC Fiber Optic Adapter for FTTA FTTH Applications
IP67 Outdoor Waterproof Mini SC APC UPC Fiber Optic Adapter for FTTA FTTH Applications
IP67 Outdoor Waterproof Mini SC APC UPC Fiber Optic Adapter for FTTA FTTH Applications
IP67 Outdoor Waterproof Mini SC APC UPC Fiber Optic Adapter for FTTA FTTH Applications
IP67 Outdoor Waterproof Mini SC APC UPC Fiber Optic Adapter for FTTA FTTH Applications
IP67 Outdoor Waterproof Mini SC APC UPC Fiber Optic Adapter for FTTA FTTH Applications
Specifications
Brand Name :
KCO
Model Number :
KCO-ADT-HW-SCA/U
Certification :
ISO9001, RoHS
Place of Origin :
Guangdong, China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
Western Union,T/T,L/C
Delivery Time :
2~5 days after get payment
Packaging Details :
PE bag, carton box, wooden roll
P/N :
KCO-ADT-HW-SCA/U
Application :
Outdoor
Protection Level :
IP67
Insertion loss :
0.2dB
Return Loss :
55dB
Cover :
Plastic
Color :
Black
Connector :
SC type (APC, UPC, PC)
Description
IP67 Outdoor Water Proof Fiber Optic Adapter Mini SC APC UPC Waterproof Socket
Mini SC Panel APC UPC Water-Proof IP67 Fiber Optic Adapter For FTTA FTTH
Introduction
Kocent Optec Limited is a leading manufacturer of outdoor field fiber optic patch cords, specializing in waterproof connectors including Fullaxs Connector, Connector, PDLC, and ODVA. With over 10 years of production experience, we supply standard telecom and broadcast television grade patch cords, all tested before shipment. We offer OEM and ODM services.
Mini SC assemblies provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity. The H connector end incorporates an SC/APC type connection within a slim, sealed, threaded polymer housing for easy connection to multi-port terminals or in-line extension receptacles. The SC/APC and SC/UPC connectors mate to standard adapters for FTTX applications.
Characteristics
  • Low insertion loss and back reflection loss
  • Good exchangeability
  • Good durability
  • High temperature stability
  • Precise connector
  • Excellent mechanical capability
Technical Parameters
  • Connector type: LC/UPC, SC/UPC, FC/UPC, ST/UPC, LC/APC, SC/APC, FC/APC, ST/APC
  • Insertion Loss: ≤0.2dB / ≤0.3dB
  • Return Loss: ≥50dB / ≥60dB
  • Fiber type: Single-mode (G652D, G655, G657A1, G657A2, G657B3) / Multi-mode (OM1, OM2, OM3, OM4, OM5)
  • Operating wavelength: 1310nm, 1550nm, 850nm, 1490um
  • Test wavelength: 1310nm, 1550nm
  • Repeatability: ≤0.1dN
  • Interchangeability: ≤0.2dB
  • Durability: ≤0.2dB
  • Length and tolerance: 10cm
  • Operating Temperature: -40°C to +85°C
  • Storage Temperature: -40°C to +85°C
Product Images

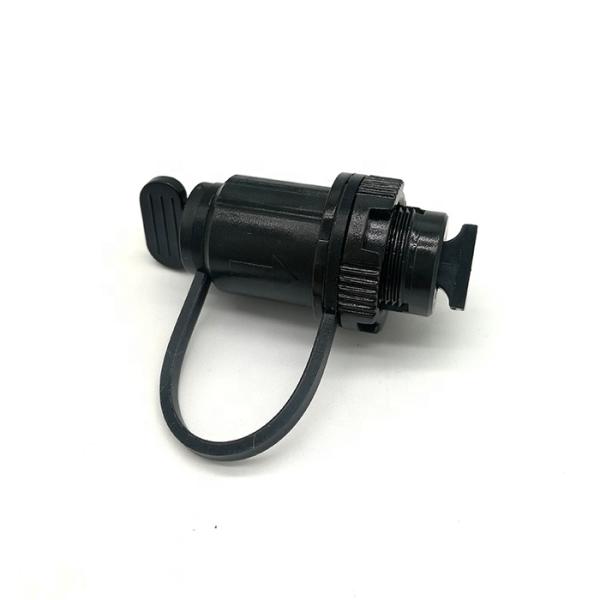

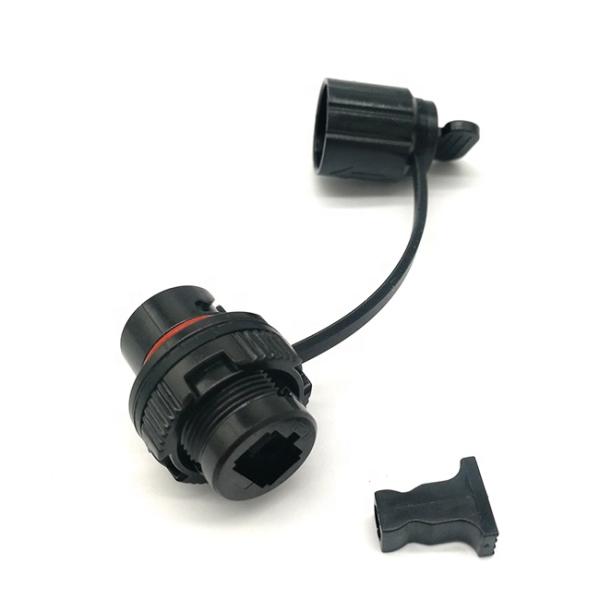

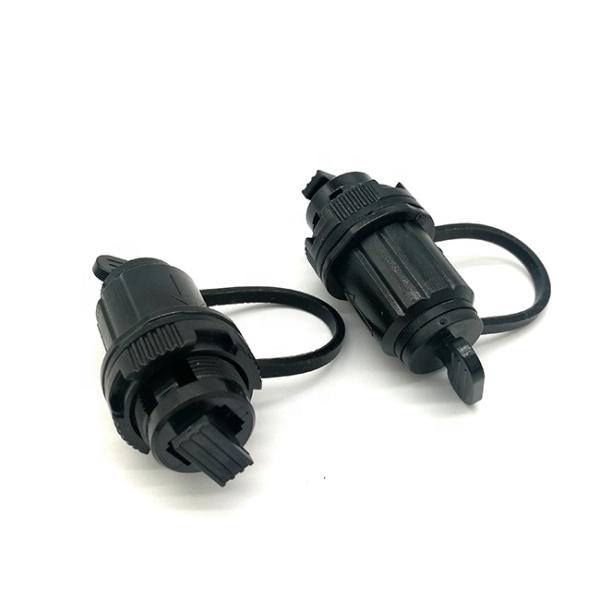

IP67 Outdoor Waterproof Mini SC APC UPC Fiber Optic Adapter for FTTA FTTH Applications IP67 Outdoor Waterproof Mini SC APC UPC Fiber Optic Adapter for FTTA FTTH Applications IP67 Outdoor Waterproof Mini SC APC UPC Fiber Optic Adapter for FTTA FTTH Applications
Key Features
  • Compliant with IEC, Telcordia-GR-326-Core standards
  • Available in different sizes and color boot options
  • Low insertion loss and high return loss
  • 100% interferometer measurement
Applications
  • Telecommunication networks
  • Local area networks
  • CATV systems
  • Active device termination
  • Data center system networks
  • PON (Passive Optical Network)
  • applications
  • Performance installations
Patch Cord Specifications
Parameters Standard Fiber Cable Assemblies
Connector Side A: SC with armored
Side B: LC, SC, ST, FC, MPO/MTP, ODVA connector, DLC(duplex LC), NSN, Ericson, Huawei
Fiber count 2 cores, 4 cores, 6 cores, 8 cores, 12 cores
Fiber Type SM: G.652D, G.657A (A1, A2, B3)
MM: OM1, OM2, OM3, OM4, OM5
Jacket Materials LSZH, TPU, PE
Cable diameter 4.8mm, 5.0mm, 5.5mm, 6.0mm, 6.5mm, 7.0mm
Testing Wavelengths SM: 1310±30nm, 1550±30nm
MM: 850±30nm, 1300±30nm
Insertion Loss(dB) TIA/EIA-455-107 ≤ 0.3dB(PC/UPC/APC)
≤ 0.3dB(UPC)
Return Loss(dB) TIA/EIA-455-107 ≥45dB (PC/UPC)
≥55dB (APC)
≥35dB (UPC)
Exchange ability ≤ 0.2dB
Cable Assemblies Pigtail/ Simplex/ Duplex/ Fan-out Patch cord/ Branch out patch cord
Operating Temperature -14℃ to +85℃
Storage Temperature -40℃ to +85℃
OEM/ODM Service
We offer custom branding options for cables, packaging, labels, and other components through our OEM and ODM services.
IP67 Outdoor Waterproof Mini SC APC UPC Fiber Optic Adapter for FTTA FTTH Applications
Packing & Shipping
Standard export packing options include carton boxes, wooden boxes, and wooden pallets. Shipping methods:
  • International express: UPS, TNT, DHL
  • International air: CA, AA, EA
  • Sea freight
IP67 Outdoor Waterproof Mini SC APC UPC Fiber Optic Adapter for FTTA FTTH Applications
