2*3mm SC/APC Fiber Optic Fast Connector with 0.2dB Insertion Loss and 55dB Return Loss for FTTH Solutions
2*3mm SC/APC Fiber Optic Fast Connector with 0.2dB Insertion Loss and 55dB Return Loss for FTTH Solutions
2*3mm SC/APC Fiber Optic Fast Connector with 0.2dB Insertion Loss and 55dB Return Loss for FTTH Solutions
2*3mm SC/APC Fiber Optic Fast Connector with 0.2dB Insertion Loss and 55dB Return Loss for FTTH Solutions
2*3mm SC/APC Fiber Optic Fast Connector with 0.2dB Insertion Loss and 55dB Return Loss for FTTH Solutions
2*3mm SC/APC Fiber Optic Fast Connector with 0.2dB Insertion Loss and 55dB Return Loss for FTTH Solutions
Specifications
Brand Name :
KCO
Model Number :
FAST-55/60-SC-APC
Certification :
ISO9001, RoHS
Place of Origin :
Guangdong, China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
Western Union,T/T,L/C
Supply Ability :
350,000pcs/month
Delivery Time :
2~5 days after get payment

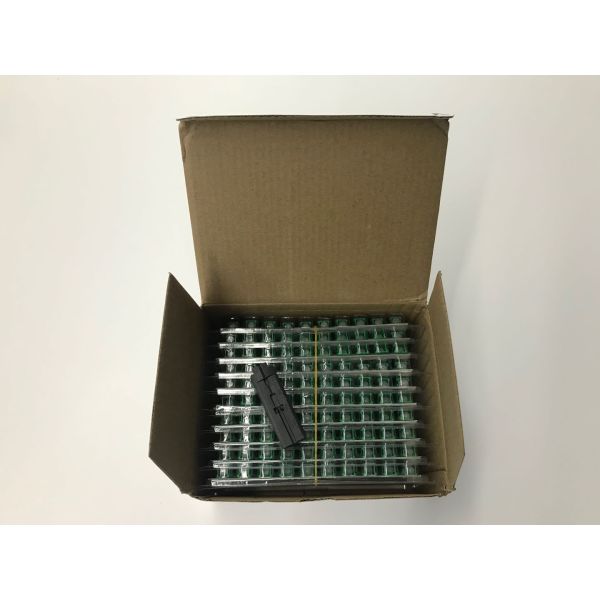

Packaging Details :
PE bag, carton box, wooden pallet
Type :
FAST SC/APC
Color :
Blue, White, gray , black
Insertion loss :
0.2dB
Return loss :
55dB
Tensile Strengh :
50 N
Length :
55mm, 60mm
Description
2×3mm Fast Quick Connector SC/APC 50N Tensile Strength FTTH Solution

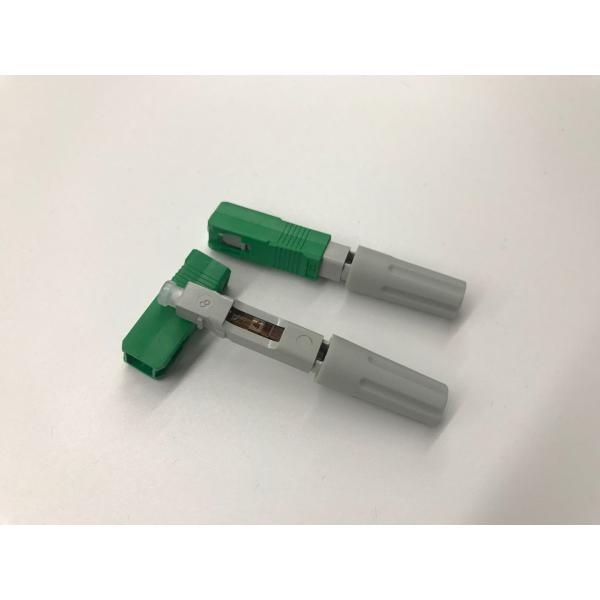

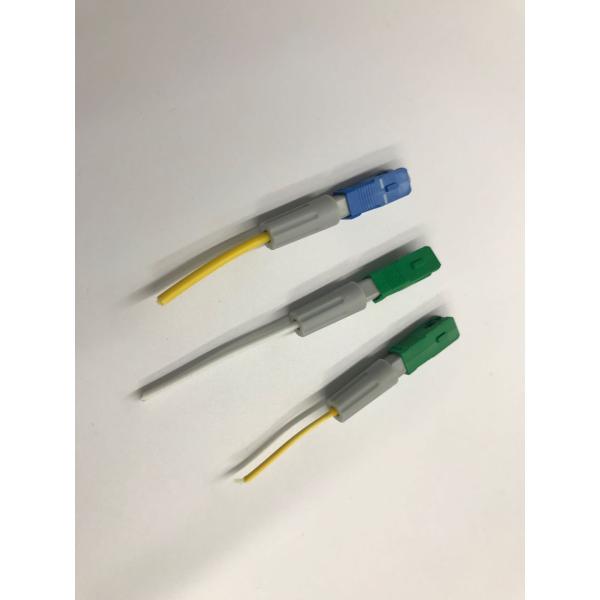

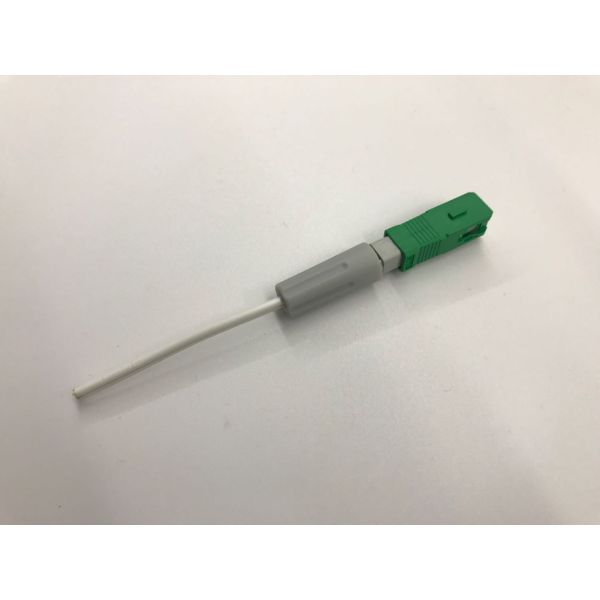

FTTH Solution Product SC/APC Fast Connector is a quick connector designed for 2.0mm and 3.0mm fiber optic cables. This field-assembled optical fiber connector is widely used in Fiber to the Home (FTTH) access optical networks for rapid drop cable assembly.
Product Features
  • Factory-polished twin end-face of pre-embedded fiber
  • Fiber alignment in V-groove through ceramic ferrule
  • Side cover design preserves matching liquid completely
  • Ceramic ferrule with pre-embedded fiber polished to APC
  • Controllable FTTH cable length
  • Simple tooling, easy operation, portable style and reusable design
  • Standard connector size: 49.5×7×6mm (55mm) or custom sizes available
Key Advantages
  • No special assembling tools required
  • Easy mechanical splice assembly with no polishing needed
  • Quick learning curve (assembly within 1.5 minutes)
  • Removable and reusable features minimize defect rates
2*3mm SC/APC Fiber Optic Fast Connector with 0.2dB Insertion Loss and 55dB Return Loss for FTTH Solutions 2*3mm SC/APC Fiber Optic Fast Connector with 0.2dB Insertion Loss and 55dB Return Loss for FTTH Solutions
Applications
  • CATV systems
  • Telecommunication networks
  • Test equipment
  • Local Area Networks (LANs)
  • Data processing networks
  • Industrial and applications
Technical Specifications
Item Parameter
Cable Scope 3.0 × 2.0 mm & 3.0mm & 2.0mm
Fiber Diameter 125μm (652 & 657)
Coating Diameter 250μm
Mode SM
Operation Time ≈15s (excluding fiber presetting)
Insertion Loss ≤ 0.25dB (1310nm & 1550nm)
Return Loss ≤ -45dB
Success Rate >98%
Reusable Times >10 times
Tensile Strength >5 N
Tighten Strength of Coating >50 N
Temperature Range -40 to +85°C
