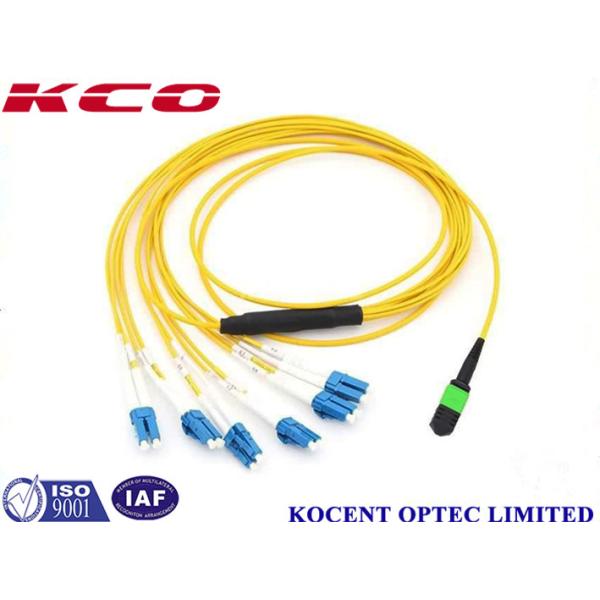

MTP APC to LC / MPO MTP Trunk Patch Cord Jumper Cable 1260~1650nm Wave Length Apply For CATV
MTP APC to LC / MPO MTP Trunk Patch Cord Jumper Cable 1260~1650nm Wave Length Apply For CATV
MTP APC to LC / MPO MTP Trunk Patch Cord Jumper Cable 1260~1650nm Wave Length Apply For CATV
MTP APC to LC / MPO MTP Trunk Patch Cord Jumper Cable 1260~1650nm Wave Length Apply For CATV
MTP APC to LC / MPO MTP Trunk Patch Cord Jumper Cable 1260~1650nm Wave Length Apply For CATV
MTP APC to LC / MPO MTP Trunk Patch Cord Jumper Cable 1260~1650nm Wave Length Apply For CATV
Specifications
Brand Name :
KCO
Model Number :
MPO
Certification :
RoHS, ISO9001
Place of Origin :
Guangdong, China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
Western Union,T/T,L/C
Supply Ability :
50,000pcs/month
Delivery Time :
2~7 days after get payment
Packaging Details :
PE bag, carton box, wooden pallet
Connector 1 :
MPO
Connector 2 :
MPO, LC, SC, FC, ST
Fiber :
8, 12, 24 fibers
Insertion loss :
0.35dB
Return Loss :
60dB
Wave length :
1260~1650nm
Description
MTP APC to LC / MPO MTP Trunk Patch Cord Jumper Cable 1260~1650nm Wave Length Apply For CATV
Product detail:
  • Connector side A: MPO, MTP
  • Connector side B: MPO, MTP, FC, LC, ST, SC, E2000, MTRJ, ...
  • Cable fiber count: 8 cores, 12 cores, 24 cores, ...
  • Cable diameter: 2.0mm, 3.0mm, ...
  • Cable Length: customized
  • Fan-out kits: available
  • Break-out kits: available
  • Cable sheath: PVC, LSZH, TPU, ...
Applications:
  • Apply for CATV, LAN, Telecom network, test equipment
  • CATV
  • Telecommunication networks
  • Active device termination
  • Metro
  • Local Area Networks(LANs)
  • Test equipment
  • Premise installations
Features:
  • Various connector types available
  • Low insertion loss and back reflection loss
  • Good exchangeability
  • Good Durability
  • High temperature stability
  • Standard: Telcordia GR-326-CORE
Descriptions:

The single-mode and multimode MPO products are multi fiber connectors used in high-density backplane and Printed Circuit Board(PCB) applications in data and telecommunications system. The MPO connector offers up to 12 times the density of standard connectors, providing significant space and cost savings.

MPO patch cord utilize precision molded MT ferrules, with metal guide pins and precise housing dimensions to ensure fiber alignment when mating. The MPO can be mass terminated in combination of 4,8,12 or 24 fibers.

MTP/MPO multi-fiber trunk cables are usually in mini-round cables and ribbon cables, with fanout kits broken down into 2~24 fiber 0.9mm or 2.0mm tails with connector LC, SC, ST, FC, etc.

Cable total length, fanout length, connector type are customized.

Specifications:
Type Single Mode Single Mode Multi Mode

(APC Polish) (UPC Polish) (PC Polish)
Fiber Count 8,12,24 etc. 8,12,24 etc. 8,12,24 etc.
Fiber Type G652D,G657A1 etc. G652D,G657A1 etc. OM1,OM2,OM3 etc.
Max. Insertion Loss Elite Standard Elite Standard Elite Standard

Low Loss
Low Loss
Low Loss

≤0.35 dB ≤0.75dB ≤0.35 dB ≤0.75dB ≤0.35 dB ≤0.60dB
Return Loss ≥60 dB ≥60 dB NA
Durability ≥500 times ≥500 times ≥500 times
Operating Temperature -40℃~+80℃ -40℃~+80℃ -40℃~+80℃
Test Wavelength 1310nm 1310nm 1310nm
Insert-pull test 1000 times＜0.5 dB
Interchange ＜0.5 dB
Anti-tensile force 15kgf
Product Construction:

A: MPO connectot

L: Total length

L1: Fanout length

B: Connector ( FC, LC, ST, SC, ...)

Products Photo:

Ordering Informations:

MPO/PC–MPO/PC-SM-12CORE–2M-LSZH

Notices:

  1. Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
  2. Ferrule End-face: PC, UPC, APC
  3. Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
  4. Fiber Quantity: 4 core, 8 core, 12 core, 24 core
  5. Cable Length: 1, 2, 3 meter or customized
  6. Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum
OEM/ODM Service:

If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:

According to Stardard Export Packing.

Carton box, wooden box, wooden pallet.

Shipping:
  • International express such as UPS, TNT, DHL, etc
  • Internatioal air: CA, AA, EA, etc
  • By sea
