Green 2.0mm 3.0mm FTTX SC APC Field Installable Fiber Optic Fast Connector with 0.2dB Insertion Loss
Green 2.0mm 3.0mm FTTX SC APC Field Installable Fiber Optic Fast Connector with 0.2dB Insertion Loss
Green 2.0mm 3.0mm FTTX SC APC Field Installable Fiber Optic Fast Connector with 0.2dB Insertion Loss
Green 2.0mm 3.0mm FTTX SC APC Field Installable Fiber Optic Fast Connector with 0.2dB Insertion Loss
Green 2.0mm 3.0mm FTTX SC APC Field Installable Fiber Optic Fast Connector with 0.2dB Insertion Loss
Green 2.0mm 3.0mm FTTX SC APC Field Installable Fiber Optic Fast Connector with 0.2dB Insertion Loss
Specifications
Brand Name :
KCO
Model Number :
FAST-55/60-SC-APC
Certification :
ISO9001, RoHS
Place of Origin :
Guangdong, China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
Western Union,T/T,L/C
Supply Ability :
100,000pcs/month
Delivery Time :
2~5 days after get payment
Packaging Details :
PE bag, carton box, wooden pallet
Type :
FAST SC
Color :
Green
Insertion loss :
0.2dB
Return loss :
55dB
Mode :
single mode, multi mode
Length :
55mm 60mm
Description
Green 2.0mm 3.0mm FTTX SC APC Field Installable Fiber Optic Fast Connector
Product Description

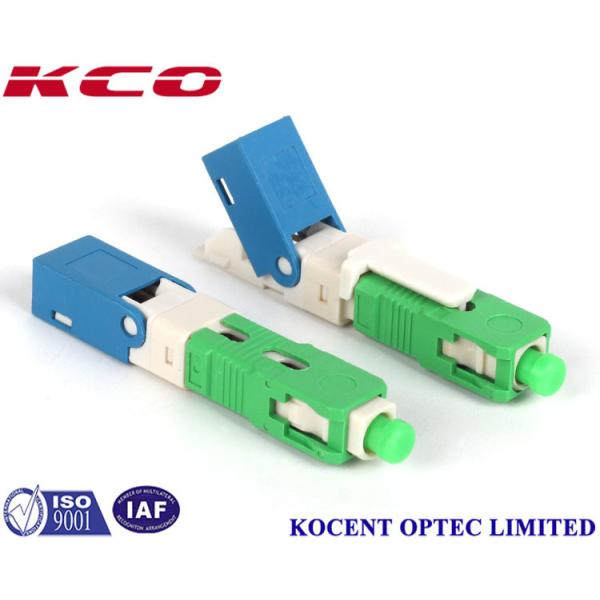

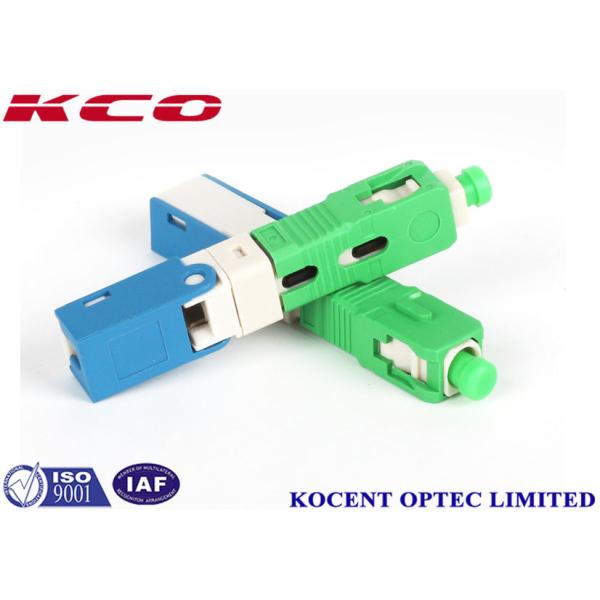

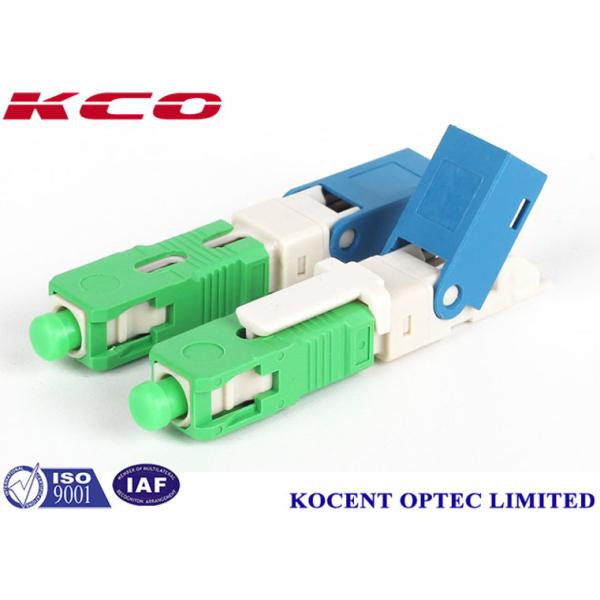

The Green 2.0mm/3.0mm FTTX SC/APC Quick Connector provides fast and easy fiber termination in the field. Designed for 900 micron applications, this connector enables installers to make connections quickly at equipment and fiber patch panels.

This innovative connector system eliminates the need for epoxy, adhesive, curing ovens, polishing, and fiber deface inspection, significantly streamlining the installation process.

Key Advantages
  • Factory-polished twin end-face of pre-embedded fiber
  • Fiber optics aligned in V-groove through ceramic ferrule
  • Side cover design preserves matching liquid completely
  • Ceramic ferrule with pre-embedded fiber polished to APC
  • Controllable FTTH cable length
  • Simple tooling, easy operation, portable and reusable design
Features
  • Quick and easy fiber termination in the field
  • No special assembling tools required
  • No epoxy or polishing needed
  • Minimized defect rate with removal and reusable features
  • Eliminates cable excess length and pigtail splice storage
Applications
  • CATV systems
  • Telecommunication networks
  • Local Area Networks (LANs)
  • Data processing networks
  • Industrial, Medical & applications
Specifications
Item Parameter
Cable Scope 3.0 x 2.0 mm Bow-type Drop Cable
Fiber Diameter 125μm (652 & 657)
Coating Diameter 250μm
Mode SM
Operation Time about 15s (exclude fiber presetting)
Insertion Loss ≤ 0.25dB (1310nm & 1550nm)
Return Loss ≤ -45dB
Success Rate >98%
Reusable Times >10 times
Tensile Strength >5 N
Tighten Strength of Coating >10 N
Temperature -40~+85°C
On-line Tensile Strength Test (20 N) IL ≤ 0.3dB
Mechanical Durability (500 times) IL ≤ 0.3dB
Drop Test (4m concrete floor, once each direction, three times total) IL ≤ 0.3dB
Green 2.0mm 3.0mm FTTX SC APC Field Installable Fiber Optic Fast Connector with 0.2dB Insertion Loss Green 2.0mm 3.0mm FTTX SC APC Field Installable Fiber Optic Fast Connector with 0.2dB Insertion Loss
OEM/ODM Service

We offer custom branding options for your logo on cables, packaging bags, labels, or any other visible location. Our OEM and ODM services are ready to accommodate your specific requirements.

Packing & Shipping

Packing: Standard export packing options including carton boxes, wooden boxes, and wooden pallets.

Shipping: Available via international express (UPS, TNT, DHL), international air (CA, AA, EA), or by sea.
