Ultra Low Insertion Loss Fiber Optic Patch Cord LSH SC/UPC Auto Shutter LSZH PVC FTTH
Ultra Low Insertion Loss Fiber Optic Patch Cord LSH SC/UPC Auto Shutter LSZH PVC FTTH
Ultra Low Insertion Loss Fiber Optic Patch Cord LSH SC/UPC Auto Shutter LSZH PVC FTTH
Ultra Low Insertion Loss Fiber Optic Patch Cord LSH SC/UPC Auto Shutter LSZH PVC FTTH
Ultra Low Insertion Loss Fiber Optic Patch Cord LSH SC/UPC Auto Shutter LSZH PVC FTTH
Ultra Low Insertion Loss Fiber Optic Patch Cord LSH SC/UPC Auto Shutter LSZH PVC FTTH
Specifications
Brand Name :
KCO
Model Number :
LSH-SC/UPC-SM-SX-xM-LSZH
Certification :
ISO9001, RoHS
Place of Origin :
Guangdong, China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
Western Union,T/T,L/C
Delivery Time :
2~5 days after get payment
Packaging Details :
PE bag, carton box, wooden roll
Connector :
LSH SC
Mode :
Single mode
Cover :
PVC, LSZH
Insertion loss :
0.2dB
Return Loss :
55dB
Diameter :
3.0mm
Length :
1.0m, 2.0m, 3.0m,4.0m
Core :
9/125
Description
Ultra Low Insertion Loss Fiber Optic Patch Cord
LSH SC/UPC Auto Shutter LSZH PVC FTTH
Product Overview
Ultra Low Insertion Loss LSH SC/UPC Auto Shutter Fiber Optic Patch Cord LSZH PVC FTTH
Kocent Optec Limited provides OEM service for all kinds of fiber optic patch cables, including common connector types: FC, LC, SC, ST, MT-RJ, E2000, MPO, MTP, ESCON, FDDI, DPLC, LC Uniboot, and SC Uniboot. Specializing in LSH SC and LSH LC fiber optic patch cords.
Ordering Options
  • Connector type: LSH SC/UPC
  • Ferrule End-face: UPC
  • Core Type: Multi Mode 62.5/125
  • Cable Diameter: φ3.0mm, φ2.0mm, φ0.9mm
  • Cable Length: 1, 2, 3, 5, 7, 10, 15 meters or customized
  • Cable type: PVC, LSZH
Key Features
  • Low insertion loss and high return loss
  • Strict quality control
  • High temperature stability
Applications
  • CATV
  • Active device termination
  • Telecommunication networks
  • Metro networks
  • Local Area Networks (LANs)
  • Data Processing networks
  • Test Equipment
  • Premise installations
  • Wide Area Networks (WANs)
Technical Specifications
Parameter Single Mode Multi Mode
Polish UPC, APC, PC -
Insertion Loss Typical ≤0.2dB, Maximum ≤0.3dB ≤0.25dB
Return Loss ≥50dB, ≥65dB, ≥35dB -
Interchangeability ≤0.2dB
Repeatability ≤0.1dB
Durability ≤0.2dB (1000 times mating)
Tensile Strength > 10kg
Temperature ≤0.2dB (-40°C to +85°C sustain 100 hours)
Humidity ≤0.2dB (+25°C to +65°C, 93% R.H. 100 hours)

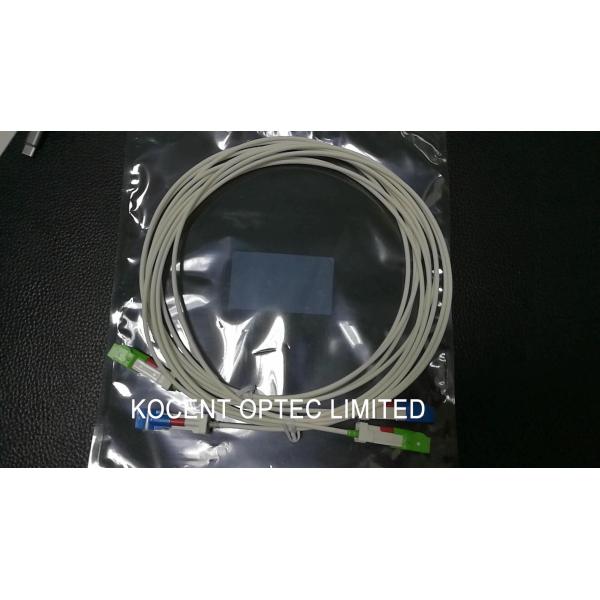

Product Image
Ultra Low Insertion Loss Fiber Optic Patch Cord LSH SC/UPC Auto Shutter LSZH PVC FTTH
Product Description
A patch cord is a fiber optic cable used to attach one device to another for signal routing. Normally, there are 4 types of connectors: FC, SC, LC, ST and 3 types of ferrules: PC, UPC, APC.
A fiber optic patch cord is a fiber optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch or other telecommunication equipment. Its thick layer of protection is used to connect the optical transmitter, receiver and the terminal box.
Patch cords are important and effective in networking. They provide interconnection between the optical transmission equipment and the patch panel in the wiring closet.
About fiber optic connectors, the ITU calls them a kind of passive light component which can connect two or more fiber lines stably but not always. They can make a close connection for fiber cable and ensure excellent transmission of light energy.
OEM/ODM Services
If you want to display your own brand LOGO on the goods such as cable, package bag, label or anywhere, we can accommodate your needs. Our OEM and ODM service is always ready to support your branding requirements.
Packaging
Standard Export Packaging:
  • Carton box
  • Wooden box
  • Wooden pallet
Shipping Methods
  • International express: UPS, TNT, DHL, etc.
  • International air: CA, AA, EA, etc.
  • By sea
