LC Duplex Fiber Optic Face Plate FTTH Fiber Optic Terminal Box
LC Duplex Fiber Optic Face Plate FTTH Fiber Optic Terminal Box
LC Duplex Fiber Optic Face Plate FTTH Fiber Optic Terminal Box
LC Duplex Fiber Optic Face Plate FTTH Fiber Optic Terminal Box
LC Duplex Fiber Optic Face Plate FTTH Fiber Optic Terminal Box
LC Duplex Fiber Optic Face Plate FTTH Fiber Optic Terminal Box
Specifications
Brand Name :
KCO, Kocent Optec Limited
Model Number :
KCO-FOFP-LCUD
Certification :
ISO9001
Place of Origin :
Guangdong, China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
Western Union,T/T,L/C
Supply Ability :
20,000 pcs/ month
Delivery Time :
7~14 days after get payment
Packaging Details :
carton box, wooden pallet
Material :
ABS, PC
Insertion loss :
0.15dB
Return loss :
55dB
Connector :
SC, FC, ST, LC, E2000, etc
Application :
indoor end user wall socket
Capacity :
LC duplex
Description
LC Duplex Fiber Optic Face Plate FTTH Fiber Optic Terminal Box
Description:

KCO-FOFP-LCUD is used in the end termination of residential buildings and villas, to fix and splice with pigtails.

It can be installed on wall, may adapt variety of optical connection styles, optical fiber can be managed effectively.

Quick Information:
Part number KCO-FOFP-LCUD
Size 80*80*15mm
Capacity 1 cores for SC, 2 cores for LC
Material Plastic ABS+PC
Cable indoor cable or FTTH cable
Cable diameter Max. 3.0mm
Adapter SC, LC, FC, ST, E2000, etc

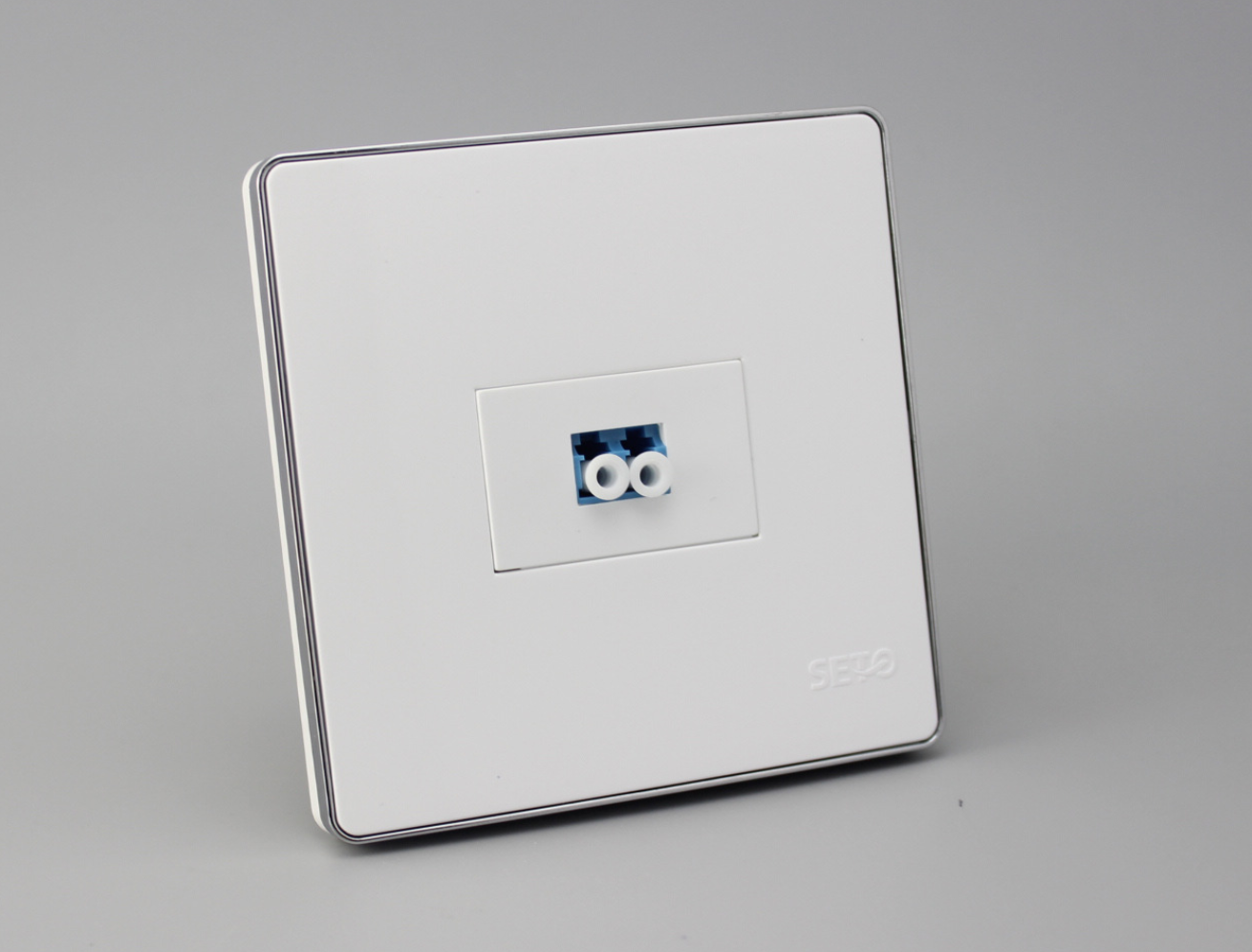

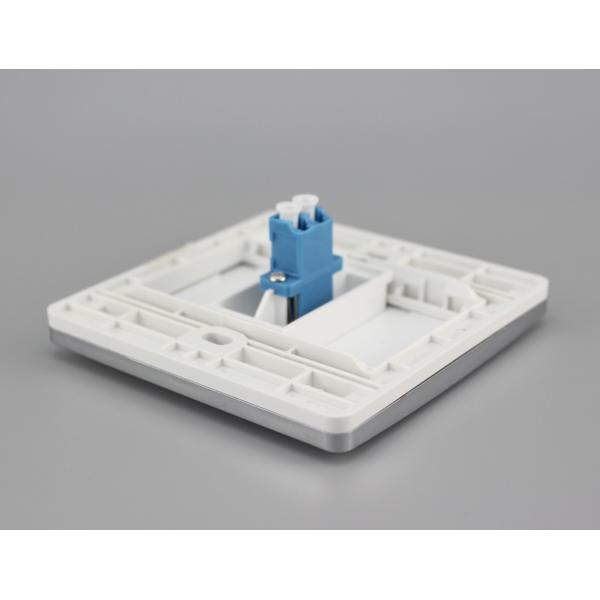

Product Photos:
LC Duplex Fiber Optic Face Plate FTTH Fiber Optic Terminal Box
LC Duplex Fiber Optic Face Plate FTTH Fiber Optic Terminal Box
Features:
  • It is composed of case body, fiber optical splice tray and adaptor fixing frame.
  • It is devised into two parts, one links with optical cables for fusion connection between optical cable and fiber pigtail and another links with patch cord.
  • Combine fusion and connection, surplus fiber holding, and patch cord holding in integration
  • Surplus fibers can be twisted around two special plastic rings, which ensure the bending radius is bigger than 40mm.
  • Adapter panel to fix adaptors which available for different types of adaptors, easy for operation and avoid any unexpected damage to fiber.
  • Cable can lead in from the bottom of the box, the entry is under the protection of special rubber parts.
Applications:
  • FTTH, FTTx, FTTB
  • LAN
  • Data centers
  • Local area network etc
Operating Conditions:
  • Temperature -45~+85
  • Relative humidity ≤85%(+30 C)
  • Atmospheric pressure 70KPa~106KPa
Qualification:
  • Nominal work wave-length:850nm,1310nm,1550nm
  • Connectors loss ≤0.2dB
  • Insert loss ≤0.2dB
  • Return loss >=50dB(UPC),>=60dB(APC)
  • Insulation resistance (between frame and protection
  • Grounding) >1000MΩ/500V(DC)
Parameters:
Type Indoor fiber optic face plate
P/N KCO-FOFP-LCUD
Size 80*80*15mm
Color White, grey
Capacity Max. 2 cores
Insert loss ≤ 0.2dB
Return loss 50dB (UPC), 60dB (APC)
Durability 1000 Mating
Wavelength 850nm,1310nm,1550nm
Operating temperature -25°C~+40°C
Storage temperature -25°C~+55°C
Relative humidity ≤85%(+30°C)
Air pressure 70Kpa~106Kpa
Connector SC, FC, LC, ST, etc
Cable 0.9mm~3.0mm
