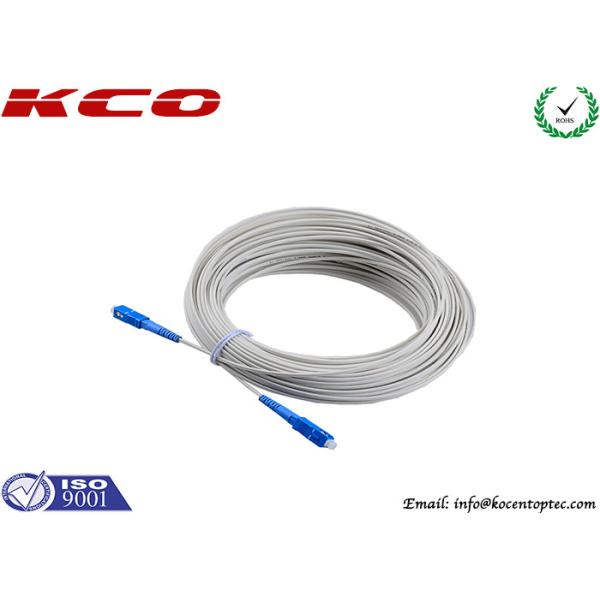

FTTH Drop Fiber Patch Cable SC To SC Flame Retardant Low Smoke Zero Halogen
FTTH Drop Fiber Patch Cable SC To SC Flame Retardant Low Smoke Zero Halogen
FTTH Drop Fiber Patch Cable SC To SC Flame Retardant Low Smoke Zero Halogen
FTTH Drop Fiber Patch Cable SC To SC Flame Retardant Low Smoke Zero Halogen
Specifications
Brand Name :
KCO
Model Number :
SC-SC-SMSX-ftth-white/black-xM-lszh
Certification :
ISO9001, RoHS
Place of Origin :
Guangdong, China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
Western Union,T/T,L/C
Delivery Time :
2~5 days after get payment
Packaging Details :
PE bag, carton box, wooden roll
Connector 1 :
SC/UPC simplex
Connector 2 :
SC/UPC simplex
Fiber type :
single mode
Cable length :
3m, customized
Cover :
LSZH, PVC, customized
Cable color :
White or black or customized
Description
FTTH Drop Fiber Patch Cable SC To SC Flame Retardant Low Smoke Zero Halogen
FTTH 10 Gig Fiber Patch Cable SC To SC with Flame Retardant Low Smoke Zero Halogen construction for reliable fiber optic connectivity.
Key Features
  • Excellent mechanical and environmental characteristics
  • Simple structure, lightweight design with high practicability
  • Low smoke zero halogen (LSZH) flame retardant sheath
  • Novel flute design for easy stripping and splicing
  • Simple installation and maintenance procedures
  • Two parallel FRP strength members for anti-electromagnetic and crush resistance
  • Special low-bend-sensitivity fiber for high bandwidth transmission
  • Compatible with field assembly connectors (fast connectors)
Applications
  • Access Networks
  • LAN (Local Area Network)
  • Fiber Optic Communication Systems
  • FTTH (Fiber to The Home) Indoor Building
  • Optical fiber connected and transmitted equipment
Quick Specifications
Connector 1: SC/UPC
Connector 2: SC/UPC
Fiber Mode: Single Mode (SM)
Fiber Number: 1 Fiber, Simplex
Fiber Type: G657A
Cable Diameter: 2x3.0mm
Cable Color: White
Cable Length: 3m or Customized
Cover Material: LSZH, Flame Retardant
With easy accessibility to the fiber and simple installation, FTTH cable can be directly connected to homes. Suitable for connecting with communication equipment and used as access building cable in premises distribution systems. The optical fibers are positioned in the center of the cable with two parallel strength members placed at the sides. Metal messenger wire is included for aerial installation, all covered with black LSZH sheath. Custom connectors available upon request.
FTTH Drop Fiber Patch Cable SC To SC Flame Retardant Low Smoke Zero Halogen
Technical Specifications
Item FTTH fiber optic patch cable Applications Indoor, outdoor
Connector 1 SC, FC, LC, ST, MTRJ, E2000, etc Connector 2 SC, FC, LC, ST, MTRJ, E2000, etc
Fiber Number simplex, duplex Cable Length customized
Jacket Material LSZH (Black/white/customized) Fiber Type Single mode G652D/G657A1
Cable Diameter 2.0x5.2mm Cable Weight 18kg/km
Working Temperature -40°C to +80°C Temperature Cycle -40°C to +75°C
Storage Temperature -40°C to +85°C Interchangeability ≤0.2 dB
Plug Times 1000 times Repeatability ≤0.1 dB
Insertion Loss ≤0.2 dB Max Insertion Loss ≤0.3 dB
Return Loss ≥45 ≥50 ≥60 dB Immersion Temperature 43°C, PH5.5 for 7 days
Strength Member Material FRP Tensile Strength 300/600N (long/short term)
Crush Load 1100/2200 (N/100mm) (long/short term) Bending Radius 15D/20D (mm) (long/short term)
OEM/ODM Services
We offer comprehensive OEM and ODM services. Custom branding available on cables, packaging bags, labels, or any requested location. Our team is ready to accommodate your specific requirements.
Packing Options
Standard export packing available in carton boxes, wooden boxes, or wooden pallets.
Shipping Methods
  • International express services: UPS, TNT, DHL, etc
  • International air freight: CA, AA, EA, etc
  • Sea freight
