Simplex DIN UPC Fiber Optic Patch Cord SM / Duplex MM DIN Optical Fiber Patch Cable
Simplex DIN UPC Fiber Optic Patch Cord SM / Duplex MM DIN Optical Fiber Patch Cable
Simplex DIN UPC Fiber Optic Patch Cord SM / Duplex MM DIN Optical Fiber Patch Cable
Simplex DIN UPC Fiber Optic Patch Cord SM / Duplex MM DIN Optical Fiber Patch Cable
Specifications
Brand Name :
KCO
Model Number :
ST-LC-SMDX-2.0-xM-armored
Certification :
ISO9001, RoHS
Place of Origin :
Guangdong, China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
Western Union,T/T,L/C
Delivery Time :
2~5 days after get payment
Packaging Details :
PE bag, carton box, wooden roll
Connector 1 :
DIN
Connector 2 :
DIN, others
Core :
simplex, duplex, multi fibers
Cover :
PVC, LSZH, customized
Insertion loss :
0.2dB
Return Loss :
55dB
Description
Simplex DIN UPC Fiber Optic Patch Cord
Available in single mode and multimode configurations with DIN connectors, these fiber optic patch cables deliver superior performance in a compact design suitable for various telecommunications and networking applications.
Product Overview
The DIN fiber optic patch cable features pre-assembled DIN 47256 (LSA) connectors with spring-loaded free floating zirconia ferrule. Manufactured from precision screw machined brass for consistent performance and durability.
Quick Specifications
Connector Types: DIN to DIN or other configurations
Modes: Single mode, Multimode (OM3, OM4)
Fiber Configuration: Simplex, Duplex, Multi-fiber
Cable Diameter: 0.9mm, 2.0mm, 3.0mm
Jacket Material: PVC, LSZH
Insertion Loss: 0.15dB
Return Loss: 55dB
Applications
  • CATV (Cable Television)
  • Telecommunication Networks
  • Computer Fiber Networks and Test Equipment
  • Communication Rooms
  • FTTH (Fiber to The Home)
  • LAN (Local Area Network)
  • Fiber Optic Sensors
  • Optical Communication Systems
  • Defense and Applications
Key Characteristics
  • Low Insertion Loss
  • High Return Loss
  • Excellent Repeatability
  • Superior Interchangeability
  • Outstanding Environmental Adaptability

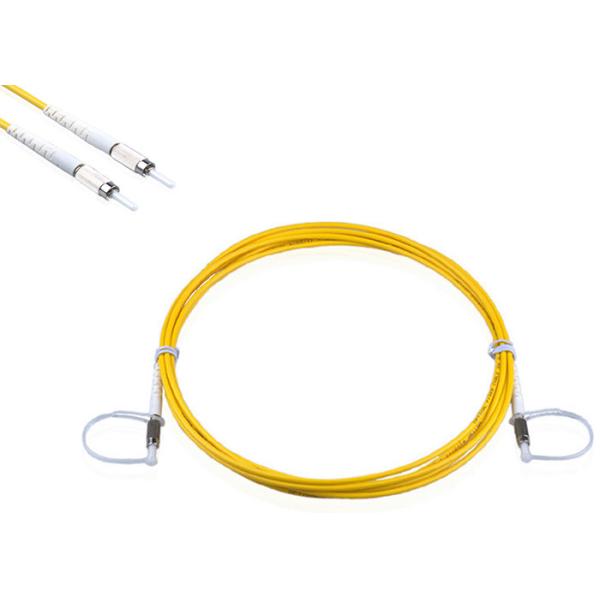

Product Image
Simplex DIN UPC Fiber Optic Patch Cord SM / Duplex MM DIN Optical Fiber Patch Cable
Technical Specifications
Parameter Specifications
Connector Style LC, SC, ST, FC, MU, DIN, D4, MPO, SC/APC, FC/APC, LC/APC, Duplex MTRJ/Female, MTRJ/Male
Fiber Type 9/125 SMF-28 (Single mode OS1), 50/125, 62.5/125 (Multimode OM2/OM1), 50/125 10G (Multimode OM3), G652, G657, G655
Cable Type Simplex, Duplex Zip Cord: Φ3.0mm, Φ2.0mm, Φ0.9mm, Buffered Fiber
Cable Cover Material PVC, LSZH, Armored, Water-proof, FTTH, Outdoor
Return Loss Single mode Master: ≤0.15dB, Single mode Standard: ≤0.30dB, Multimode: ≤0.30dB
Repeatability ±0.1dB
Operating Temperature -40°C to 85°C
OEM/ODM Services Available
Custom branding options available for cable, packaging, labels, and more. Our OEM and ODM services can accommodate your specific requirements.
Packaging & Shipping
Packaging: Standard export packing with carton boxes, wooden boxes, or wooden pallets.
Shipping Methods: International express (UPS, TNT, DHL), international air freight, or sea freight.
