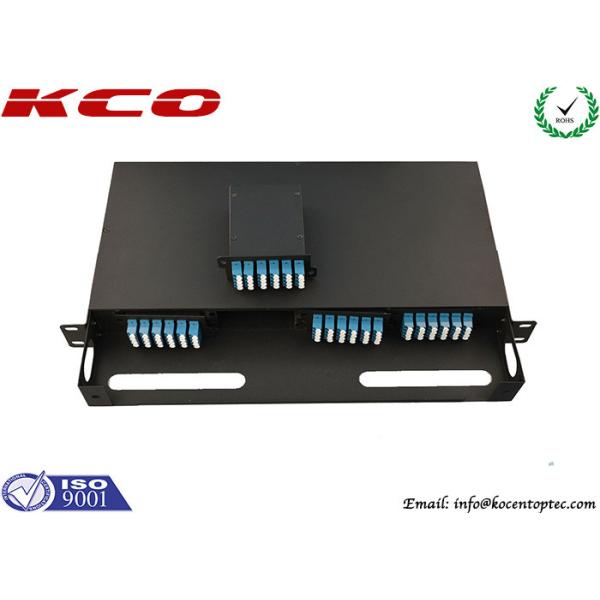

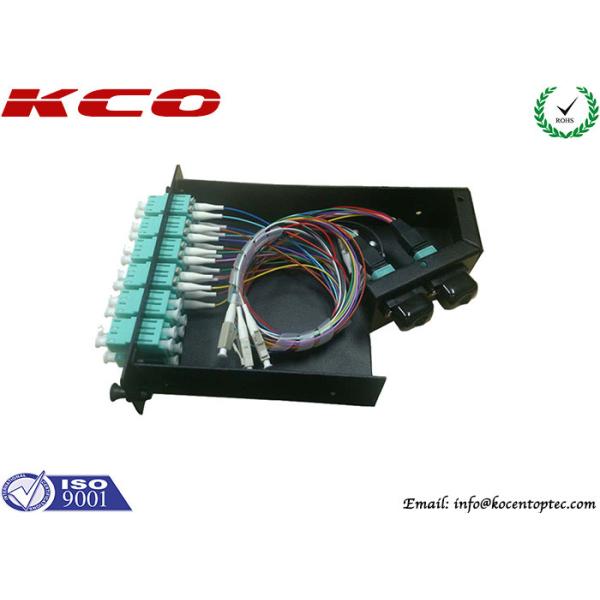

MPO/MTP Cassettes are pre-terminated, pre-tested, and come with 12 fibers or 24 fibers MPO/MTP connectors on the back that break out to single or array connectors on the front.

Cassettes are custom-built to your configuration needs and modules are custom-built to to meet your specific application needs.

Select from a variety of connectors including LC, SC and MU for OM1, OM2, OM3, OM4, and OS2 deployment.

• Come with Standard Black LGX footprint styles and Available in Custom-Built Cassettes
• 100% factory tested with test results included with each cassette
• Plug-n-play cassette eliminates the need for field termination or splices
• Allow for a simple migration path to 40GbE and 100GbE networks with MPO/MTP cassettes
• MPO/MTP adapter swivel allows for easy cable routing and proper bend radius
• All cassettes use either 24-fiber or 12-fiber low-loss MPO/MTP connectors on the back

24-strand 24 fibers LGX= 1 x MPO/MTP-Adapter back to the cassette.

12-strand 24 fibers LGX= 2 x MPO/MTP-Adapter back to the cassette.

Connector: LC/SC/MU SM-Blue, APC-Green, MM-Beige, OM3-Aqua, OM4-Violet, MPO/MTP SM-Green, MM-Beige, OM3-Aqua.

Adaptor: LC/SC SM-Blue, APC-Green, MM-Beige, OM3-Aqua, OM4-Violet, MU-Brown, MPO/MTP-Black,

• FTTH, CATV, LAN, MAN, WAN, Test, Measurement
• Video transmission, Data transmission
• Active Device Termination
• Premise Installations
• Telecommunication and Data processing Networks
• Industrial, medical,
• Systems Integration for Long Haul, Metro and Access Network

If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

According to Stardard Export Packing.

Carton box, wooden box, wooden pallet.

• International express such as UPS, TNT, DHL, etc
• Internatioal air: CA, AA, EA, etc
• By sea
