1U Rack Mounted Fiber Optic Media Converter / Fiber Optic Video Converter
1U Rack Mounted Fiber Optic Media Converter / Fiber Optic Video Converter
1U Rack Mounted Fiber Optic Media Converter / Fiber Optic Video Converter
1U Rack Mounted Fiber Optic Media Converter / Fiber Optic Video Converter
Specifications
Brand Name :
KCO, Kocent Optec Limited
Model Number :
KCO-converter
Certification :
ISO9001, RoHS, UL
Place of Origin :
Guangdong, China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
Western Union,T/T,L/C
Supply Ability :
50,000pcs/month
Delivery Time :
5~7 days after get payment
Packaging Details :
carton box, wooden pallet
Connector :
SC, LC, FC optional
Speed :
10/100M
Distance :
20km
Type :
Rack mount
Video way :
24 ways
Optical way :
1 way
Description
1U Rack Mounted Fiber Optic Media Converter / Fiber Optic Video Converter
Quick informations:
Product name: Data Video Optical Converter
Data way: 6 ways
Video Way: 24 ways
Optical way: 1 way
Optic connector type: FC
Fiber mode: single mode, mono mode
Transfer distance: 20km
Size: standard 19 inch
Specification:
  • Monitor center adopt 19 inch 1U rack, Long-distance point adopt mini box
  • Simplex fiber singlemode transmit VIDEO/AUDIO/PHONE/DATA
  • Data uncompressed fiber transmit
  • Automatically compatible with PAL, NTSC and SECAM video format
  • Semiduplex/Fullduplex data communication
  • Double direction Audio and phone
  • Audio/telephone, Ethernet for choice
Typical Application:
  • Intelligent transportation supervisory system (ITS)
  • Tele-Com projects
  • Intelligent Monitor to produce process
  • Intelligent Monitor and alarm to factory, coal mine, oil field etc,realize safe and fireproofing
  • High-building Security Protection
Features:
  • TR/RE pair transports eight channels of high quality
  • Composite video in one direction and one channels of data in reverse directions over one optical fiber
  • Exceeds rs250c specifications for SNR and Differential Phase and Differential Gain
  • 10bit liner PCM video encoding
  • 6.5Mhz video bandwidth @-3db >67db SNR Over entire optical rang
  • Range up to 30km depending on model
  • Compatible with NTSC OR PAL OR SECAM
  • Compatible with the network management system
  • Data rs485 or rs422 or rs232

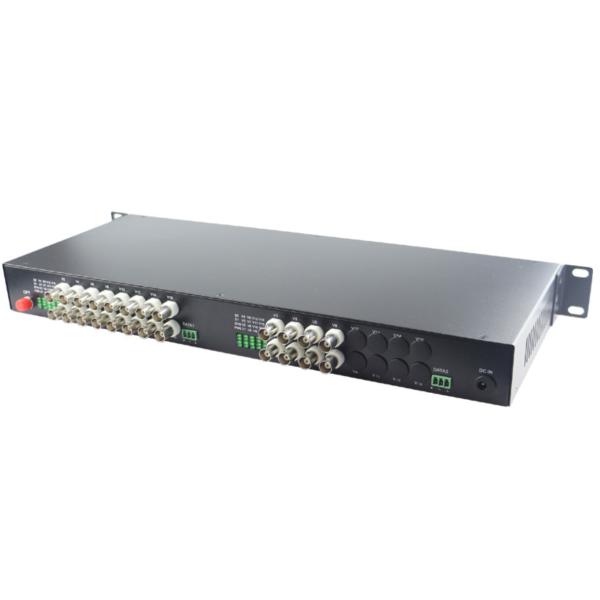

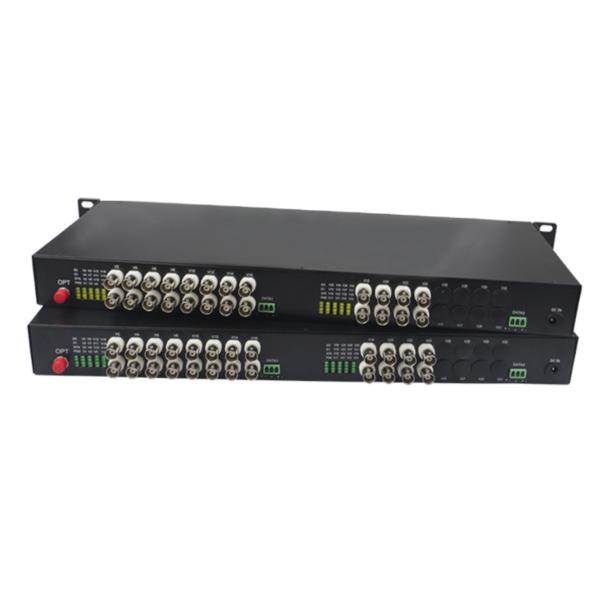

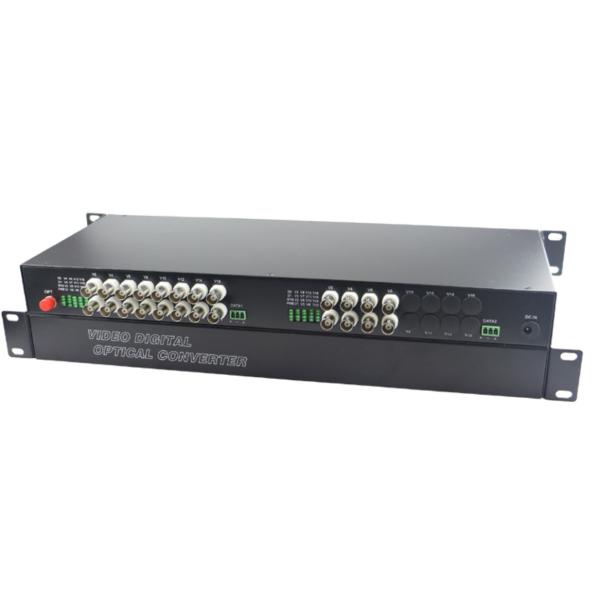

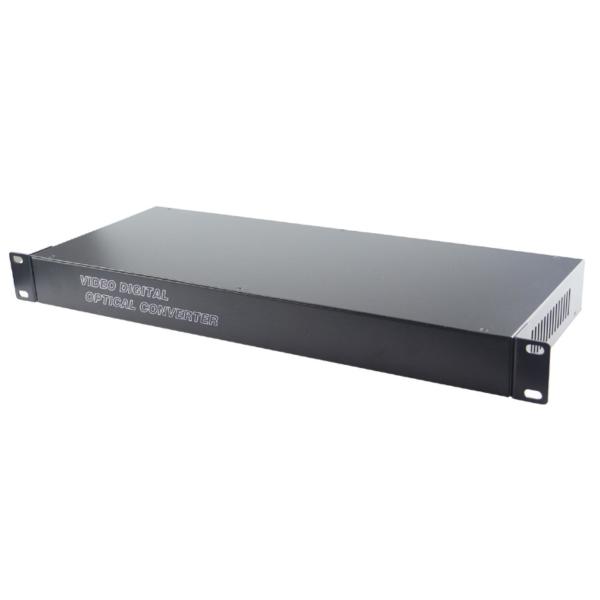

Product picutures:

1U Rack Mounted Fiber Optic Media Converter / Fiber Optic Video Converter

1U Rack Mounted Fiber Optic Media Converter / Fiber Optic Video Converter

1U Rack Mounted Fiber Optic Media Converter / Fiber Optic Video Converter

1U Rack Mounted Fiber Optic Media Converter / Fiber Optic Video Converter

Parameter:
1- Video
Video format NTSC PAL SECAM
Voltage 1vp-p 75Ω
Bandwidth 6.5MHZ -3db
Deferential Gain ≤0.7%
Deferential phase ≤0.7O
Video SNR ≥67dB；over usable fiber Range for rs250 standard
Encoding 10-bit linear PCM
Sampling rate 5Mhz
Bite rate over fiber one video for 188Mbps Eight video for 1.44Gbps
Connectors one BNCs
Data RS485
2- Power
Requirements TRANSMITTER (FT-T101d) 0.6A@6vdc
Receiver (FT-R101d) 0.7A@6vdc
3- Physical
Dimensions (in millimeters): 201(w)*195.4(d)*28(h)
Weight (in pounds): 0.68
4- Environmental
Operating temperature -35OC to 70 OC
Storage temperature -50OC to 85 OC
Relative humidity 0% to 95%
5- DATA Illumination
5.1- Transceiver
DATA1: Pin1:no use
Pin2:no use
Pin3:OUTPUT RS485+
Pin4:OUTPUT RS485-
5.2- Receiver
DATA1: Pin1:no use
Pin2:no use
Pin3:INPUT RS485+
Pin4:INPUT RS485-
6- Indicators
TR SYNC (local data in sync)
PWR (power natural)
RE CD (fiber established)
SYNC(TR RE in sync)
PWR(power natural)
7- OPTICAL CONNECTOR: FC/PC
OPTICAL wavelength:
Positive direction for 1310 um
Back direction for 1550 um
Dimension:
Video way number Size Weight
1 way110x110x25mm0.7kg/pair
2 ways110x86x26mm0.7kg/pair
4 ways110x110x26mm0.7kg/pair
8 ways150x190x30mm0.9kg/pair
16 ways170x240x45mm2kg/pair
16 ways rack mount485x200x45mm3.2kg/pair
32 ways rack mount485x200x45mm4.5kg/pair
Applications:

1U Rack Mounted Fiber Optic Media Converter / Fiber Optic Video Converter

1U Rack Mounted Fiber Optic Media Converter / Fiber Optic Video Converter

Ordering informations:
Item Choice
VideoMax. 16 ways
DataMax. 16 ways
AudioMax. 8 ways
EthernetMax. 2 ways
TelephoneMax. 2ways
OpticalMax. 2 ways SC, FC optional
ModeSingle mode
FiberDual fiber/ Single fiber
Distance20km
Package:

Carton box, wooden pallet

Shipping:
  • By International Express such as TNT, DHL, UPS, etc
  • By Air: CA, HA, AA, EA, etc
  • By Sea
