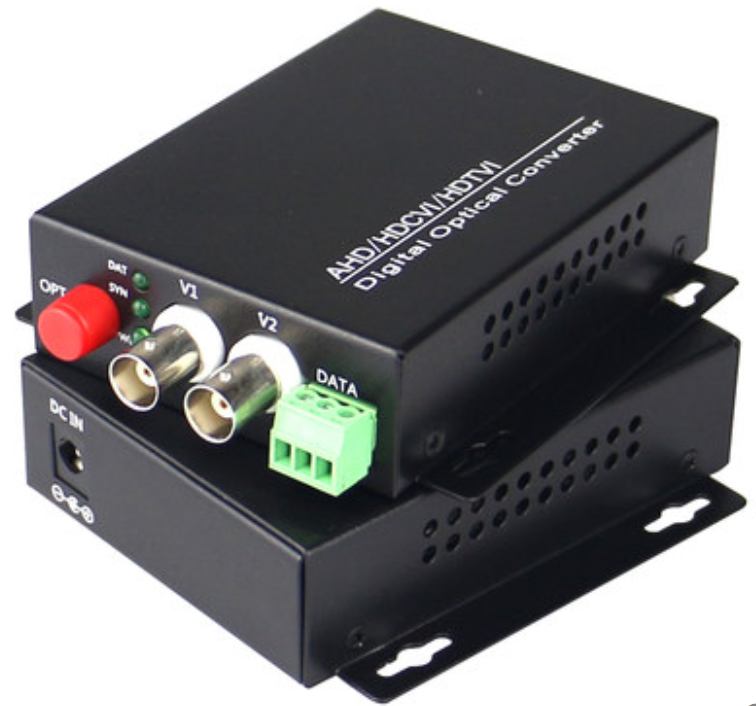

Data voice video optical fiber converter single mode 20km FC/UPC connector
Data voice video optical fiber converter single mode 20km FC/UPC connector
Data voice video optical fiber converter single mode 20km FC/UPC connector
Data voice video optical fiber converter single mode 20km FC/UPC connector
Specifications
Brand Name :
KCO, Kocent Optec Limited
Model Number :
KCO-converter
Certification :
ISO9001, RoHS, UL
Place of Origin :
Guangdong, China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
Western Union,T/T,L/C
Supply Ability :
50,000pcs/month
Delivery Time :
5~7 days after get payment
Packaging Details :
carton box, wooden pallet
Connector :
SC, LC, FC
Speed :
10/100M
Fiber :
dual fiber
Mode :
Single mode, mono mode
Distance :
20km
Application :
Data central, fiber to the computer
Description
Data voice video optical fiber converter single mode 20km FC/UPC connector
Typical Application:
  • Intelligent transportation supervisory system (ITS)
  • Tele-Com projects
  • Intelligent Monitor to produce process
  • Intelligent Monitor and alarm to factory, coal mine, oil field etc,realize safe and fireproofing
  • High-building Security Protection
Specification:
  • Monitor center adopt 19 inch 2U rack, Long-distance point adopt mini box
  • Simplex fiber singlemode transmit VIDEO/AUDIO/PHONE/DATA
  • Data uncompressed fiber transmit
  • Automatically compatible with PAL, NTSC and SECAM video format
  • Semiduplex/Fullduplex data communication
  • Double direction Audio and phone
  • Audio/telephone, Ethernet for choice
Features:
  • TR/RE pair transports eight channels of high quality
  • Composite video in one direction and one channels of data in reverse directions over one optical fiber
  • Exceeds rs250c specifications for SNR and Differential Phase and Differential Gain
  • 10bit liner PCM video encoding
  • 6.5Mhz video bandwidth @-3db >67db SNR Over entire optical rang
  • Range up to 30km depending on model
  • Compatible with NTSC OR PAL OR SECAM
  • Compatible with the network management system
  • Data rs485 or rs422 or rs232
Product picutures:

Data voice video optical fiber converter single mode 20km FC/UPC connector

Data voice video optical fiber converter single mode 20km FC/UPC connector

Parameter:
1- Video

Video format NTSC PAL SECAM

Voltage 1vp-p 75Ω

Bandwidth 6.5MHZ -3db

Deferential Gain ≤0.7%

Deferential phase ≤0.7O

Video SNR ≥67dB；over usable fiber

Range for rs250 standard

Encoding 10-bit linear PCM

Sampling rate 5Mhz

Bite rate over fiber one video for 188Mbps

Eight video for 1.44Gbps

Connectors one BNCs

Data RS485

2- Power

Requirements TRANSMITTER (FT-T101d) 0.6A@6vdc

Receiver (FT-R101d) 0.7A@6vdc

3- Physical

Dimensions (in millimeters): 201(w)*195.4(d)*28(h)

Weight (in pounds): 0.68

4- Environmental

Operating temperature -35OC to 70 OC

Storage temperature -50OC to 85 OC

Relative humidity 0% to 95%

5- DATA Illumination
5.1- Transceiver

DATA1: Pin1:no use

Pin2:no use

Pin3:OUTPUT RS485+

Pin4:OUTPUT RS485-

5.2- Receiver

DATA1: Pin1:no use

Pin2:no use

Pin3:INPUT RS485+

Pin4:INPUT RS485-

6- Indicators

TR SYNC (local data in sync)

PWR (power natural)

RE CD (fiber established)

SYNC(TR RE in sync)

PWR(power natural)

7- OPTICAL CONNECTOR: FC/PC

OPTICAL wavelength:

Positive direction for 1310 um

Back direction for 1550 um

Dimension:
Video way number Size Weight
1 way 110x110x25mm 0.7kg/pair
2 ways 110x86x26mm 0.7kg/pair
4 ways 110x110x26mm 0.7kg/pair
8 ways 150x190x30mm 0.9kg/pair
16 ways 170x240x45mm 2kg/pair
16 ways rack mount 485x200x45mm 3.2kg/pair
32 ways rack mount 485x200x45mm 4.5kg/pair
Applications:

Data voice video optical fiber converter single mode 20km FC/UPC connectorData voice video optical fiber converter single mode 20km FC/UPC connector

Ordering informations:
Item Choice
Video Max. 16 ways
Data Max. 16 ways
Audio Max. 8 ways
Ethernet Max. 2 ways
Telephone Max. 2ways
Optical Max. 2 ways SC, FC optional
Mode Single mode
Fiber Dual fiber/ Single fiber
Distance 20km
Package:

Data voice video optical fiber converter single mode 20km FC/UPC connector

OEM/ODM service:

Our OEM and ODM service is always ready!
If you want to show your own brand LOGO on the product cable, product package or rack mount, it is no any problem. Our OEM service is always ready to servise you.

Shipping:
  • By International express: TNT, DHL, UPS, special line express, etc
  • By air: CA, ZH, CZ, AA, AC, BA, etc
  • By sea
