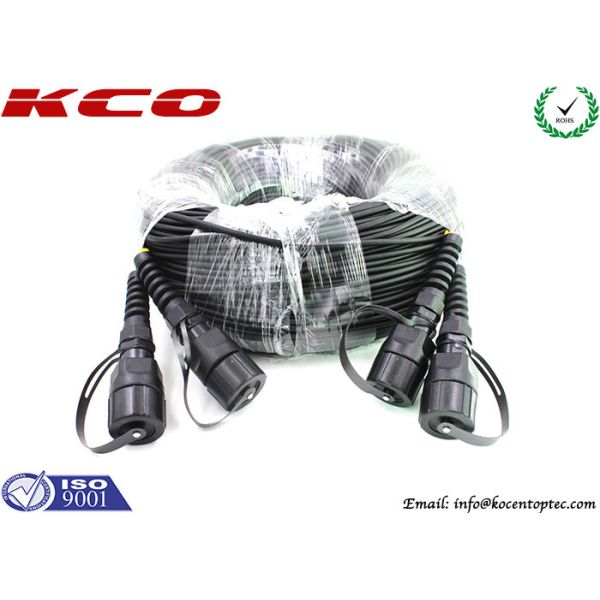

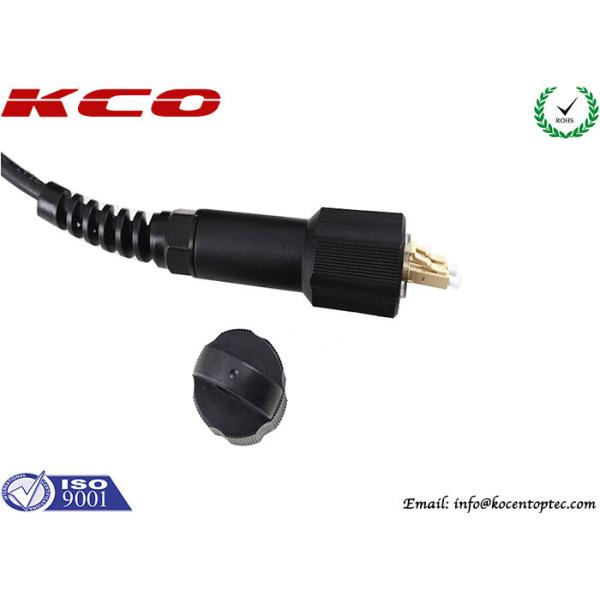

GYFJH Cable PDLC ODLC CPRI Outdoor Indoor 2cores Fiber Optic Patch Cable for FTTH FTTA
GYFJH Cable PDLC ODLC CPRI Outdoor Indoor 2cores Fiber Optic Patch Cable for FTTH FTTA
GYFJH Cable PDLC ODLC CPRI Outdoor Indoor 2cores Fiber Optic Patch Cable for FTTH FTTA
GYFJH Cable PDLC ODLC CPRI Outdoor Indoor 2cores Fiber Optic Patch Cable for FTTH FTTA
Specifications
Connector :
ODLC, PDLC
Cores no. :
2 cores, 4 cores, 8 cores, ...
Service :
OEM, ODM
Cable Cover :
LSZH, PE
Insertion loss :
0.2dB
Application :
Outdoor, field, army, CATV, FTTA,...
Return loss :
55dB
Brand Name :
KCO
Model Number :
PDLC, ODLC
Certification :
ISO9001, RoHS, UL
Place of Origin :
Guangdong, China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
Western Union,T/T,L/C
Delivery Time :
3~7 days after payment
Packaging Details :
PE bag, carton box, wooden roll
Cable color :
Black
Fiber :
Corning, Yofc
Cable length :
1m, 50m, 100m, or customized
Description

PDLC ODLC duplex fiber optic patch cable outdoor water proof GYFJH 7.0mm LSZH cover

Quick Details about ODLC PDLC outdoor fiber optic patch cable assemblies:

  • Type: ODLC/PDLC fiber optic patch cord
  • Mode: Single mode and Multimode
  • Cable Fan-out: 0.5m, 1m, or customized
  • Connector: LC duplex
  • Ferrule End-face: PC, UPC, APC
  • Cable type: Fiber optic outdoor cable GYFJH
  • Cable diameter: 7.0mm
  • Cable cover material: LSZH
  • Cable core: 2 cores, 4 cores, 6 cores...or customized
  • Cable length: 50m, 70m, 100m….or customized

Description of ODLC PDLC outdoor fiber optic patch cable assemblies:

The PDLC connectors, together with the support optical cable, are becoming the standard interface specified in 3G, 4G and WiMax Base Station remote radios and Fiber-to-the Antenna applications.

Features of ODLC PDLC outdoor fiber optic patch cable assemblies:

  • FTTA , WiMax base station, CATV outdoor Application.
  • Optional Diameter: 4.8mm, 7.0mm or Customized.
  • Optional Jacket: LSZH, PE; Armored or Non Armored.
  • IP67 Waterproof protection.
  • Standard Duplex LC connector, well connected with standard LC adaptor.
  • Available Single mode and Multimode.
  • IP67 protection, salt-mist proof, humidity proof, dust proof.
  • Aluminum housing, compact design.
  • Broad temperature range and wide range of indoor and outdoor cables.
  • Easy Operation, reliable and cost-effective Installation.

Applications of ODLC PDLC outdoor fiber optic patch cable assemblies:

  • Telecommunication networks
  • CATV, LAN, MAN, WAN, Test &Measurement
  • Optical access network
  • Fiber optic communication networks

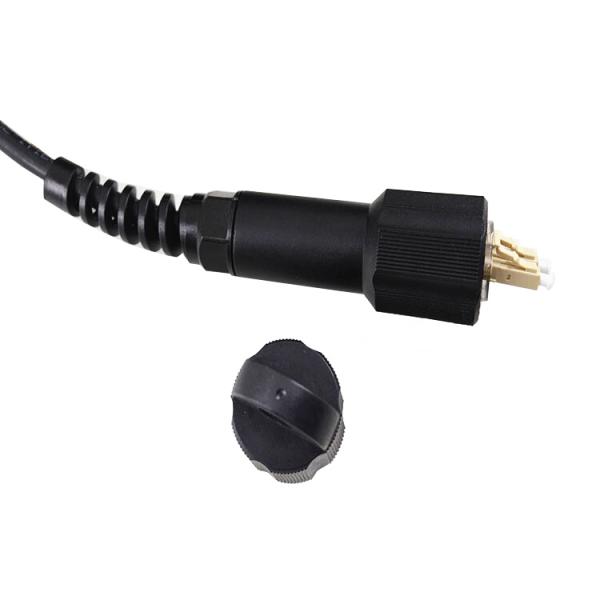

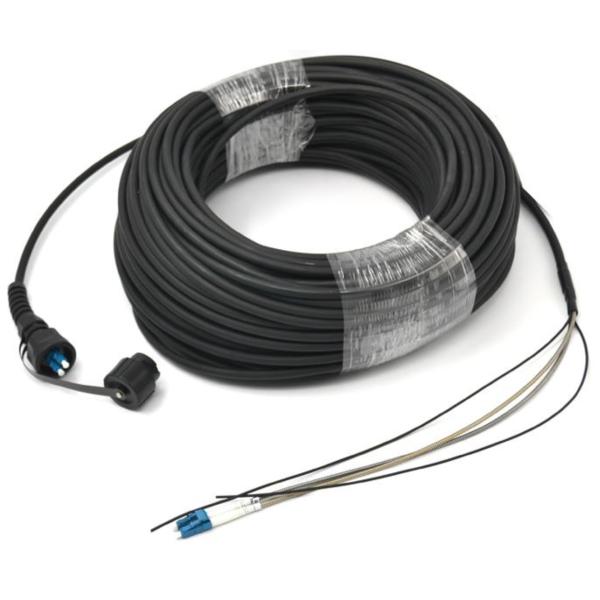

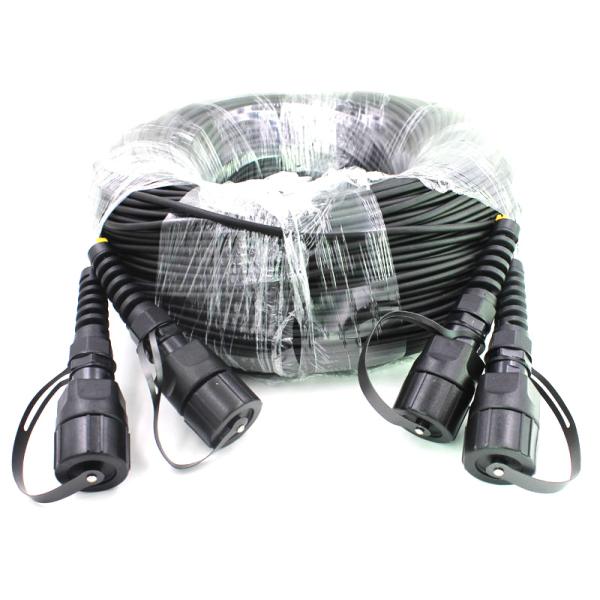

ODLC PDLC outdoor fiber optic patch cable assemblies product pictures:

Specification of ODLC PDLC outdoor fiber optic patch cable assemblies:

ItemSingle mode, Multimode
Ferrule End-facePCUPCAPC
Insert attenuation≤0.3dB≤0.3dB≤0.3dB
Return loss≥45dB≥50dB≥55dB
repeatability≤0.1dB≤0.1dB≤0.1dB
Operation temperature-20°C~+70°C(PVC)/-40°C~+90°C (LSZH/PE)
Outer diameter1.6mm(fan-out cable part), 4.8mm, 7.0mm

ODLC PDLC Assembly Performance:

ItemData
Insertion Loss≤0.2dB
Return LossSM/UPC≥55dB, SM/APC≥65dB, MM≥35dB
Mechanical life500cycles
Working temperature-40°C~+70°C
Storage temperature-40°C~+70°C
Operating temperature-10°C~+50°C
Protection LevelIP67
Tensile DataTensile between junction and fiber cable≥100N
AuthenticationMeet with RoHS

Outdoor fiber optic cable Specification:

ItemData
fiberOS2,OM1,OM2,OM3,OM4
Tension memberAramid Kevlar, Armored Tube
Max. attenuation

SM: ≤0.34dB/km at 1310nm, ≤0.20dB/km at 1550nm

MM: ≤0.60dB/km at 1300nm, ≤2.3dB/km at 850nm

Tensile resistance (short term)500N (no breakage)
Crush resistance(short term/long term)1000N/100mm
Inflaming retardingIEC 60332-3
Temperature-40~+70°C
UvioresistantPASS
AuthenticationMeet with RoHS &UL

Our ODLC PDLC outdoor fiber optic patch cable assemblies packing ways:

OEM/ODM service:

Our OEM and ODM service is always ready!
If you want to show your own brand LOGO on the product cable, product package or rack mount, it is no any problem. Our OEM service is always ready to servise you.

Shipping:

  • By International express: TNT, DHL, UPS, special line express, etc
  • By air: CA, ZH, CZ, AA, AC, BA, etc
  • By sea
