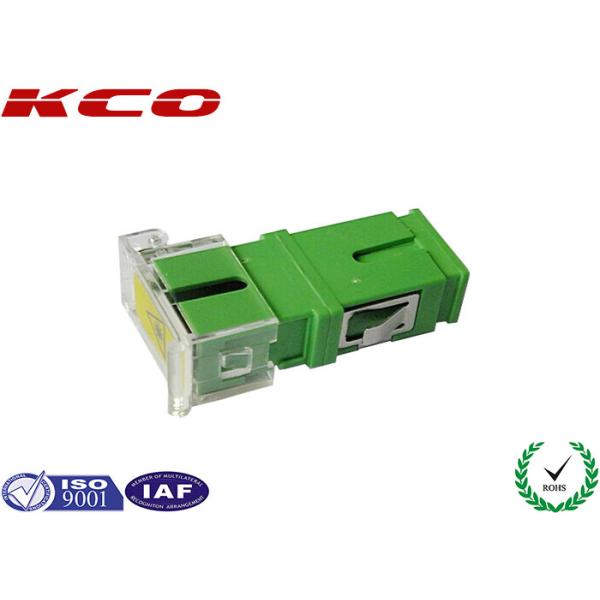

SC APC Fiber Optic Adapter Single Mode Simplex Green Color
SC APC Fiber Optic Adapter Single Mode Simplex Green Color
SC APC Fiber Optic Adapter Single Mode Simplex Green Color
SC APC Fiber Optic Adapter Single Mode Simplex Green Color
Specifications
Insertion loss :
0.2dB
Material :
Metal or Plastic
Brand Name :
KCO, Kocent Optec Limited
Model Number :
SC/APC, SLC/UPC, LC/PC
Certification :
ISO9001, RoHS
Place of Origin :
Guangdong, China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
Western Union,T/T,L/C
Supply Ability :
500,000pcs/month
Delivery Time :
2~5 days after get payment
Packaging Details :
Plastic module, carton box, wooden pallet
Return loss :
55dB
Sleeves material :
Ceramic (ZrO2)
Type :
LC/APC, LC/UPC
Color :
Blue, green, OM3
Description
SC/APC mono mode fiber optic adapter with transparent color cap
Descriptions:

Fiber optic adapters also call fiber optical adapter, optic fiber adapter, optical fiber adapter.

SC fiber optic adapter is available in single mode UPC APC and MM PC to sastify to connect single mode or multimode patch cables.

The fiber optic adapters use to join two fiber optic patch cables together. It contains the interconnect sleeve, that holds the two ferrules together.

Applications:
  • Testing instruments
  • Connection between devices
  • Connection between fiber optic patch cords
  • CATV, MANS, WANS
  • Fiber to the home, Fiber to the X
Advantage of the fiber optic adapters:
  • These products are designed and manufactured to comply with stringent Telcordia 100BaseFX Technologies standards.
  • Low Insertion Loss means there is little reduction in light intensity along the transmission router.
  • High Reliability
  • Also compliant with the IEC and ROSH standards
  • Our range of fiber optic cable adapter can consistent good quality as is proven by repeated tests. It is interchangeable with similar devices built to the same standards.
  • We provides an extensive line of fiber optic adapters that offer superior low loss performance with very high repeatability.
Product pictures:

SC APC Fiber Optic Adapter Single Mode Simplex Green Color

SC APC Fiber Optic Adapter Single Mode Simplex Green Color

Specification of fiber optic adapters:
ParameterSpecifications
Mating Connector TypeSC, LC, FC, ST, MU, D4, DIN, E2000, SMA, etc
Fiber Type of ConnectorSingle ModeMultimode
Adapter ColorBlue, green, metallicBeige, Metallic
Testing Wavelength1310nm,1550nm850nm,1300nm
Insert LossTypical≤0.15dB, max≤0.2dBTypical≤0.15dB, max≤0.2dB
Repeatability≤0.10dB
Exchangeability≤0.20dB
Durability1000Mating, max≤0.20dB
Housing MaterialPlastic or metal
Operating Temperature-20°C～+70°C
Storage Temperature-40°C～+85°C
Alignment SleeveCeramic (ZrO2) or customized
Channel NumberSimplex, duplex, quad .
Reliability testing:
ItemTest NameAdditional Insertion LossAdditional Return Loss
1Mechanical durability<0.2dB<5dB
2Repeatability<0.2dB<5dB
3Lock strength<0.2dB<5dB
4Low strength<0.2dB<5dB
5High temperature<0.2dB<5dB
6Steaming<0.2dB<5dB
7Temperature cycle<0.2dB<5dB
8Vibration<0.2dB<5dB
9Drop<0.2dB<5dB
Our fiber optic adapters packing ways:

SC APC Fiber Optic Adapter Single Mode Simplex Green Color

OEM Service: Label customized is available

If you want to your own Logo display on the package plastic box or carton box, it is no problem. Our label printer is already to service to you!

Shipping:
  • By International express: TNT, DHL, UPS, special line express, etc
  • By air: CA, ZH, CZ, AA, AC, BA, etc
  • By sea
