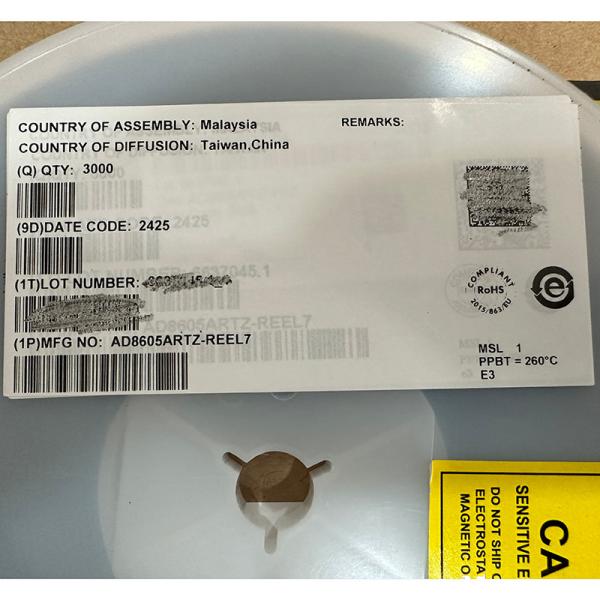

Product Overview: The AD8605ARTZ-REEL7 is a precision, low-noise, and rail-to-rail input/output operational amplifier designed by Analog Devices. It is part of the AD860x series of op-amps, known for its excellent performance in signal conditioning, precision measurement, and low-power applications.

Key Specifications:

1. Input Voltage Noise: 2.5 nV/√Hz at 1 kHz – Provides extremely low noise for sensitive applications.
2. Gain Bandwidth Product (GBW): 1 MHz – Ensures stable performance for general-purpose amplification.
3. Supply Voltage Range: 2.7V to 5.5V – Compatible with both low-voltage systems and general-purpose applications.
4. Input Offset Voltage: < 50 µV – Minimizes errors in precision measurements.
5. Common-Mode Rejection Ratio (CMRR): > 100 dB – Offers high rejection of common-mode signals.
6. Output Voltage Swing: Rail-to-rail output – Ensures maximum output swing for low-voltage systems.
7. Package Type: SOT-23-5 – A compact 5-lead package for easy integration in space-constrained designs.
8. Operating Temperature Range: -40°C to +125°C – Suitable for automotive, industrial, and high-reliability applications.
9. Power Consumption: < 1 µA (typical) at 5V – Extremely low power consumption, making it ideal for battery-powered systems.
10. Bandwidth: 1 MHz at G = 1 – Suitable for a wide range of general-purpose amplification applications.

Applications:

• Precision Signal Conditioning: Ideal for low-noise applications where accuracy is critical.
• Sensor Interfaces: Works well with sensors that require precise amplification without introducing noise.
• Data Acquisition Systems: Provides high accuracy and low noise for measurement and monitoring systems.
• Medical Instrumentation: Suitable for medical equipment that requires precision, low noise, and reliability.
• Automotive and Industrial Systems: Works well in automotive and industrial applications requiring a wide operating temperature range and stability.

Advantages:

• Low Power Consumption: The AD8605 is optimized for low-power operation, ideal for battery-powered applications.
• Rail-to-Rail Performance: Both input and output are rail-to-rail, maximizing signal dynamic range in low-voltage systems.
• High Precision: With a low input offset voltage and low noise, it ensures accuracy in sensitive signal applications.
• Wide Operating Temperature Range: Works reliably across a broad temperature range, making it suitable for demanding environments.

Purchase the AD8605ARTZ-REEL7 today to enhance your designs with a high-precision, low-noise operational amplifier that is ideal for a wide range of low-power, high-performance applications!
