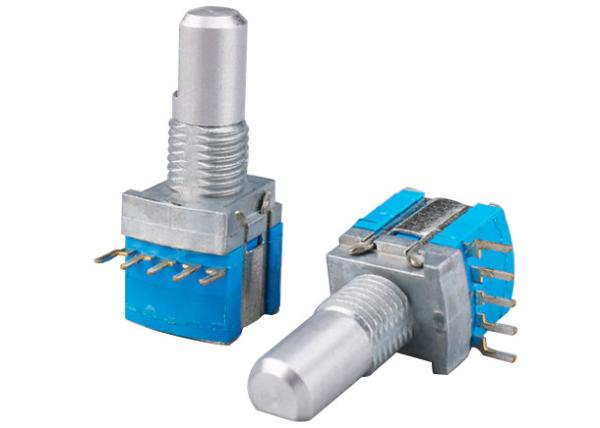

DC16V 0.1A Carbon Composition Potentiometer 10mm Band Switch For Temperature Adjusting
DC16V 0.1A Carbon Composition Potentiometer 10mm Band Switch For Temperature Adjusting
DC16V 0.1A Carbon Composition Potentiometer 10mm Band Switch For Temperature Adjusting
DC16V 0.1A Carbon Composition Potentiometer 10mm Band Switch For Temperature Adjusting
DC16V 0.1A Carbon Composition Potentiometer 10mm Band Switch For Temperature Adjusting
DC16V 0.1A Carbon Composition Potentiometer 10mm Band Switch For Temperature Adjusting
Specifications
Brand Name :
ANYO
Model Number :
RS1010-12
Place of Origin :
CHINA
MOQ :
1000pcs
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
30000 per day
Delivery Time :
8-10 work days
Packaging Details :
20000pcs/carton, 13kg, 40*30*25cm
Other name :
Band switch
Rotational Life :
10000 times
Rated voltage :
DC 16V
Rated current :
0.1A
Changeover angle :
30°±3°
No. of detent :
2~6
Description

10mm Band Switch DC16V 0.1A For Temperature Adjusting Or Light-adjusting

Electrical specifications:

Items Specification
Ratings power 16VDC 0.1A
Contact resistance Allowable 300 mΩ max. by 20mVAC, 50mA , 1KHz±200Hz or 5VDC, 1A test, after by without load rotation 30,000 cycles. Allowable 5000 mΩ max. after by with load rotation 10,000 cycles.
Insulation resistance More then 100MΩ at DC 250
Voltage proof 1 Minute at 300V AC
Output signal Refer to attached drawing

Mechanical Characteristics:

Items Specification Condition
Rotational torque(gf.cm) 200~600gf.cm
Push-pull strength Push/pull 10Kgf 10Kgf.cm for 15 seconds
Changeover angle 30°±3°
Number of detent 2/3/4/5/6

Durability:

Items Specification
Rotational life Life 10,000 cycles by 600 r./h test of without load. Life 10,000 cycles by with load 16VDC at 0.1A.
Waterproof level IP67
Operating temperature -20℃~70℃

Dimension:

DC16V 0.1A Carbon Composition Potentiometer 10mm Band Switch For Temperature Adjusting
