3 Pin Female Panel Mount Connectors / Plastic Cable XLR Female Socket
3 Pin Female Panel Mount Connectors / Plastic Cable XLR Female Socket
3 Pin Female Panel Mount Connectors / Plastic Cable XLR Female Socket
3 Pin Female Panel Mount Connectors / Plastic Cable XLR Female Socket
Specifications
Brand Name :
FENFA
Model Number :
F178
Place of Origin :
CHINA
MOQ :
2000pcs
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
100000 per day
Delivery Time :
8-10 work days
Packaging Details :
Customized carton
Other name :
XLR connector
Withstand voltage :
AC150V/min.
Contact resistance :
≤0.03Ω
Actuating Force :
3～20N
Temperature :
-30~70℃
Max. voltage :
DC 125V 6A
Description

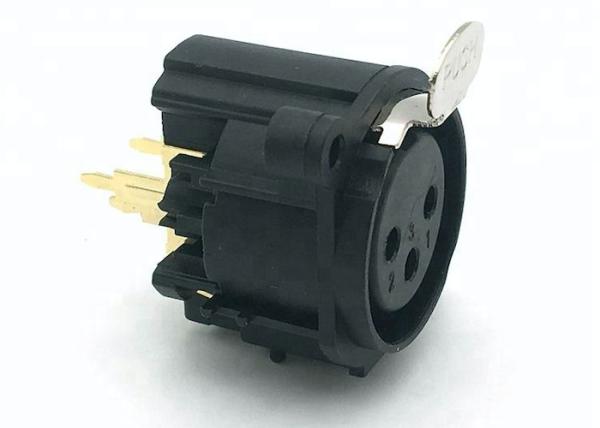

3-Pin Female Panel Mount Chassis Plastic Cable XLR Socket Connector

Description:

XLR plugs and sockets are used mostly in professional audio and video electronics cabling applications. Home audio and video electronics normally use RCA connectors.

Specification:

Material

Housing: PA66, PBT, ABS etc.

Pins: Copper
Certification RoHS
Withstand voltage AC150V/min.
Contact resistance ≤0.03Ω
Actuating force 3~20N
Temperature -30~70℃
Max. voltage DC 125V 6A
Insulation resistance ≥100MΩ
Life >5000 cycles

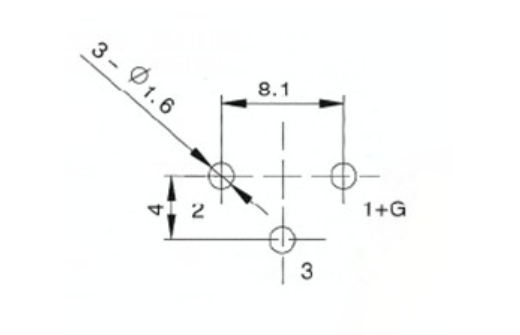

Dimension: (mm)

3 Pin Female Panel Mount Connectors / Plastic Cable XLR Female Socket
