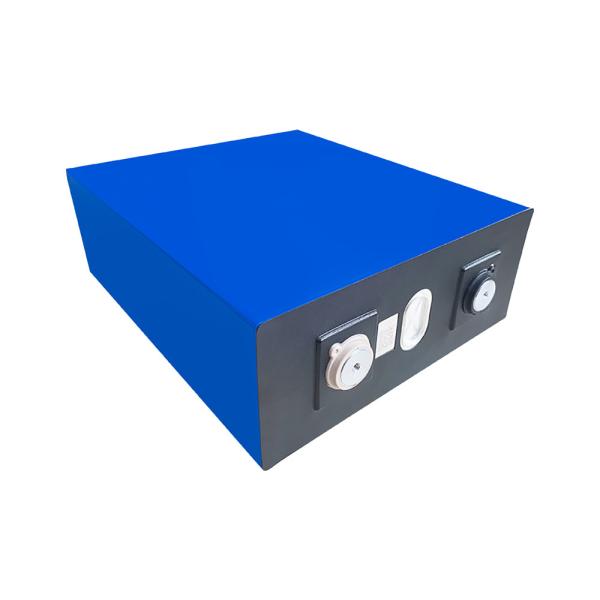

Lifepo4 LFP Battery Cell 3.2 V 280ah 174*72*205mm Electric Vehicle Use
Lifepo4 LFP Battery Cell 3.2 V 280ah 174*72*205mm Electric Vehicle Use
Lifepo4 LFP Battery Cell 3.2 V 280ah 174*72*205mm Electric Vehicle Use
Lifepo4 LFP Battery Cell 3.2 V 280ah 174*72*205mm Electric Vehicle Use
Lifepo4 LFP Battery Cell 3.2 V 280ah 174*72*205mm Electric Vehicle Use
Lifepo4 LFP Battery Cell 3.2 V 280ah 174*72*205mm Electric Vehicle Use
Lifepo4 LFP Battery Cell 3.2 V 280ah 174*72*205mm Electric Vehicle Use
Lifepo4 LFP Battery Cell 3.2 V 280ah 174*72*205mm Electric Vehicle Use
Specifications
Brand Name :
LS, LS
Certification :
MSDS
Model Number :
0901024, 09010850
Place of Origin :
China
MOQ :
4-63 Pieces
Price :
Negotiable
Keywords :
LiFePO4 Prismatic Cell
Product name :
Li-ion Rechargeable Battery
Battery Size :
3.2v 280ah, 174*72*205mm
Weight :
5.2kg, 5.22KG
Battery type :
LiFePO4
Nominal Capacity :
280AH
Discharge rate :
1-3C
Nominal Voltage :
3.2V
Cycle life :
3000 TIMES
Selling Units :
Single item
Single package size  :
20X25X12 cm
Single gross weight :
5.500 kg
Application :
Home Appliances, BOATS, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, Electric Folklifts, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies, Golf Carts, Electric Folklifts, e
Origin :
Guangdong, China
Description

LS 272Ah 280Ah 3.2V LiFePO4 Battery Prismatic Cells For Electric Vehicle

LiFePO4 Prismatic Cell Description:

LS 272Ah 280Ah 3.2V LiFePO4 battery square battery for electric vehicles, with overcharge and over-discharge protection, temperature control function short circuit protection, balance battery and ensure long battery life, LED power display and communication function.

LiFePO4 Prismatic Cell Parameter:

Keywords: LiFePO4 Prismatic Cell Product Name: Li-ion Rechargeable Battery
Battery Size: 3.2v 280ah, 174*72*205mm Weight: 5.2kg, 5.22KG
Battery Type: LiFePO4 Nominal Capacity: 280AH
Discharge Rate: 1-3C Nominal Voltage: 3.2V
Cycle Life: 3000 TIMES Selling Units: Single Item
Single Package Size : 20X25X12 Cm Single Gross Weight: 5.500 Kg
Application: Home Appliances, BOATS, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, Electric Forklifts, Electric Vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies, Golf Carts, Electric Forklifts, E Origin:

Rated capacity 280 AH
Internal impedance 0.1~0.3mΩ
Nominal voltage 3.2V
Dimensions(L*W*H)
174*72*205mm
Weight
5.22±0.2kg
Recommend Constant Curren 280A(1C)
End-of-Discharge Voltage 2.5V
Recommend Constant Current 140A(0.5C)
Charge Voltage
3.65V
Max Continuous Discharge Current
280A(1C)
Cycle life (80%DOD) 3000 cycles
Charging Temperature
-5~60°C
Discharging Temperature
-30~60

Over-Discharge Protection
 Overcurrent Protection
Over-discharge detection voltage
2.2±0.05V
 Overcurrent protection current -
Over-discharge detection delay time
IMS
 Overcurrent detection delay time 1s
Over-discharge release voltage
2.5±0.05V
Release condition
 Cut short load
Short cycle protection Temp. Protection
Detection condition Out load short cycles Charge protection Temp. -5-50°C
Detection delay time 300±30 Discharge protection Temp. -20-70°C
Release condition Cut load NTC thermal sensor
Self-consumption
Working Temp.
Current consumption in normal operation <100uA Temperature. range -20/80℃
Sleep current(over-discharge) ≤20uA

LiFePO4 Prismatic Cell Factory Introduction:

Shenzhen Paisheng Import & Export Co., Ltd. specializes in the production of various 3.7V and 3.2V lithium-ion batteries, chargers, battery BMS and battery packs, etc. The products are widely used in digital products, laptop computers, electrical and electronic products, lighting equipment, toys, household appliances and emergency equipment. We have more than 10 years of battery manufacturing experience, we can assemble batteries and batteries according to your design and requirements.
