48V/51.2 V 100ah LiFePO4 Residential Storage Battery System Stack Mounted
48V/51.2 V 100ah LiFePO4 Residential Storage Battery System Stack Mounted
48V/51.2 V 100ah LiFePO4 Residential Storage Battery System Stack Mounted
48V/51.2 V 100ah LiFePO4 Residential Storage Battery System Stack Mounted
48V/51.2 V 100ah LiFePO4 Residential Storage Battery System Stack Mounted
48V/51.2 V 100ah LiFePO4 Residential Storage Battery System Stack Mounted
48V/51.2 V 100ah LiFePO4 Residential Storage Battery System Stack Mounted
48V/51.2 V 100ah LiFePO4 Residential Storage Battery System Stack Mounted
Specifications
Brand Name :
PSN
Model Number :
PSN-POLO-S
Place of Origin :
CHINA
MOQ :
1
Price :
1350
Payment Terms :
T/T
Supply Ability :
1000PCS PER MONTH
Delivery Time :
7-10DAYS
Packaging Details :
CARTON AND PALLET BASED ON THE QTY
Voltage :
51.2V
Capaity :
100Ah
Communication :
CAN/RS485 etc.
warantty :
60month
Cycle :
6000times
Material :
LFP
Description

Passional 5.12kwh 48V 51.2V 100Ah LiFePO4 Lithium Stack-Mounted

Batteries Pack Residential Solar Energy Storage System

51.2V 100Ah LiFePO4 battery pack is a type of battery used for energy storage applications.

1.Voltage: The battery pack has an output voltage of 51.2V, which is a common voltage for many

applications, including electric vehicles, solar energy storage systems, and backup power systems.

2.Capacity: The battery pack has a capacity of 100Ah, which means it can store up to 5.12kWh of

energy.

3. Chemistry: The battery pack is made using lithium-ion technology, which offers several advantages

over other types of batteries, including high energy density, longer lifespan, and faster charging times.

4. Weight and Size: The weight and size of the battery pack will depend on the specific make and model,

but in general, lithium batteries are lighter and more compact compared to other types of batteries,

Item
5kwh 5.12kwh 48V 100Ah 51.2v LiFePO4 Lithium Stack-mounted Battery Pack Energy Storage Solar system Deep Cycle LED Screen
Brand Name
PASSIONAL
Model Number
PSN POLO-S 51.2V
Nominal Voltage
51.2Volts
Nominal Capacity
100AH
Size
618×450×208.5mm
Anode Material
LFP/LiFePO4
Weight
48Kg±3kg
Chargeable
Yes
Communication Method/RS
CAN/RS485
Humidity(%)
5~95%
Working Temperature
0～40℃(Charge)
-20～40℃(Discharge)
Standard Charge/Discharge Current(A)
50A/100A @25±2℃
Maximum Charge/Discharge Current(A)
100A @25±2℃
Cycle Life
6000 cycles
Altitude Limited(m)
0-3000m

48V/51.2 V 100ah LiFePO4 Residential Storage Battery System Stack Mounted

48V/51.2 V 100ah LiFePO4 Residential Storage Battery System Stack Mounted

48V/51.2 V 100ah LiFePO4 Residential Storage Battery System Stack Mounted

48V/51.2 V 100ah LiFePO4 Residential Storage Battery System Stack Mounted

48V/51.2 V 100ah LiFePO4 Residential Storage Battery System Stack Mounted

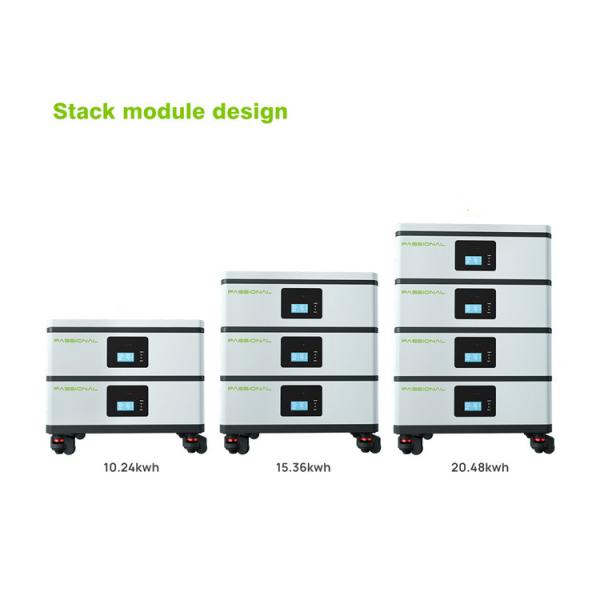

Parallel Connection:
Max support 16pcs parallel connection.

48V/51.2 V 100ah LiFePO4 Residential Storage Battery System Stack Mounted

Company Profile
Shenzhen Passional Technology Co.,Ltd.
The headquarters is located in Guangming District, Shenzhen, and the production bases are set
up in Dongguan and Heyuan respectively,specializes in the production, sales and research and
development of various lithium-ion battery packs, lithium battery protection management systems,
lithium battery testing equipment and other related products. The company adopts moderm
production management system and quality management system.We have experienced R&D
team and efficient and collaborative management team and have obtained a number of quality
certification and import and export certification at home and abroad,such as CE/UL/UN38.3/ROHS/
