FW-ED06 1535nm Eye-safe Laser Ranging Module
FW-ED06 1535nm Eye-safe Laser Ranging Module
Specifications
Brand Name :
Forward
Model Number :
FW-ED06
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C,T/T
Supply Ability :
100 pcs/year
Delivery Time :
5-8 work days
Laser Wavelength :
1535±5nm
Launch Lens Diameter :
Φ12mm
Receiver Lens Diameter :
Φ25mm
Ranging Accuracy :
±2m
Range Resolution :
≤50 m
Divergence Angle :
≤0.3 mrad
Description

Descriptions of FW-ED06 1535nm Eye-safe Laser Ranging Module

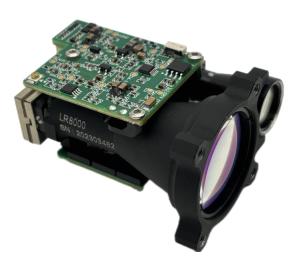

The FW-ED06 eye-safe ranging module is developed by our company based on the
self-developed 1535nm erbium glass laser. It belongs to Class 1 eye-safe products. The product adopts multi-pulse ranging technology, and the maximum ranging distance can reach 10 km. It supports power supply via UART (TTL_3.3V), and has the advantages of low power consumption, stable operation, small size, and light weight. It is widely applied in various fields such as security monitoring, road monitoring, robotic arms, night vision, unmanned aerial vehicles (UAVs), gun sights, golf, outdoor hunting, optoelectronic pods, infrared thermal imaging, engineering surveying, intelligent grain storage bins, etc.


Specifications of FW-ED06 1535nm Eye-safe Laser Ranging Module

Laser Wavelength
1535±5nm
Eye Safety
Class 1
Divergence Angle
≤0.3mrad
Laser Energy
 ≥200 μJ
Launch Lens Diameter
Φ12mm
Receiver Lens Diameter
Φ25mm
Measuring Range(Reflectance 30%; visibility ≥ 5km.)
NATO objective(2.3m×2.3m) ≥6000m
Measuring human target(0.5m×1.7m) ≥1200m
Minimum Range
≤50 m
Ranging Accuracy
±2m
Ranging Frequency
1Hz ~10Hz
Number of multi-target detections
Up to 3 targets
False Alarm Rate
≤1%
Precision Rate
≥98%
Pin-in-lead package model
A1257WR-S-6P
Supply Voltage
DC 4.5-12 V
Standby Power Consumption
≤1mW
Average power consumption
≤4 W @10 Hz
Peak Power Consumption
≤14 W @12 V
Weight
≤58±1g
Dimention (L×W×H)
65×48×32mm
Operation Temperature
-40~＋70℃
Storage Temperature
-55~＋75℃
Impact Resistance
Meet the MIL-STD-810G testing standard
Vibration Resistance
Meet the MIL-STD-810G testing standard


Outline Dimension(mm)
FW-ED06 1535nm Eye-safe Laser Ranging Module
