FW-ED04 1535nm Eye-safe Laser Ranging Module
FW-ED04 1535nm Eye-safe Laser Ranging Module
Specifications
Brand Name :
Forward
Model Number :
FW-ED04
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C,T/T
Supply Ability :
100 pcs/year
Delivery Time :
5-8 work days
Laser Wavelength :
1535±5nm
Launch Lens Diameter :
Φ8mm
Receiver Lens Diameter :
Φ16mm
Ranging Accuracy :
±2m
Range Resolution :
≤20 m
Divergence Angle :
≤0.6 mrad
Description

Descriptions of FW-ED04 1535nm Eye-safe Laser Ranging Module

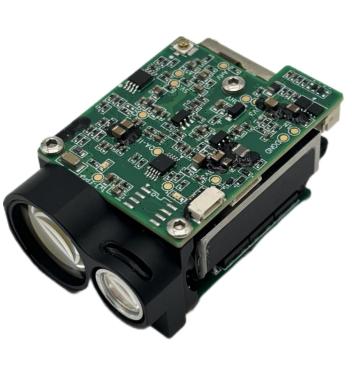

The FW-ED04 eyesafe laser rangefinder module from ERDI TECH uses a self-developed 1535nm Diode Pump Solid State microchip laser. It offers NATO target ranging of 2.3m×2.3m reaching ≥4km, in a compact size of ≤48×30.5×21mm and ≤32g weight. Features include stable laser measurement, self-testing, temperature reporting, three-target ranging, pre/post-measurement target indication, single/continuous ranging, baud rate setting, laser launch tracking, and serial port update support. Its versatility suits it for laser distance measurement, UAS, optical pods, and boundary monitoring.

Specifications of FW-ED04 1535nm Eye-safe Laser Ranging Module

Laser Wavelength
1535±5nm
Eye Safety
Class 1
Divergence Angle
≤0.6mrad
Laser Energy
 ≥200 μJ
Launch Lens Diameter
Φ8mm
Receiver Lens Diameter
Φ16mm
Measuring Range(Reflectance 30%; visibility ≥ 5km.)
NATO objective(2.3m×2.3m) ≥4000m
Measuring human target(0.5m×1.7m) ≥1200m
Minimum Range
≤15 m
Ranging Accuracy
±2m
Ranging Frequency
Single, 1Hz ~10Hz
Number of multi-target detections
Up to 3 targets
False Alarm Rate
≤1%
Precision Rate
≥98%
Pin-in-lead package model
FWF08002-S06B13W5M
Supply Voltage
DC 3~5 V
Standby Power Consumption
≤1mW
Average power consumption
≤2.5 W @10 Hz
Peak Power Consumption
≤7 W @12 V
Weight
≤32±1 g
Dimention (L×W×H)
48×30.5×21mm
Operation Temperature
-40~＋70℃
Storage Temperature
-55~＋75℃
Impact Resistance
Meet the MIL-STD-810G testing standard
Vibration Resistance
Meet the MIL-STD-810G testing standard


Outline Dimension(mm)
