TE Connectivity BJE-80 Aerospace-Grade In-Line Diode Splice Assembly with Unidirectional-Conduction Diode and Flame-Retardant Heat-Shrinkable Sealing for AWG 26–20 Wire
TE Connectivity BJE-80 Aerospace-Grade In-Line Diode Splice Assembly with Unidirectional-Conduction Diode and Flame-Retardant Heat-Shrinkable Sealing for AWG 26–20 Wire
Specifications
Part Number :
BJE-80
Applicable wire gauge :
AWG 26–20 (conductor cross-sectional area approx. 0.12–0.5 mm²)
Model Number :
BJE 80
OEM :
TE Connectivity
Delivery Time :
5-8 working days
MOQ :
100
Supply Ability :
1000/year
Connection/Packaging Method :
Crimp+ Heat Shrink
Payment Terms :
T/T
Embedded components :
Unidirectional-conduction diode
Brand Name :
TE Connectivity
Description
TE Connectivity / Deutsch BJE-80 Aerospace-Grade In-Line Diode Splice Assembly
Product Introduction
The BJE-80 is an aerospace-grade in-line diode assembly manufactured by TE Connectivity (Deutsch). It features an integrated rectifier/isolation diode and is encased in flame-retardant, aerospace-grade heat-shrinkable sealing tubing capable of withstanding extreme temperatures. This assembly is specifically designed for applications requiring unidirectional conduction, signal isolation, and relay surge protection in high-reliability wiring harnesses.
Product Specifications
Item Description
OEM TE Connectivity
Part Number BJE-80
Embedded Components Unidirectional-conduction diode
Applicable Wire Gauge AWG 26-20 (conductor cross-sectional area approx. 0.12-0.5 mm²)
Connection/Packaging Method Crimp + Heat Shrink

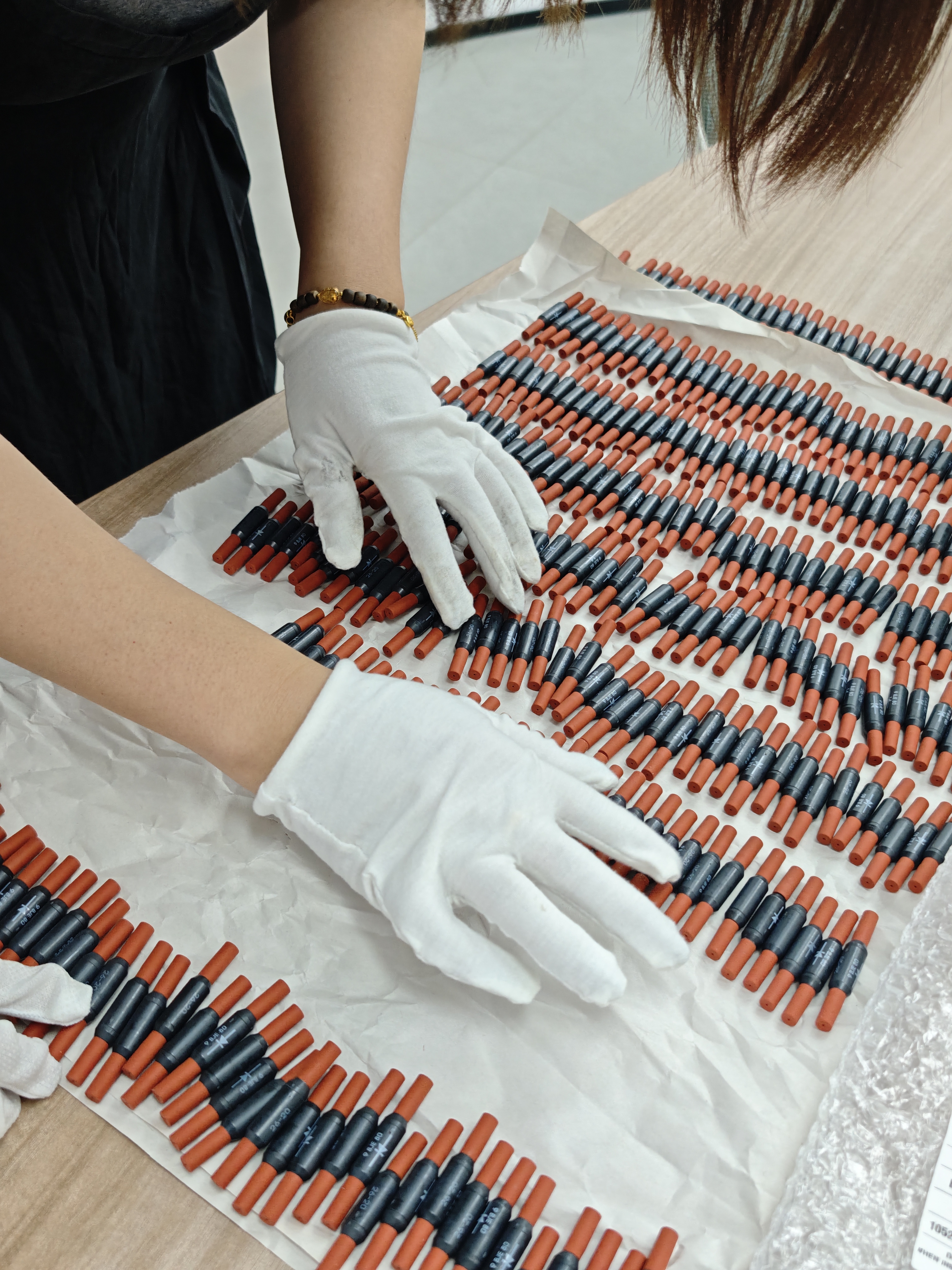

Appearance and Markings The black main sleeve is marked with a diode symbol, "9 BJE 80," and "26-20," and features red insulating protective tubing at both ends.
Compliance and Certification Complies with aerospace-grade wiring harness standards and SAE/MIL specifications.
Application Scenarios
  • Unidirectional conduction and reverse-polarity protection: Protects onboard circuitry and sensitive electronic components by preventing reverse polarity or back-feeding current.
  • Inductive EMF suppression: Commonly used in circuits with inductive loads—such as relays and solenoid valves—to absorb reverse voltage spikes (flyback protection).
  • Signal isolation: Enables unidirectional signal isolation in multi-channel control systems or complex wiring harness logic, preventing cross-circuit interference.
  • Environmental sealing: Upon heating, the internal adhesive layer of the heat-shrink tubing melts to create a complete seal, providing resistance to water, moisture, and oil, as well as performance reliability at high altitudes and low pressures.
Product Images
TE Connectivity BJE-80 Aerospace-Grade In-Line Diode Splice Assembly with Unidirectional-Conduction Diode and Flame-Retardant Heat-Shrinkable Sealing for AWG 26–20 Wire TE Connectivity BJE-80 Aerospace-Grade In-Line Diode Splice Assembly with Unidirectional-Conduction Diode and Flame-Retardant Heat-Shrinkable Sealing for AWG 26–20 Wire
