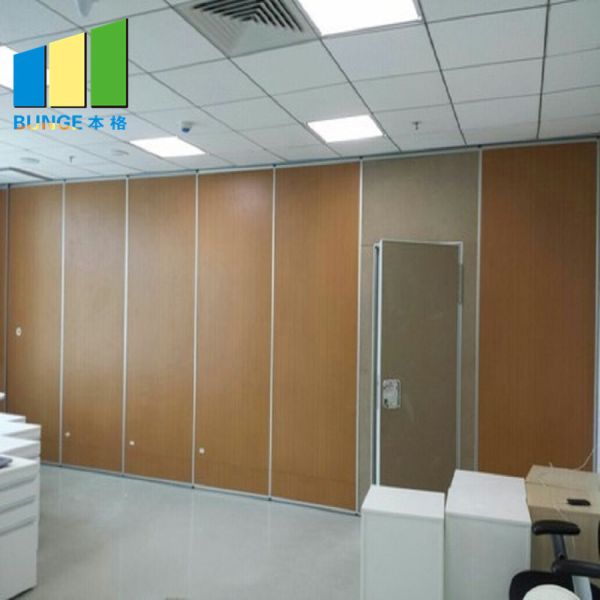

Dubai Conference Center Acoustic Room Dividers Operable Wall Partition
Dubai Conference Center Acoustic Room Dividers Operable Wall Partition
Dubai Conference Center Acoustic Room Dividers Operable Wall Partition
Dubai Conference Center Acoustic Room Dividers Operable Wall Partition
Dubai Conference Center Acoustic Room Dividers Operable Wall Partition
Dubai Conference Center Acoustic Room Dividers Operable Wall Partition
Dubai Conference Center Acoustic Room Dividers Operable Wall Partition
Dubai Conference Center Acoustic Room Dividers Operable Wall Partition
Dubai Conference Center Acoustic Room Dividers Operable Wall Partition
Dubai Conference Center Acoustic Room Dividers Operable Wall Partition
Specifications
Brand Name :
EBUNGE
Model Number :
65 mm acoustic room dividers
Certification :
ISO 9001
Place of Origin :
Guangzhou, China
MOQ :
No MOQ, small quantity welcome
Price :
$82-98 per square meter.
Payment Terms :
T/T, Western Union
Supply Ability :
50000 square meters per month
Delivery Time :
7-15 days
Packaging Details :
Paper carton, outside with wooden box.
Product name :
Acoustic room dividers
Application :
Conference center partition walls
Based board :
9 mm MDF Board
Pass door :
Single or double
Sound insulation :
Max 53
Track system :
Anodized aluminum 6063-T6
Description

Dubai Conference Center Acoustic Room Dividers Operable Wall Partition

Acoustic room dividers advantages

◆ Junction of acoustic room dividers modules meet requirements for corner, three or four way abutments.

◆ The acoustic room divider is a hanging system.Top hung without track at floor level.


◆ Retractable acoustic seals at top and bottom, operated either by quick release handle or semi-automatically with electronic controls.

◆ Acoustic room dividers panel finishes include vinyl, veneer, melamine laminate, a magnetic dry wipe enamelled writing surface or paint.

◆ Single or two point suspension for centre or remote parking options.


◆ The acoustic room dividers are made of high quality 6063-T5 aluminum materials,all of them are strong and wear resistant.

Dubai Conference Center Acoustic Room Dividers Operable Wall Partition

Technical information

Model BG65 Series BG80 Series BG100 Series BG High-Series
Suspensionsystem Aluminum hanging Steal Hanging
Basic Thickness 65 mm 80 mm 100 mm 100 mm
Total thickness 65/75/85/95mm 80/90/100/110mm 100/120/130mm 100/120/130mm
Max Height Up to 3800 mm Up to 6000 mm Up to 8000 mm Up to 15000 mm
Width 600-1230mm 600-1230mm 800-1230mm 800-1230mm
Floor/Ceiling Sealing Strength Telescopic aluminum tube with rubber strip.
Side walls sealing strength Double seal tape
Sound insulation level 26-30 db 28-34 db 32-40 db 42-52 db
Panel structure Aluminum frame with wooden keel Aluminum frame with steel keel
Surface material Melamine laminate/fabric/PU leather/wallpaper/veneer/customized

Dubai Conference Center Acoustic Room Dividers Operable Wall Partition

Acoustic room dividers accessories

Tracks:Made of good quality anodized aluminium 6063-T5 materials,hanging the acoustic room dividers panels with wheels.

Wheels/Rollers:It is the carrier for the acoustic room dividers,let the panels move more flexibly.Pulley bearing is more than 1600 KGS.

Connectors:Made of anodized aluminium 6063-T5 aluminum tracks,“L”, “T”, “＋”types are available.

Rubber/vinyl seal:Made of Nitrile Butadiene Rubber(NBR+PVC),durable and perfect for sound insulation,wear-resistant.

Rock Wool:Density of 60kg/m3,help us reduce the noise and heat.

Handle:Operate the retractable being up and down.

Retractable mechanism:Control the movement of the top and bottom seal to form a excellent sound insulation performance.

Magnetic Strip:Ferrite plastic magnetic material will be used in between aluminum profiles to enhance acoustic performance of the operable walls.

MDF board:9 mm thickness,density of 760kg/m3,absorbent thickness expansion rate is less than 15%.Formaldehyde emission is 34mg/100g.

Dubai Conference Center Acoustic Room Dividers Operable Wall Partition
