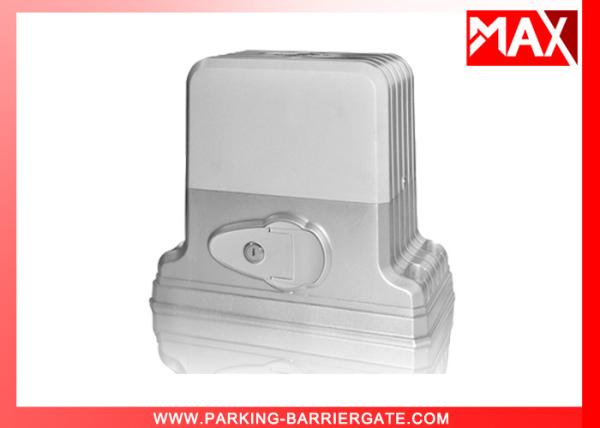

Gate Operators Type Sliding Gate Opener Infrared Photocell Socket Delay Closing
Gate Operators Type Sliding Gate Opener Infrared Photocell Socket Delay Closing
Specifications
Brand Name :
MAX
Model Number :
MX-002
Certification :
CE, ISO, SGS
Place of Origin :
China
MOQ :
1 Sets
Price :
Negotiation
Payment Terms :
Western Union, T/T,Paypal
Supply Ability :
1000sets/month
Delivery Time :
3-10 working days after received your payment
Packaging Details :
Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Max Loading :
1800KGS
Power Supply :
AC220V/110V±10% 50/60Hz
Open(close) Speed :
V=12m/min
Rated Power :
200w
Working Temperature Of Motor: :
-25 To +55 Celsius Degree
Output Gear Module: :
M=4
Description

Gate Operators Type Sliding Gate Opener Infrared Photocell Socket Delay Closing

specifications:

Power supply AC220/AC110V±10%V, 50Hz
Electronic Controller Microcontroller Based
Safety Detection Over Current Detection
Safety Barrier Infrared Beam Sensor (optional)
Mechanical
Model MX-002
Max. Gate Weight 1000 kg/1800kg
Motor speed 1800 rpm
Gate moving speed 11m/min /13.2m/min
Gate Limit type Intelligent Position Detection/ Magnetic Limit Switch (optional)
Operating distance ≤ 50m Frequency:433.92 MHz
Remote control mode Close/ Open/ Stop/ Pedestrain Open
Auto close time 0~99 sec (Adjustable)
Noise ≤65dB
Packing size 36*29*34 cm
Environmental temperature -35°C to +85°C

Each kit includes:

  • 1 x motor
  • 2 x remote controllers
  • 1 x control panel
  • 1 x base plate
  • 2 x magnets
  • 1 x user's manual

Functions of sliding gate operators:

  • Totally integrated electrical mechanical system (excludes racks)
  • Control board interface for optional impact-proof infrared photocells
  • Alarm lamp interface
  • Automatic delayed closing
  • Adjustable resistance sensitivity
  • Auto gate stop and re-open when an obstacle is encountered
  • Wireless remote control or wired remote control are optional

Sliding gate operators description:

  • Single phase
  • Speed up to 600mm per second
  • Manual override release clutch
  • Basic features means easy to set up
  • Soft starting and stopping function
  • All electric enclosed in a protective enclosure
  • 100% duty cycle

Others information of sliding gate opener:

  • Guarantee time: 1 year
  • Delivery deadline: 8 days delivery after receive your payment
  • Package: 1 set in a standard carton packing
  • Minimum order
Packing list
Name Quantity Unit Remark
Sliding gate operator 1 set Necessary
Remote control 2 pcs Necessary
Internal hexangular bolt 4 pcs M8*40
Internal hexangular bolt 4 pcs M6*16
Left limit iron 1 pcs Necessary
Right limit iron 1 pcs Necessary
Base board 1 pcs Necessary
Release key 2 pcs Necessary
Manual 1 pcs Necessary
Infrared photocell 1 set Optional
Radio emitter 1 set

Optional
