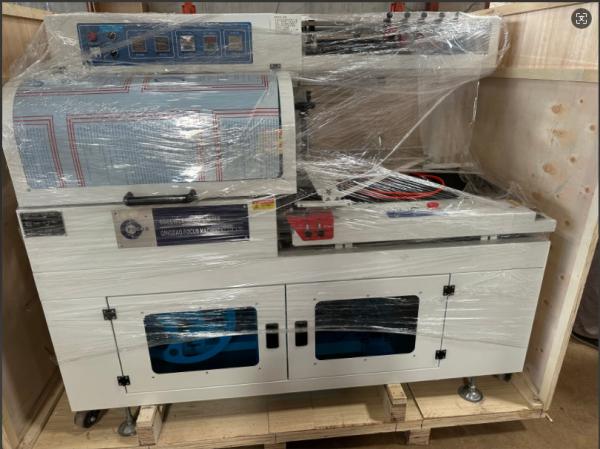

Automatic L Bar Sealer Side Sealing Heat Shrink Packaging Machine 220V
Automatic L Bar Sealer Side Sealing Heat Shrink Packaging Machine 220V
Specifications
Brand Name :
FOCUS
Model Number :
FMPM
Certification :
SGS, FSC，ISO
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, L/C
Packaging Details :
Sea-Worthy Wooden Case
Product name :
Heat shrink packaging machine
Function :
Used for small thermal paper rolls packaging
Voltage :
220V/50-60Hz
Power :
1.5kw
Dimension size :
1900*1030*1430mm
Description
Automatic L Bar Sealer Side Sealing Heat Shrink Packaging Machine 220V
Product Attributes
Attribute Value
Product name Heat shrink packaging machine
Function Used for small thermal paper rolls packaging
Voltage 220V/50-60Hz
Power 1.5kw
Dimension size 1900*1030*1430mm
Product Description

AUTOMATIC HEAT SHRINKABLE PACKAGING MACHINE

Automatic L Bar Sealer Side Sealing Heat Shrink Packaging Machine 220V
Specifications
Paper roll diameter 30-90mm
Paper roll length 35-90mm
Transmission belt length 125mm
Breaking off speed 125 times/min(max)
Flat punching speed 125 times/min(max)
Transmission belt speed 40-500mm/s
Plastic package propelling speed 22 times/min(max)
Plastic package propelling length 30-400mm
Voltage 220V/50HZ
Machine weight 380kg
Automatic L Bar Sealer Side Sealing Heat Shrink Packaging Machine 220V
Technical Parameters
Model number FQL550
Current source 220V/50-60Hz
Rate of work 1.5KW
Air supply 0.6-0.8Mpa
Maximum package size L+H(H<150mm) <600mm
Maximum package size W+H(H<150mm) <400mm
L * W Cutter size 670*570mm
Applicable shrinkage film POF/PE
Production rate 15-25bags/min
Shrinkage ratio of optimal film 50%~60%
Table height (adjustable) 780mm
Weight 350kg
Outline dimension 1900×1030×1430mm
Wooden cabinet size 1950×1100×1650mm
Automatic L Bar Sealer Side Sealing Heat Shrink Packaging Machine 220V Automatic L Bar Sealer Side Sealing Heat Shrink Packaging Machine 220V Automatic L Bar Sealer Side Sealing Heat Shrink Packaging Machine 220V
Company Profile
Automatic L Bar Sealer Side Sealing Heat Shrink Packaging Machine 220V

QINGDAO FOCUS Machinery Co., Ltd.

Qingdao FOCUS MACHINERY Co., Ltd, founded in 1990s, was dedicated to manufacture paper machines and provide production line for paper industry.

Based on leading technologies, experiences and knowhow, we could meet a variety of requirements and offer turn key projects.

We are also one of the subsidiary companies of Goodwill Group Limited who was founded in U.K. Since we built more than 30 successful production lines and exporting lots of machines in South America, Asia, Africa, Europe, etc., more customers desired to visit us personally, not only check capacity but also to see our machines how to work and paper quality made by them, so 15 years ago we built paper factory by machines and production lines we produced and designed.

Automatic L Bar Sealer Side Sealing Heat Shrink Packaging Machine 220V Automatic L Bar Sealer Side Sealing Heat Shrink Packaging Machine 220V
