Splicer Innov350 Overlapping Automatic Paper Splicer 3500mm Max Width
Splicer Innov350 Overlapping Automatic Paper Splicer 3500mm Max Width
Splicer Innov350 Overlapping Automatic Paper Splicer 3500mm Max Width
Splicer Innov350 Overlapping Automatic Paper Splicer 3500mm Max Width
Specifications
Supply Ability :
Strong production capacity
Power source :
380V, 50Hz, 20A
Model Number :
FY-Innov350 I/II
Splice type :
Overlapping
Price :
Negotiable
Time for completion of paper splicing reaction :
About 1 second
Paper Brake :
Pneumatic brake/magnetic powder brake
Payment Terms :
L/C,D/A,D/P,T/T
Air source :
Dry and clean air source with a minimum of 0.6MPa
Delivery Time :
30-45 Working Days
Control power supply :
DC24V
Place of Origin :
CHINA
The Maximum Width :
3500mm
Brand Name :
FENGYUAN GROUP
Packaging Details :
Standard Export Wooden Case with Protective Wrapping
Configuration :
Lengthen type can be customized, with paper pulling motor in different models
MOQ :
1 Set
Base paper weight :
50g~350g/m², high gram and heavy duty can be customized
Description

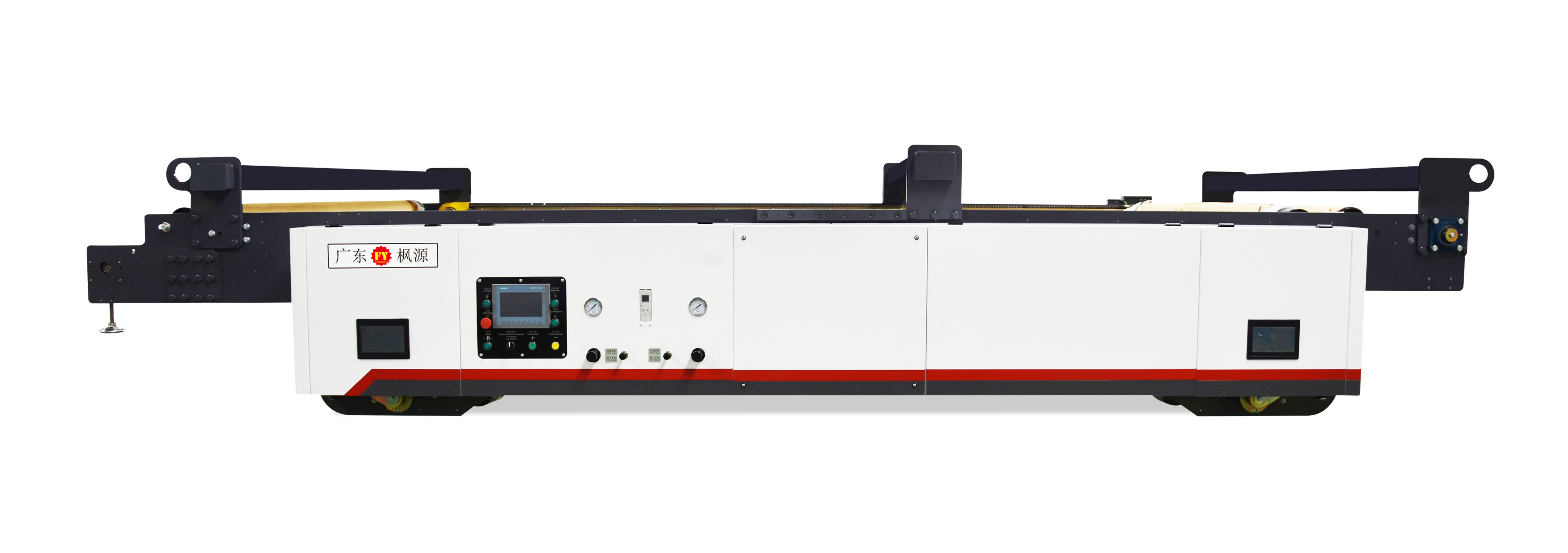

FY-Innov350 I/II with Single Servo Closed Loop/Double Servo Closed Loop
Model Features
  • Firm and atmospheric structure with easy maintenance.
  • Normal winding layers, suitable for corrugated paper industry.
  • Single servo closed loop/double servo closed loop control system with servo controller + high-performance synchronous servo motor for paper storage car control.
  • Synchronous servo control for car movement.
  • Configurable minimum diameter automatic paper splicing function.
  • Equipped with touch screen display for equipment diagnosis, maintenance, and control.
  • Real-time monitoring of base paper diameter, weight, tension, and current running speed.
  • Automatic tension adjustment based on diameter changes.
