Siemens 400m/ Min 7.5KW Toilet Paper Converting Machine Horizontal PLC
Siemens 400m/ Min 7.5KW Toilet Paper Converting Machine Horizontal PLC
Siemens 400m/ Min 7.5KW Toilet Paper Converting Machine Horizontal PLC
Siemens 400m/ Min 7.5KW Toilet Paper Converting Machine Horizontal PLC
Siemens 400m/ Min 7.5KW Toilet Paper Converting Machine Horizontal PLC
Siemens 400m/ Min 7.5KW Toilet Paper Converting Machine Horizontal PLC
Siemens 400m/ Min 7.5KW Toilet Paper Converting Machine Horizontal PLC
Siemens 400m/ Min 7.5KW Toilet Paper Converting Machine Horizontal PLC
Specifications
Brand Name :
ZODE
Model Number :
ZD-E250
Certification :
CE,ISO
Place of Origin :
CHINA
MOQ :
1 SET
Price :
USD 100000-300000
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
60 sets per month
Delivery Time :
60-90 days
Packaging Details :
wooden case
After-sales service provided :
Engineers available to service machinery overseas,Online support,Video technical support,Field installation,commissioning and training
Condition :
New
Type :
toilet paper and kitchen towel making machine
Product type :
paper cutting machine,toilet paper converting machine,paper rewinding machine
Processing type :
Paper Slitting and Rewinding Machine,paper machine,Embossing Machine,toilet paper maker,Cutting Machine
Application :
Paper Industry,Slitting large jumbo roll into small rolls,Paper slit
Speed :
400m/min
Name :
toilet paper rewinder machine,Toilet tissue paper making machine
Description

New Paper Tissue Production Machines Kitchen Towel And Toilet Paper Making Machinery

Technical Parameter:
Machine Model
ZD-E
Usage
Toilet tissue/kitchen towel/maxi roll/pubic roll production
Machine peed
200~400m/min
1.Producing toilet paper 200-400m/min
2.when equipped with glue lamination system for production kitchen towel 200-400 m/min (optional unit, need customized)
3.If big head rewinding for production JRT Rolls 200-400m/min (optional unit, shall be customized)
Unwinding system
Horizontal type unwind stand, delivering paper with pneumatic wide belt, with individual tension control device. Pneumatic paper
loading
Jumbo roll stand
2 stands (can be customized 3-4)
Max. width of jumbo roll
Max. outer diameter of jumbo roll
Ø1200mm or 1500mm
Inner diameter of jumbo roll core
Ø76.2mm (3”), other size to be specified by customer
Toilet paper embossing unit
full embossing, steel to rubber
Kitchen towel lamination unit
Double embossing, point to point lamination or nested lamination
Perforation system
4pcs upper blades rotating & 1pcs bottom blade fixed
Perforating pitch
4pcs blades, size 90-250mm;
Rewinding system
Automatic prompting to add core, replacing core;
Automatic cutting, gluing, tail-sealing
Diameter of finished products
Ø90-Ø150mm (Tightness can be adjustable), other dia can be OEM if wanna produce Industrial roll
Inner core dia of finished products
Ø30-Ø76.2mm
Sheet of finished product control
Increase gradually, up to the setting sheets
Parameter setting
touching Screen, Siemens Brand
Programmable controller
PLC, Siemens Brand
Driving system
Stepless gearbox, synchronous belts and chains for transmission
Pneumatic system
3HP air compressor, the mini pressure 5kg/c㎡pa (Provided by customer)
Counting system
Electronic counter
Counting controller
Diameter & sheet counting controller
Motor
Three phase motor
Power
7.5-30Kw (varialb frenquency speed regulating) 380V, 50Hz
Optional unit
1. Embossing unit
2. Glue lamination unit
3. Edge embossing

Hi, Boss, are you looking for a toilet paper roll or kitchen towel production line?

To produce toilet paper rolls, there are 3 machines operation together from raw material to finished packed roll.

1. Toilet Paper Making Machine
2. Toilet Paper Cutting Machine
3. Toilet Paper Packing Machine

We are very professional to work on different production solution for your reference according to your production capacity
demands. Can you tell us your demands?

The following introduction is about the toilet paper rewinding machine.

1. Unreel with tension to produce high and low level raw paper.

2. Knife-blade is strong enough to operate fast without noise and shaking.

3. Electric controlled counter to ensure the weight of product.

4. As request, the machine can equip with single color or double colors printing device,the pattern is vivid.

5. The machine can equip with two sets of embossing device according to requirement.

6. The max speed of Automatic Color Printing Toilet Paper and Kitchen Towel Rewinding Machine can reach 200 m/min & the production speed can running in 150-180m/min stably.
7. Easy operation and maintenance, save space, need only one operator transfer tissue log after running machine

8. Customer can select our automatic tissue log separator so that greatly improve production efficiency and ensure tissue without
secondary pollution by human hands

9. The machine will stop when the paper broken. It avoid waste caused by no paper or paper broken.
Jumbo roll stands:
1. it is used to unwinding big jumbo roll.
2. it equipped with uniquely designed pneumatic loading unit, which will be easy load and change jumbo rolls to save your worker labor, and improve production efficient.
3. there are 2 jumbo roll stands, also can be customized 3-4 stands as your demands.
4. The whole stand structure is wrong wallboard type, steady running.
5. It is Independent motor drive, with individual tension control device.
6. The jumbo roll dia can be 1200mm ,1500mm,2500mm or otherSiemens 400m/ Min 7.5KW Toilet Paper Converting Machine Horizontal PLC

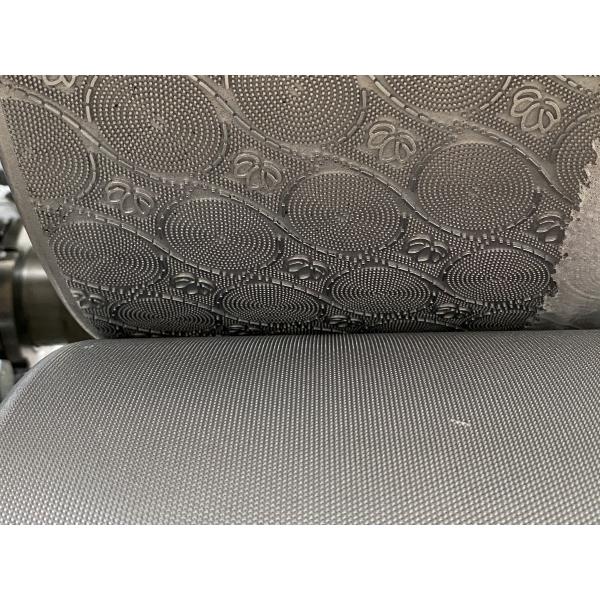

Embossing patterns show:

Siemens 400m/ Min 7.5KW Toilet Paper Converting Machine Horizontal PLC

Why Need Embossing ?

1. Embossing can make the tissue looks more beautiful and make more fluffy.

2. It increasing the thickness of tissue paper to save cost and more better hand feeling.

3. We can provide some pretty patterns for your selection and customized design also accepted.
4. Independent cylinder control paper tension.

5. Steel rolls processing way: high level electric carving +Laser engraving.

6. Embossing roll dia: 240mm-400mm according to machine model.
PLC controller:
1. PLC: Siemens / Germany
2. Inverter: Siemens / Germany
3. Touching Screen: Siemens / Germany
4. Main Bearing: NSK / Japan
5. Servo Motor: Mitsubishi / Japan
6. Voltage electric compliance: Omron/Japan

Siemens 400m/ Min 7.5KW Toilet Paper Converting Machine Horizontal PLC
