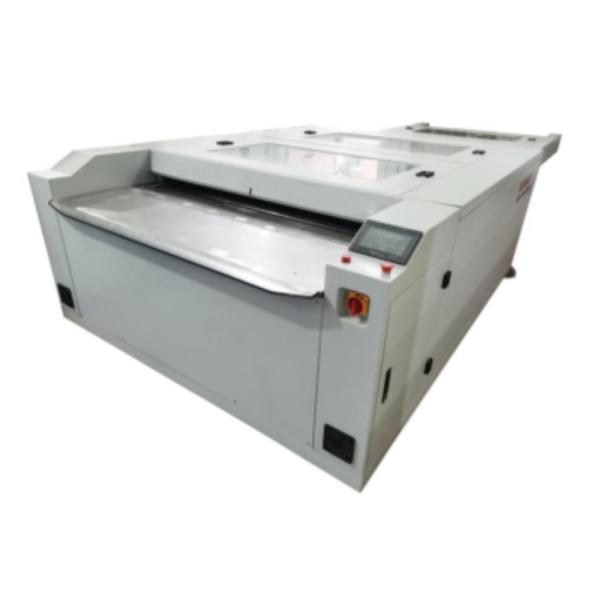

4AW4260 Wired HD Efficiency Solvent Saving Flexo Plate Washing Machine
4AW4260 Wired HD Efficiency Solvent Saving Flexo Plate Washing Machine
Specifications
Brand Name :
PRINTYOUNG
Model Number :
4AW4260
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
US 22000 Set
Payment Terms :
L/C, T/T
Supply Ability :
30 Set/Sets per Month
Delivery Time :
45 days
Packaging Details :
Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Model No. :
4AW4260
Wash Working Wize :
1530 * 1070 mm
Machine Shape Size :
3900 * 1850 * 1230 mm
Mainframe Size :
2200 * 1850 * 1230 mm
Platform Size :
1700 * 1570 * 260 mm
Voltage :
220/380V (special voltage can be customized)
Power :
4.9 kw
Weight :
1300kgs
Description
4AW4260 Wired HD Efficiency Solvent Saving Flexo Plate Washing Machine
4AW4260 Wired Flexo Plate Washing Machine
Features
The fourth generation automatic high precision plate washing machine is the latest plate washing machine developed by Printyoung.Simple structure and complete functions, stable transmission,stable and durable,simple maintenance and convenient repair,washing plate efficiency,good quality and solvent saving.Plate washing platform with high strength aluminum alloy assembly structure,reduce welding deformation,to ensure the flatness of the platform.Solvent box bottom is made of 8K stainless steel plate,funnel design,avoid solvent residue in the water tank,can quickly return to storage solvent box sealed preservation,reduce solvent volatilization.Brush fixed wall board with high strength aluminum alloy,all CNC processing,to ensure the accuracy of each brush.Graphite copper bushing is used to ensure the precision and durability.Flat brush swing and round brush rotation driven by high-end servo stepper motor,flat brush swing speed and round brush rotation speed can be adjusted,suitable for all kinds of flexo high-precision cleaning.Flat brush adopts spring simple structure,easy to adjust brush height and replace brush.Round brush with steel coupling installation and connection,to ensure accuracy and brush replacement simple and quick.Configure concentration detection,set the solvent concentration automatically replace the old solvent.Reasonable exhaust design can minimize the emission of solvent odor to the workshop,to ensure fresh workshop air.
Technical Parameters
4AW Wired Flexo Plate Washing Machine
Model No.
4AW4260
 4AW5280 4AW52100
Wash Working Size
1530 * 1070 mm
 2030 * 1320 mm 2540 * 1320 mm
Machine Shape Size
3900 * 1850 * 1230 mm
 4900 * 2100 * 1230 mm 5470 * 2100 * 1230 mm
Mainframe Size
2200 * 1850 * 1230 mm
 2700 * 2100 * 1230 mm
Platform Size
1700 * 1570 * 260 mm
 2200 * 1820 * 260 mm 2670 * 1820 * 260 mm
Voltage
220/380V (special voltage can be customized)
Power
4.9 kw
 5.5 kw 5.6 kw
Weight
1300 kgs
 1650 kgs 1700 kgs
