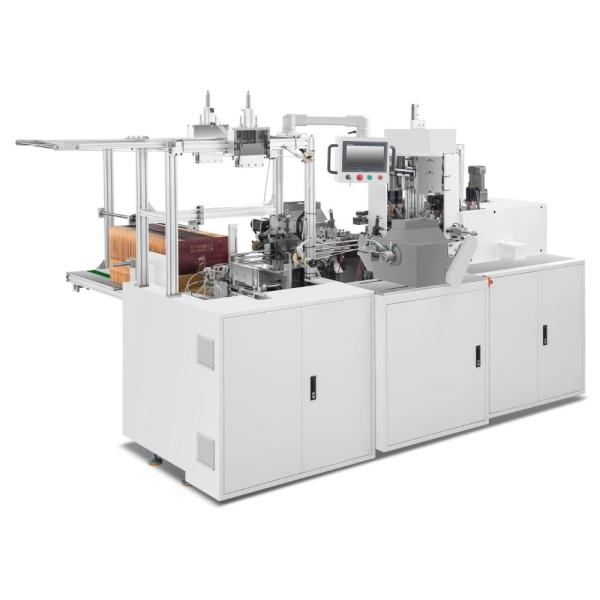

PRY-450A Paper Bag Rope Insertion Machine
PRY-450A Paper Bag Rope Insertion Machine
Specifications
Brand Name :
PRINTYOUNG
Model Number :
PRY-450A
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
US 26000 Set
Payment Terms :
L/C, T/T
Supply Ability :
30 Set/Sets per Month
Delivery Time :
30 days
Packaging Details :
Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Model :
PRY-450A
Bag Surface Width :
180 ~ 450 mm
Bag Surface Height :
180 ~ 450 mm
Paper Weight :
160 ~ 300 gsm
Paper Bag Hole Distance :
75 ~ 150 mm
Rope Length :
320 ~ 450 mm
Production Speed :
35 ~ 45 pcs/min
Machine Size :
2800 * 1350 * 2200 mm
Machine Weight :
2700 kg
Total Power :
12 kw
Description
PRY-450A Paper Bag Rope Insertion Machine
PRY-450A Paper Bag Rope Insertion Machine
Features
Handbag rope insertion machine:automatic bag feeding,non-stop bag reloading,rope wrapping plastic sheet,automatic rope insertion,counting and receiving bags,automatic alarm and other functions.
The punching position can be adjusted according to the bag,and the rope is suitable for three-strand rope,cotton rope,elastic rope,ribbon rope,etc.After inserting into the bag,the length of the rope can be adjusted.
The equipment perfectly combines the traditional rope-wrapped plastic sheet and rope threading,which reduces production costs and improves production efficiency.
Technical Parameters
PRY-450A Paper Bag Rope Insertion Machine
Model
PRY-450A
Bag Surface Width
180 ~ 450 mm
Bag Surface Height
180 ~ 450 mm
Paper Weight
160 ~ 300 gsm
Paper Bag Hole Distance
75 ~ 150 mm
Rope Length
320 ~ 450 mm
Bag Pull Cord
The length of the rope can be adjusted accordingto the matching of the bag and the rope
Production Speed
35 ~ 45 pcs/min
Machine Size
2800 * 1350 * 2200 mm
Machine Weight
2700 kg
Total Power
12 kw
Configuration
Rope Threading Machine Product Paper Bag Feeding System
In the case that the machine does not stop,it can realize uninterrupted feeding and improve the production efficiency of the machine.
Vacuum Bag Take System
Using the vacuum principle,the suction nozzle is attached to the paper bag to absorb the paper bag.And put the paper bag into the transfer station.Put its paper bag into the punching station.
Chain Transfer Station
The rotation of the gear is controlled by the motor to drive the chain,so that the station rotates.
Paper Bag Punching System
It is conveyed by the chain to the punching station,and the inductive switch detects the position of the bag.cylinder drives the needle rod to punch the bag.
Wrist Plastic Buckle Hemming
The cam is driven by the private server motor to drive the mold,and the paper bag is punched and the wrist plastic sheet is rolled at the same time.
Rope Take and Cut Module
The wrist rope wrapped with plastic sheet will be clamped by the rope clamping cylinder and pulled to the required length.And push the scissors to cut.
Rope Insertion Module
Hand the trimmed rope to the insert rope module.The cord clip will pick up the plastic pieces at both ends.Insert the punched position of the paper bag.
Extract Rope Clip
Increase the rope insertion depth. Re-insertion of the rope is to move the rope up and down through the private server motor to extract the rope into the bag.
Private server control driver,and circuit control.
