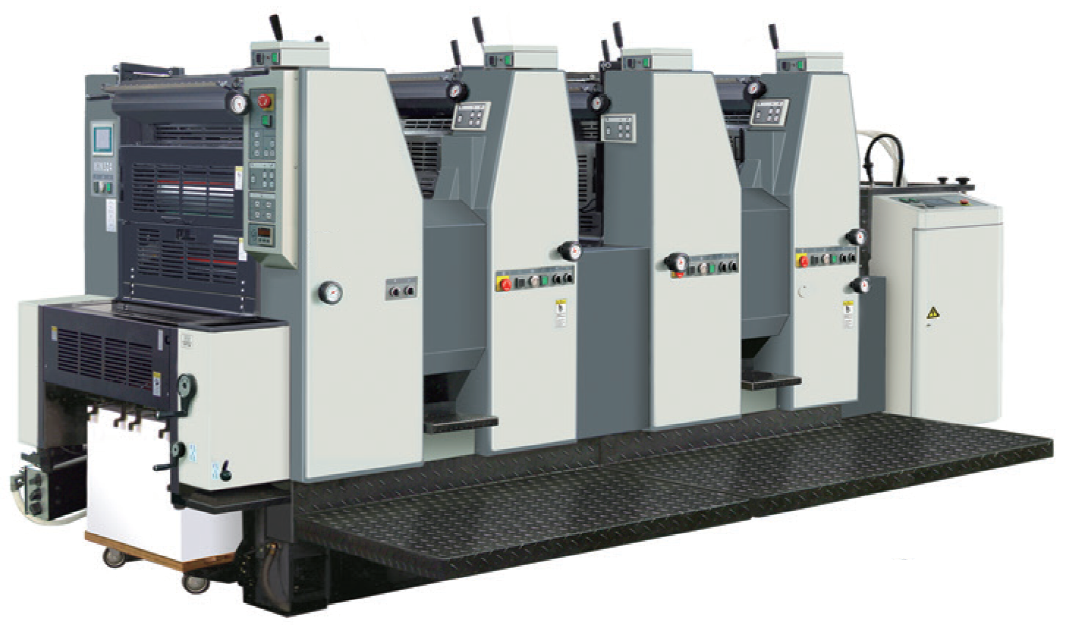

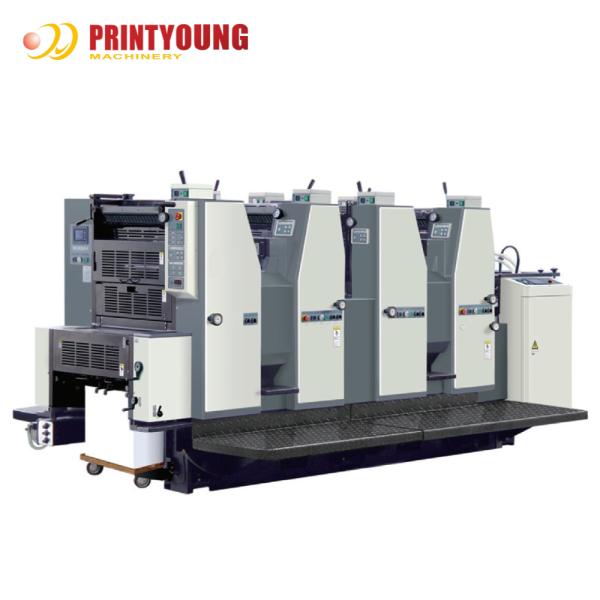

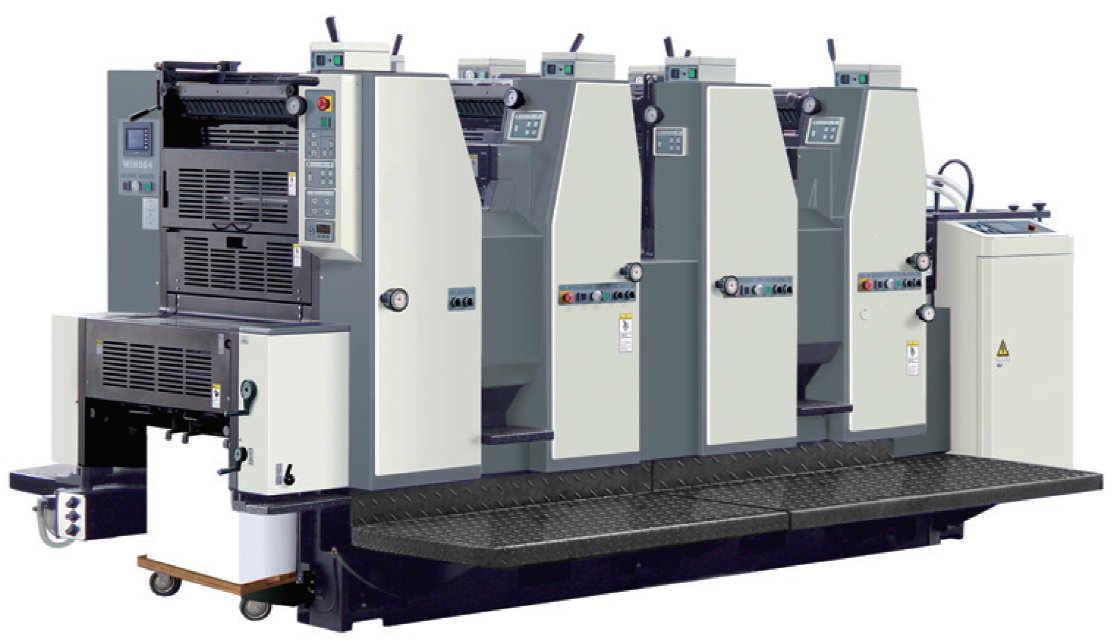

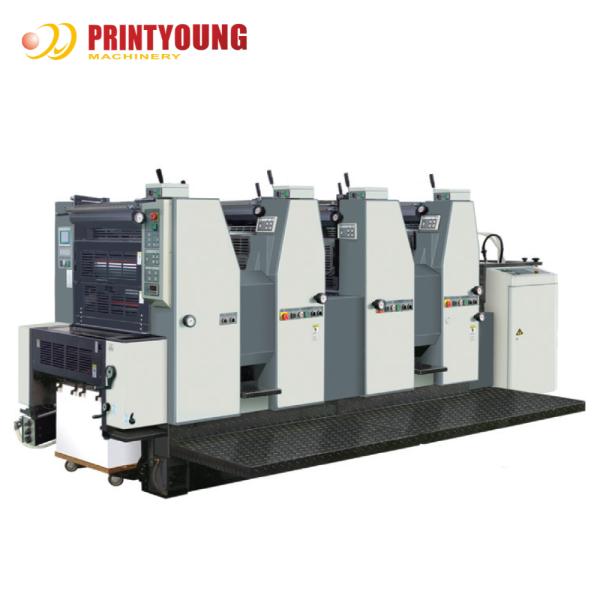

PRY-524,564 Four Colors Automatic Offset Printing Machine with Ethernet All-In-One Function
PRY-524,564 Four Colors Automatic Offset Printing Machine with Ethernet All-In-One Function
PRY-524,564 Four Colors Automatic Offset Printing Machine with Ethernet All-In-One Function
PRY-524,564 Four Colors Automatic Offset Printing Machine with Ethernet All-In-One Function
Specifications
Brand Name :
PRINTYOUNG
Model Number :
PRY-524,564
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD 118000 ~ 138000 Set
Payment Terms :
L/C, T/T
Supply Ability :
30 Sets per Month
Delivery Time :
40 days
Packaging Details :
Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Max. Paper Size :
520 * 375 mm , 560 * 400 mm
Min. Paper Size :
200 * 155 mm
Paper Thickness :
0.04 ~ 0.4 mm
Max. Printing Area :
505 * 350 mm , 545 * 380 mm
Printing Speed :
3000 ~ 12000 s/h
Plate Size :
510 * 400 mm , 550 * 430 mm
Total Plate Thickness :
0.3 mm
Blanket Size :
528 * 437 * 1.9 mm , 568 * 450 * 1.9 mm
Gripper Margin :
9 ± 1 mm
Wattage :
12 kw , 13 kw
Description
PRY-524,564 Four Colors Automatic Offset Printing Machine with Ethernet All-In-One Function
PRY-524,564 Four Colors Offset Printing Machine
PRY-524,564 Four Colors Automatic Offset Printing Machine with Ethernet All-In-One FunctionPRY-524,564 Four Colors Automatic Offset Printing Machine with Ethernet All-In-One Function
PRY-524,564 Four Colors Automatic Offset Printing Machine with Ethernet All-In-One Function
Features
* Heavy duty mechanism structure.Cast iron pedestal,frame,cylinders etc. have the good intension and tenacity,ensuring high stability and good printing impression.
* Under swing feeder,paper transferring structure is used high point gripper closed structure,insuring paper transferring system more stably.

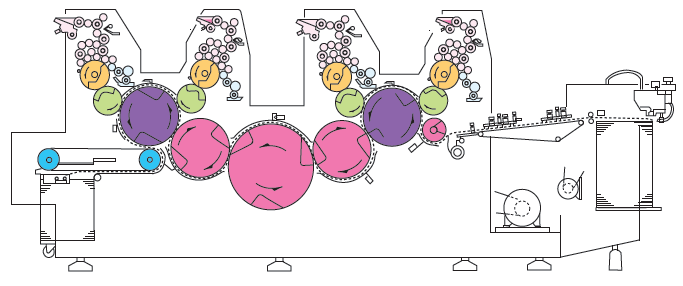

* Double diameter impression cylinder and triple diameter transferring cylinder are available,reducing the times of paper connection,improving register precision.
* Plate cylinder and blanket cylinder go through with bearer,running stably,ensuring qualified printing image.
* Plate adjustment function in vertical,lateral and cocking position.The minimum adjustment is based on 0.01mm,saving auxiliary adjustment time.
* Special design in paper feed head,paper board front lay,gripper and other equipment.Insuring all kinds of thick and thin paper printing.
* Paper fed continuously and stably,more suitable for thick and thin paper printing.
* Pneumatic control system,ensuring the press more stably.
* High precision imported bearing,ensuring cylinder impression even in the high speed rotation.
* Chromed cylinder,prolongs the operation life.
* Automatic centralized oiling system,prolongs the working life.
* Operators are under protection because of the installation of safety guard,adjustment door and protecting shield.
* Vacuum sucker table,3 sucker type paper feed tape insures all kinds of paper conveying.
* Semi-automatic plate loader and tightening equipment,make the plate loading more easy and convenient,shorten plate changing time,improving working efficiency.
* Blower sucker and suction wheel are available in paper delivery section,insuring the paper delivery both in high and low rotation.
* Auto ink roller cleaning equipment,shortens cleaning time,increases the color changed speed,reduces the labor work of operator.(Optional)
* Alcohol dampening solution,continuous water feed,insuring water balance during printing.
* Automatic water volume tracking device,the water volume could be changed according to the running speed of the machine after the water volume fixed.
* PLC device and touch-screen operating.
Technical Parameters
Model
PRY-524
 PRY-564
Max. Paper Size
520 * 375 mm
 560 * 400 mm
Min. Paper Size
200 * 155 mm
Paper Thickness
0.04 ~ 0.4 mm
Max. Printing Area
505 * 350 mm
 545 * 380 mm
Printing Speed
3000 ~ 12000 s/h
Plate Size
510 * 400 mm
 550 * 430 mm
Total Plate Thickness
0.3 mm
 0.3 mm
Blanket Size
528 * 437 * 1.9 mm
 568 * 450 * 1.9 mm
Number of Rollers
Ink rollers : 17 ; Water Rollers : 4
Gripper Margin
9 ± 1 mm
Registration System
Pull Side Guide (Diagonal Adjustment Possible)
Vertical Image Adjustment Range
± 20 mm
Vertical Image Micro Adjustment Range
± 1 mm
Lateral Image Micro Adjustment Range
± 2 mm
Declining Image Micro Adjustment Range
± 0.15 mm (Max. Printing Area)
Oiling System
Centralized Oiling System
Power
3Phase 380V 50Hz
Wattage
12 kw
 13 kw
Motor Wattage
Main Motor : 11 kw ; Pump Motor : 0.75 kw
Dimensions
4200 * 2300 * 1710 mm
 4200 * 2320 * 1710 mm
Net Weight
8000 kg
 8500 kg
Configuration
PRY-524,564 Four Colors Automatic Offset Printing Machine with Ethernet All-In-One Function

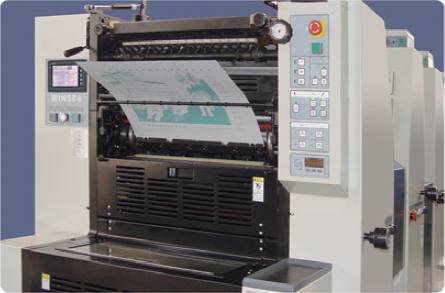

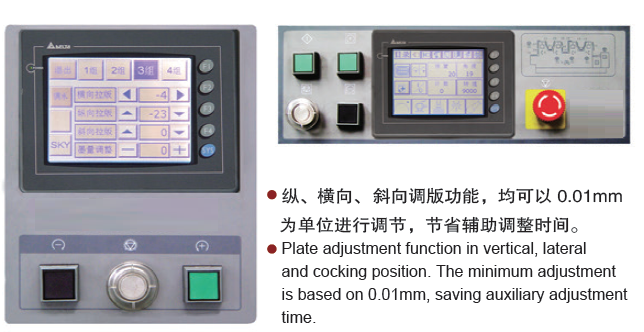

Plate adjustment function in vertical,lateral and cocking position.The minimum adjustment is based on 0.01mm,saving auxiliary adjustment time.
PRY-524,564 Four Colors Automatic Offset Printing Machine with Ethernet All-In-One FunctionPRY-524,564 Four Colors Automatic Offset Printing Machine with Ethernet All-In-One Function

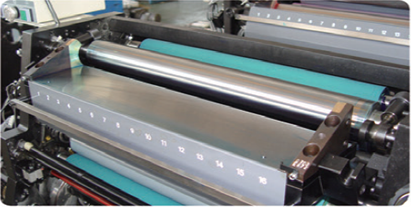

* Semi-automatic plate loader and tightening equipment,make the plate loading more easy and convenient,shorten plate changing time,improving working efficiency.

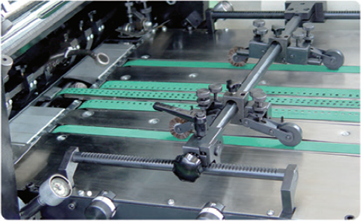

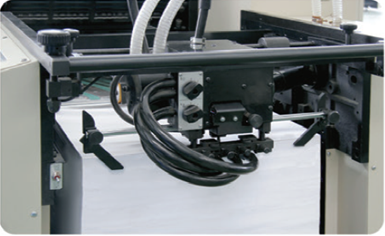

* Special design in paper feed head,paper board,front lay,gripper and other equipment’s,insuring all kinds of thick and thin paper printing.
* Paper feed continuously and stably,more suitable for thick and thin paper printing.
PRY-524,564 Four Colors Automatic Offset Printing Machine with Ethernet All-In-One FunctionPRY-524,564 Four Colors Automatic Offset Printing Machine with Ethernet All-In-One Function

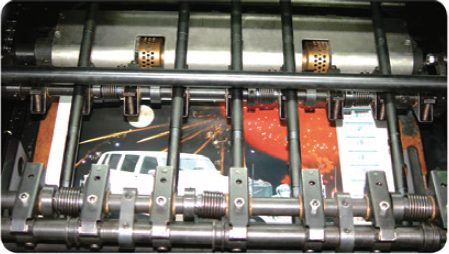

* Blower sucker and suction wheel are available in paper delivery section insuring the paper delivery both in high and low rotation.
* Vacuum sucker table,3 sucker type paper feed tape insures all kinds of paper conveying.
* Pneumatic control system.ensuring the press more stably.
* High precision imported bearing and helical gear,ensuring cylinder impression even in the high speed rotation.
* Chromed cylinder,prolongs the operation life.
* Automatic centralized oiling system. prolongs the working life.
* Operators are under protection because of the installation of safety guard and safety device.
PRY-524,564 Four Colors Automatic Offset Printing Machine with Ethernet All-In-One FunctionPRY-524,564 Four Colors Automatic Offset Printing Machine with Ethernet All-In-One Function

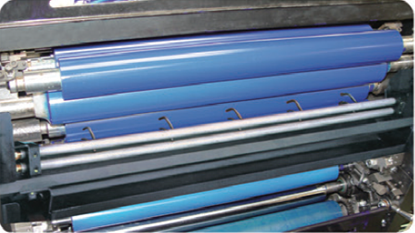

* Auto ink roller cleaning equipment, shortens the cleaning time,increases the color changed speed,reduces the labor work of operator.(Optional)
* Alcohol dampening solution.Continuous water feed,insuring water balance during printing.
* Automatic water volume tracking device, the water volume could be changed according to the running speed of the machine after the water volume fixed.
* Remote ink control (Optional)
* PLC device and touch-screen operating.
