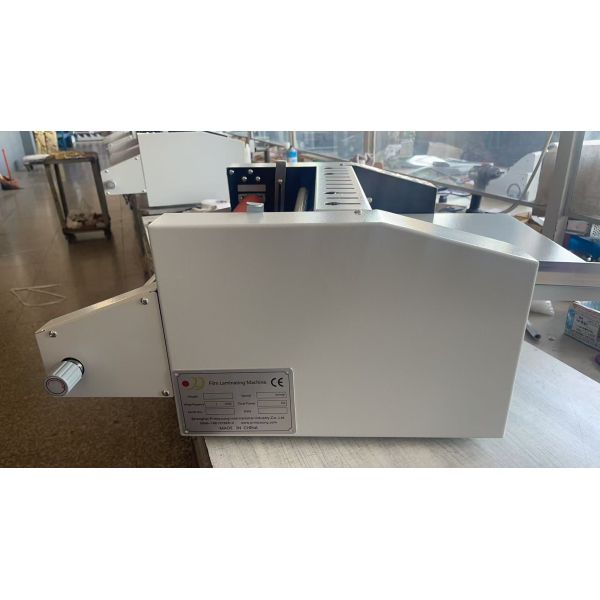

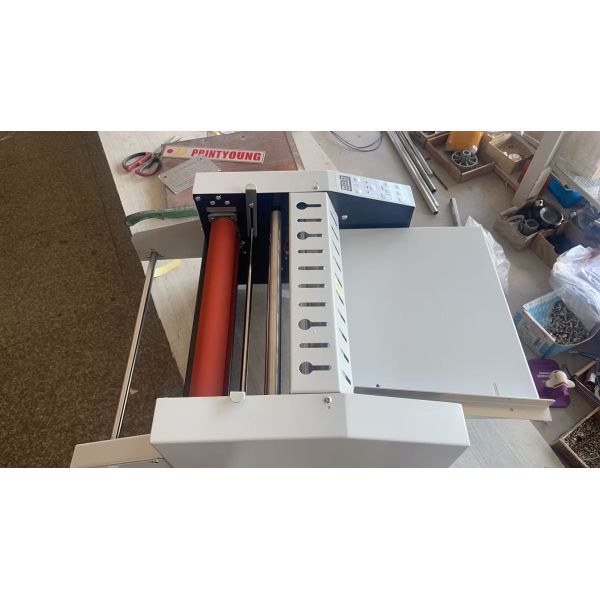

RD-V370FS Intelligent Computerized Paper Film Laminating Machine with Motor 110V/220V 1-3m/min 340mm Max Width
RD-V370FS Intelligent Computerized Paper Film Laminating Machine with Motor 110V/220V 1-3m/min 340mm Max Width
RD-V370FS Intelligent Computerized Paper Film Laminating Machine with Motor 110V/220V 1-3m/min 340mm Max Width
RD-V370FS Intelligent Computerized Paper Film Laminating Machine with Motor 110V/220V 1-3m/min 340mm Max Width
RD-V370FS Intelligent Computerized Paper Film Laminating Machine with Motor 110V/220V 1-3m/min 340mm Max Width
RD-V370FS Intelligent Computerized Paper Film Laminating Machine with Motor 110V/220V 1-3m/min 340mm Max Width
RD-V370FS Intelligent Computerized Paper Film Laminating Machine with Motor 110V/220V 1-3m/min 340mm Max Width
RD-V370FS Intelligent Computerized Paper Film Laminating Machine with Motor 110V/220V 1-3m/min 340mm Max Width
Specifications
Brand Name :
PRINTYOUNG
Model Number :
RD-V370FS
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD 450 Set
Payment Terms :
L/C, T/T
Delivery Time :
15 work days
Work Mode :
cold mounting , single side , double side
Heating Mode :
steel roll
Roll Diameter :
79 mm
Coating Temperature :
70 ~ 110 ℃
Film Thickness :
80 ~ 350 g
Membrane Core Diameter :
1in / 3in
Heating Time :
5 ~ 10 min
Film Covering Speed :
1 ~ 3 m/min
Max. Film Width :
340 mm
Display Mode :
digital display
Description
RD-V370FS Intelligent Computerized Paper Film Laminating Machine with Motor 110V/220V 1-3m/min 340mm Max Width
RD-V370FS Intelligent Laminating Machine
RD-V370FS Intelligent Computerized Paper Film Laminating Machine with Motor 110V/220V 1-3m/min 340mm Max WidthRD-V370FS Intelligent Computerized Paper Film Laminating Machine with Motor 110V/220V 1-3m/min 340mm Max WidthRD-V370FS Intelligent Computerized Paper Film Laminating Machine with Motor 110V/220V 1-3m/min 340mm Max Width
Technical Parameters
Work Mode
cold mounting , single side , double side
Heating Mode
steell roll
Roll Diameter
79 mm
Coating Temperature
70 ~ 110 ℃
Film Thickness
80 ~ 350 g
Membrane Core Diameter
1in / 3in
Heating Time
5 ~ 10 min
Film Covering Speed
1 ~ 3 m/min(1 ~ 9 speed opition)
Max. Film Width
340 mm
Display Mode
digital display
Control Mode
key temperature control
Pressurization Mode
pull the pressurized spring
Paper Feed Mode
manual
Automatic Paper Collection Function
automatic winding structure
Automatic Tension Function
no
Dashed Line Function
perforating knife
Crimp Prevention Function
gravity stretch anti-crimp design
Trimming Function
automatic trimming
Electric Current
5.5 A
Voltage
220V
HZ
50 Hz
Humidity
20% ~ 70%
Net Weight
42 kg
Gross Weight
48 kg
Packing Dimension
670 * 640 * 410 mm
