Specifications
Display :
10.2" Touch Screen
Cutting Accuracy :
± 0.2 mm
Model Number :
H5310L , H6810L
Place of Origin :
China
MOQ :
1 Set
Supply Ability :
30 Sets per Month
Max. Cutting Size :
530 * 530 mm , 680 * 680 mm
Cutting Way :
Hydraulic
Net Weight :
450 kg , 500 kg
Min. Cutting Size :
30 mm
Brand Name :
PRINTYOUNG
Payment Terms :
L/C, T/T
Press Way :
Hydraulic + Pedal
Certification :
CE
Model :
H5310L , H6810L
Delivery Time :
30 work days
Price :
USD 2800 ~ 3600 Set
Max. Cutting Thickness :
100 mm
Program :
100 Groups * 96 Cuts
Machine Size :
1440 * 960 * 1195 mm , 1440 * 1100 * 1370 mm
Push Motor :
Step Motor
Description
H5310L H6810L High-speed Variable Frequency Dual Hydraulic Paper Cutting Machine
H5310L Hydraulic Paper Cutting Machine
H5310L H6810L High-speed Variable Frequency Dual Hydraulic Paper Cutting MachineH5310L H6810L High-speed Variable Frequency Dual Hydraulic Paper Cutting Machine
Features
Key feature of this machine:Variable frequency hydraulic technology.
*Precise cutting with accurate blade descent,resolving the issue of inconsistent cutting depth and enhancing the lifespan of the blade and cutting bar.
*380V to 220V variable frequency hydraulic system,providing twice the power of traditional machines and improved stability.
*No need to replace centrifugal switches and capacitors,providing easier after-sales maintenance.
Technical Parameters
Model H5310L H6810L
Max. Cutting Size
530 * 530 mm
 680 * 680 mm
Max. Cutting Thickness
100 mm
Min. Cutting Size
30 mm
Cutting Accuracy
± 0.2 mm
Ball Table
√
Press Way
Hydraulic + Pedal
Cutting Way
Hydraulic
Display
10.2" Touch Screen
Program
100 Groups * 96 Cuts
Arithmetic
√
Push Motor
Step Motor
Frequency Conversion Motor
√
Power
220V (110V) ± 10%
50Hz (60Hz)
3200 W
Machine Size
1440 * 960 * 1195 mm
 1440 * 1100 * 1370 mm
Net Weight
About 450 kg
 About 500 kg
Configuration
H5310L H6810L High-speed Variable Frequency Dual Hydraulic Paper Cutting Machine

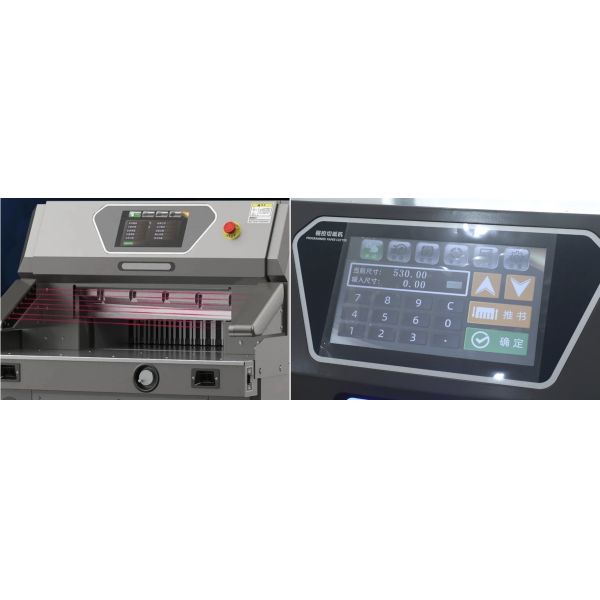

Infrared safety protection design.
Man-machine interface design,100 groups * 96 cuts program.
H5310L H6810L High-speed Variable Frequency Dual Hydraulic Paper Cutting Machine

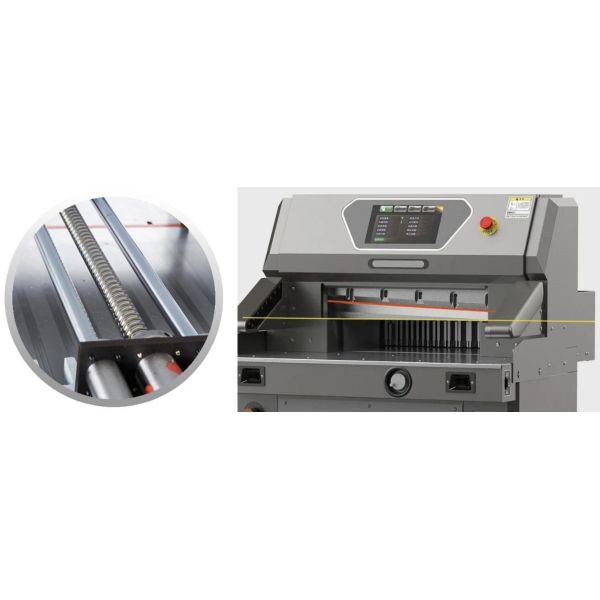

Back platform without groove design, overhanging ball screw push paper more stable.
Patent for oblique cutting paper,cutting more easliy,suitable for thick paper cutting.
H5310L H6810L High-speed Variable Frequency Dual Hydraulic Paper Cutting Machine

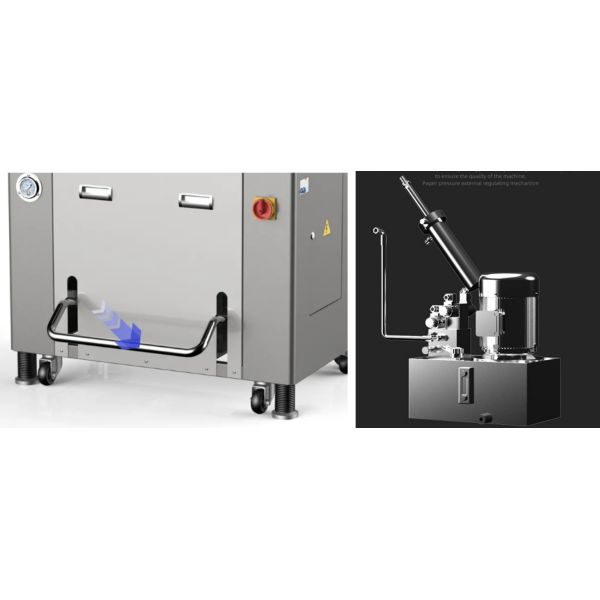

Mechanical foot,cut riding nail book pre-alignment more convenient,higher precision.
Dual hydraulic power control system with externally adjustable paper pressure mechanism.
H5310L H6810L High-speed Variable Frequency Dual Hydraulic Paper Cutting Machine

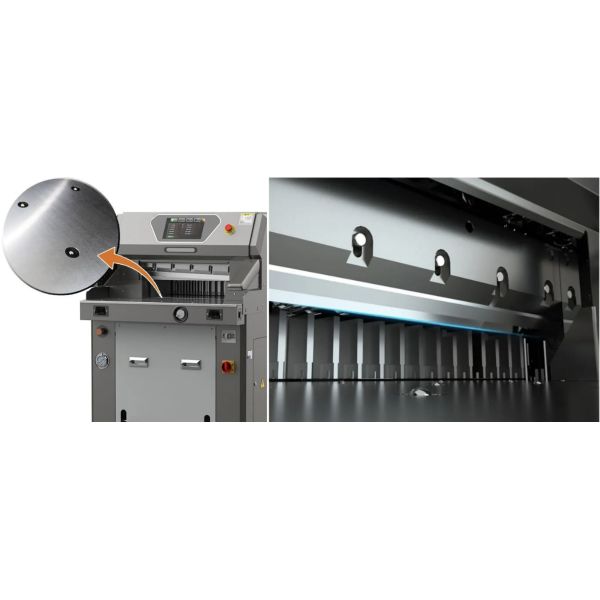

8mm thick aviation aluminum belt ball operating table.
High-speed hydraulic system with rapid blade descent and high efficiency.
H5310L H6810L High-speed Variable Frequency Dual Hydraulic Paper Cutting Machine
H5310L H6810L High-speed Variable Frequency Dual Hydraulic Paper Cutting Machine
H5310L H6810L High-speed Variable Frequency Dual Hydraulic Paper Cutting Machine
H5310L H6810L High-speed Variable Frequency Dual Hydraulic Paper Cutting Machine
H5310L H6810L High-speed Variable Frequency Dual Hydraulic Paper Cutting Machine
H5310L H6810L High-speed Variable Frequency Dual Hydraulic Paper Cutting Machine
H5310L H6810L High-speed Variable Frequency Dual Hydraulic Paper Cutting Machine
