YFMA-850 1050 Electric Fully Automatic High-Speed Heavy-Duty Film Laminating Machine
YFMA-850 1050 Electric Fully Automatic High-Speed Heavy-Duty Film Laminating Machine
Specifications
Total Weight :
5000 kg , 6000 kg
Max. Paper Size :
850 * 1050 mm , 1050 * 1050 mm
Model Number :
YFMA-850 1050
MOQ :
1 Set
Price :
USD 30000 ~ 33000 Set
Laminating Speed :
0 ~ 80 m/min
Packaging Details :
Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Supply Ability :
30 Sets per Month
Power :
28 kw , 30 kw
Delivery Time :
30 work days
Min. Paper Size :
300 * 300 mm
Brand Name :
PRINTYOUNG
Certification :
CE
Payment Terms :
L/C, T/T
Overall Dimensions :
8600 * 1800 * 2000 mm , 8600 * 2000 * 2000 mm
Place of Origin :
China
Model :
YFMA-850 , YFMA-1050
Paper Weight :
105 ~ 500 g/m²
Description
YFMA-850 1050 Electric Fully Automatic High-Speed Heavy-Duty Film Laminating Machine
YFMA-850 Fully Automatic Laminating Machine
YFMA-850 1050 Electric Fully Automatic High-Speed Heavy-Duty Film Laminating Machine
Features
Automatic laminating machine is a kind of printed matter that processes and coats the plastic film on the paper through the machine.This is widely used in people's daily life and can be described as ubiquitous.In the past,the traditional laminating machine had low work efficiency and high labor cost.Now people have invented a fully automatic laminating machine,which uses modern advanced laminating technology to automate paper feeding and paper cutting,which greatly improves the production efficiency, reducing the cost of labor input.Not only that,after.
Automatic laminating machine is stable,easy to operate and easy to set up.It is convenient for cleaning and maintenance;the diversification of operation modes can match the changes of production modes.The operation interface of the equipment has traditional button interface and human-machine interface (touch screen control),thus providing customers with more convenient operation methods,and more Choose a space.The functions of the automatic laminating machine are more diversified:single and double-sided lamination,embossing after lamination,UV drying,water powder removal,chain knife hot knife slitting,vertical water-based precoating,etc.
The color of the products laminated by the automatic laminating machine is more beautiful and beautiful,and it is moisture-proof,easy to clean and durable.Mainly used in magazines, book covers,packaging boxes,calendars,paper bags,etc.Find the best automatic laminating machine in China!
Multifunctional automatic laminating machine,high adaptability,free choice of various configurations one machine has multiple functions,and the equipment functions are modular.
1:Powerful function configuration to solve various lamination process problems!
Powder removal (remove surface dust and surface preheating, enhance surface brightness /matteness/and fit)
UV light-solid lamination (strong lamination fastness,especially to solve large solid bottom lamination indentation,embossing,embossing and filming)
Optional:double-sided laminating (front and back laminating at the same time,high-speed and high-efficiency).
2:Pre-stacker mechanism to realize non-stop paper feeding and receiving.
3:Adopt high-speed offset press feeder (12000 sheets/hour) to ensure fast and stable operation.
4:High degree of intelligence,the whole machine is controlled by PLC and man-machine,and each part is frequency-converted and servo-linked to ensure speed synchronization and easy for one person to operate.
5:Electromagnetic heating system:the temperature rises and falls quickly,the heating roller adopts an electromagnetic heating system and a built-in oil heating system to make sure the temperature is uniform.
6:Driven by the synchronous belt,the equipment is more stable and the accuracy is better.
7:The equipment adopts servo edging,which has higher accuracy and more stability.
8:The main pressure shaft is combined with electric pressure
9:Automatic lifting film, reducing labor intensity and safety.
10:The main roller adopts double chain,no jump,high running stability,it is not easy to stretch after a long time,which affects the accuracy!
Technical Parameters
Mode
YFMA-850
 YFMA-1050
Max. Paper Size
850 * 1050 mm
 1050 * 1050 mm
Min. Paper Size
300 * 300 mm
 300 * 300 mm
Paper Weight
105 ~ 500 g/m²
 105 ~ 500 g/m²
Laminating Speed
0 ~ 80 m/min
 0 ~ 80 m/min
Power
28 kw
 30 kw
Total Weight
5000 kg
 6000 kg
Overall Dimensions
8600 * 1800 * 2000 mm
 8600 * 2000 * 2000 mm

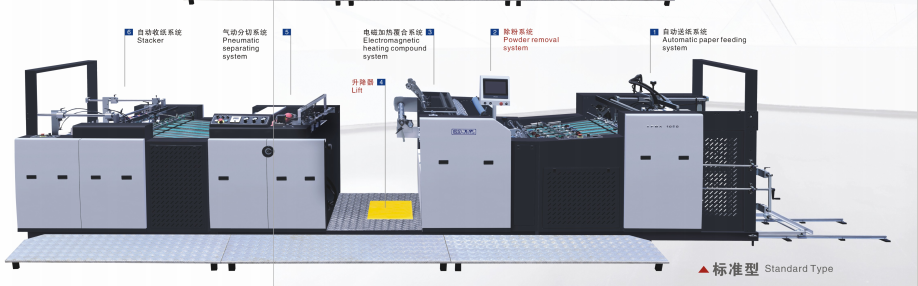

Configuration
YFMA-850 1050 Electric Fully Automatic High-Speed Heavy-Duty Film Laminating MachineYFMA-850 1050 Electric Fully Automatic High-Speed Heavy-Duty Film Laminating MachineYFMA-850 1050 Electric Fully Automatic High-Speed Heavy-Duty Film Laminating Machine

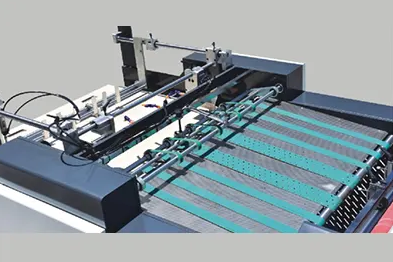

Automatic Paper Feeding System

1: Pre-loading feeder
2: Non-stopped feeder
3: Big format feeder
4: Sucking flat table
5: Front guild
6: Servo has high precision
7: Anti-clutter magnet safety device
YFMA-850 1050 Electric Fully Automatic High-Speed Heavy-Duty Film Laminating Machine

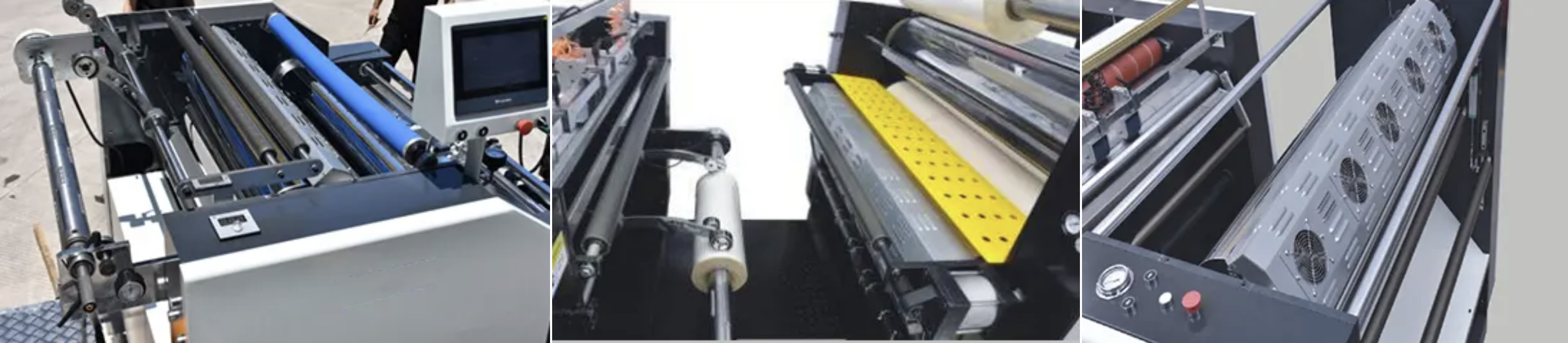

Dust Removal and Front Guild System

1: Mirror iron roller
2: Heating dust removal
3: Scraper cleaning powder
4: Synchronous belt drive
YFMA-850 1050 Electric Fully Automatic High-Speed Heavy-Duty Film Laminating Machine

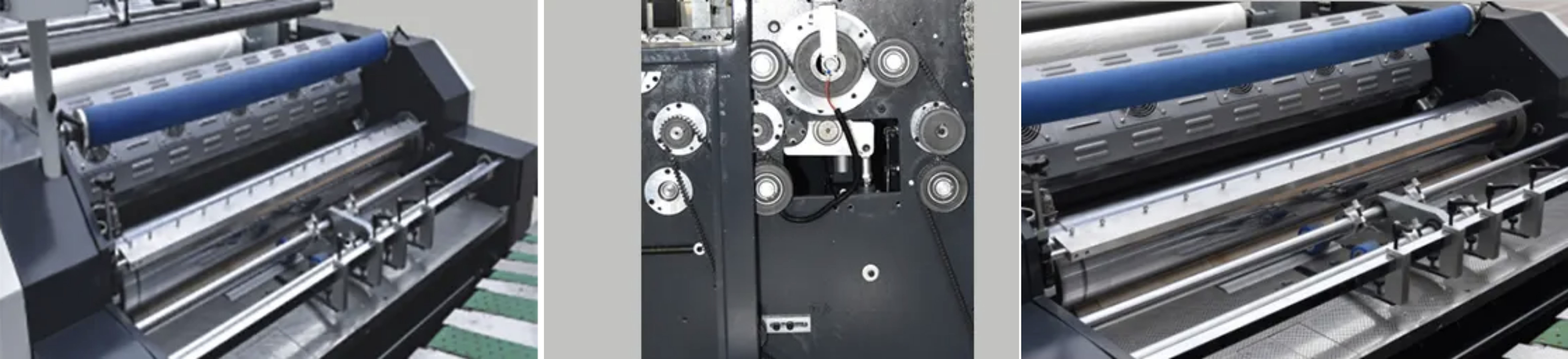

Laminating System

1: Electromagnetic heating
2: Film straight roller
3: Temperature meter outside
4: Automatic pressure
5: Paper lacking and breaking system
6: Double-sided lamination (optional)
YFMA-850 1050 Electric Fully Automatic High-Speed Heavy-Duty Film Laminating MachineYFMA-850 1050 Electric Fully Automatic High-Speed Heavy-Duty Film Laminating Machine

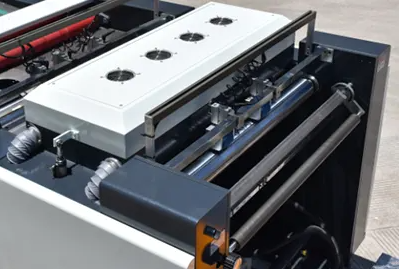

UV Dryer

1: Sucking and outside air system
2: The UV part adopts 8-12kw adjustable electronic light source,which greatly improves the safety performance compared with the traditional voltage source light source, and can adjust the brightness of the light source automatically according to the change of the running speed of the machine,which can be changed from 30% to 100%.The average energy consumption is saved by more than 30%.
YFMA-850 1050 Electric Fully Automatic High-Speed Heavy-Duty Film Laminating MachineYFMA-850 1050 Electric Fully Automatic High-Speed Heavy-Duty Film Laminating Machine

Separation System

1: Back perforating system
2: High speed rotation knife
3: Anti-curve system
4: Pneumatic perforating cutting system
5: Slot for the separating roller
YFMA-850 1050 Electric Fully Automatic High-Speed Heavy-Duty Film Laminating MachineYFMA-850 1050 Electric Fully Automatic High-Speed Heavy-Duty Film Laminating Machine

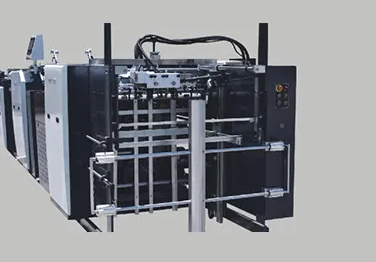

Automatic Paper Stacker

1: Vacuum sucker flat ,belt width 10cm
2: Non-stop feeding
3: 850mm the height of the paper load
4: Counter
5: Paper flap device
6: The electric eye sensor automatically lowers, and the paper output wind pressure adjustment function
7: The intelligent automatic waste discharge system automatically discharges uncut products to avoid scrapping due to paper jams.
Applications
It suits for pre-coated film,and it is widely used for magazines,paper,books and packs for food,medicine,cosmetic and so on.
