PRY-HK700+C900 PRINTYOUNG Automatic Case Maker with Yamaha Manipulator Engine & Motor 380V 26pcs/min
PRY-HK700+C900 PRINTYOUNG Automatic Case Maker with Yamaha Manipulator Engine & Motor 380V 26pcs/min
Specifications
Certification :
CE
Machine Size :
7500 * 3000 * 2000 mm
Delivery Time :
30 work days
Air Pressure :
20L/min 0.8MPa
Grey Board Thickness :
1 ~ 4 mm
Brand Name :
PRINTYOUNG
Positioning Accuracy :
± 0.1 mm
Supply Ability :
30 Sets per Month
Packaging Details :
Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Payment Terms :
L/C, T/T
Min. Case Size :
90 * 150 mm
Speed :
≤ 26 pcs/min
MOQ :
1 Set
Place of Origin :
China
Machine Weight :
3400 kg
Power :
380V / 16kw
Model Number :
JX-HK700+C900
Max. Case Size :
450 * 900 mm
Paper Thickness :
80 ~ 250 gsm
Model :
PRY-HK700+C900
Price :
USD 31500 Set
Mid Spine Width :
≥ 10 mm
Description

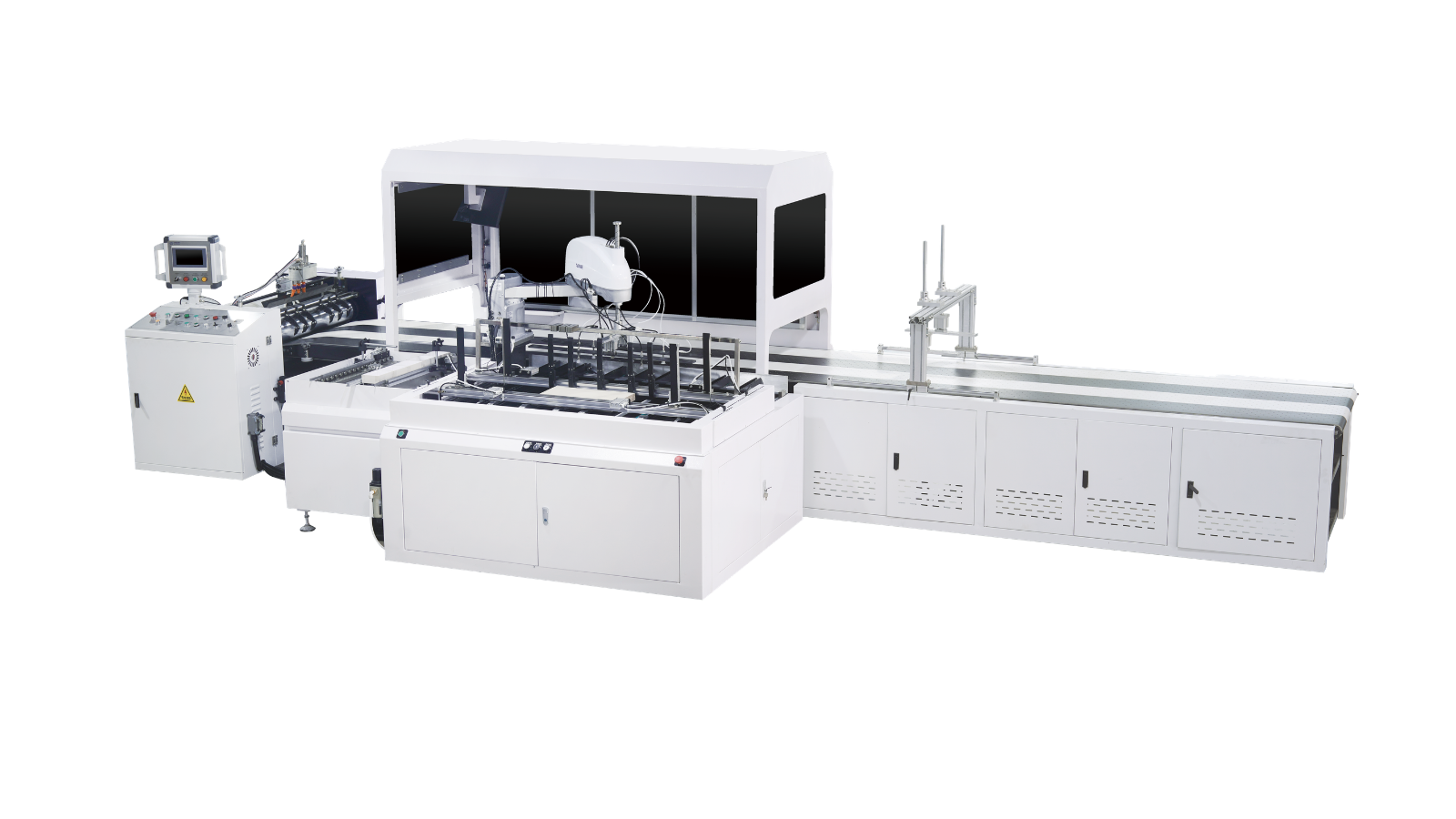

PRY-HK700+C900 PRINTYOUNG Automatic Case Maker with Yamaha Manipulator Engine & Motor 380V 26pcs/min
PRY-HK700+C900 Automatic Case Maker
PRY-HK700+C900 PRINTYOUNG Automatic Case Maker with Yamaha Manipulator Engine & Motor 380V 26pcs/min
PRY-HK700+C900 PRINTYOUNG Automatic Case Maker with Yamaha Manipulator Engine & Motor 380V 26pcs/min
Description
The fully automatic case shell making machine is professional post-press automation equipment for rigid box and hardcover production.It integrates automatic paper feeding, precision roller gluing,automatic board positioning,four-side folding,corner pressing and flattening in one process.The whole shell-making process is fully automatic,which greatly reduces manual work.It effectively solves common defects caused by manual operation such as uneven edges,bubbles,degumming and size deviation,ideal for mass production of high-grade rigid gift boxes,hardcover books,cosmetic boxes and wine boxes.
PRY-HK700+C900 PRINTYOUNG Automatic Case Maker with Yamaha Manipulator Engine & Motor 380V 26pcs/min

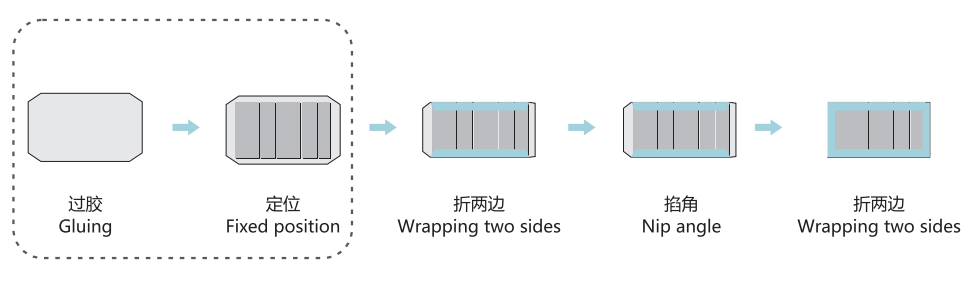

Working Principle
Equipped with dual independent feeders for cover paper and grey board separately.The precision roller gluing system ensures uniform and adjustable glue thickness.Camera visual system guarantees high-precision positioning.The machine automatically completes paper gluing,board positioning,four-side folding and roller flattening.Finished cases feature square corners,tight lamination,no wrinkles and no bubbles with stable consistency.
Key Features
- Dual-feeder automatic feeding system,avoid overlapping and empty feeding.
- Intelligent adjustable gluing system with uniform glue layer,glue saving and no glue particles,compatible with common used jelly glue.
- Visual positioning and deviation correction to ensure accurate registration and eliminate misalignment defects.
- Automatic corner pressing,edge folding and flattening ensures square corners,straight edges and perfect appearance.
- Automatic fault alarm and stop protection,stable operation,high safety and low failure rate.
- Wide compatibility for various rigid shell sizes and specifications.
Advantages
Compared with manual and semi-automatic machines,this fully automatic shell making machine features higher output,lower labor cost and higher yield rate.Finished shells are flat,tight,bubble-free and degumming-free with standardized corners,greatly improving product grade.With stable performance,simple adjustment and easy maintenance,it is ideal automation equipment for gift box factories and hardcover printing plants to reduce costs and improve efficiency.

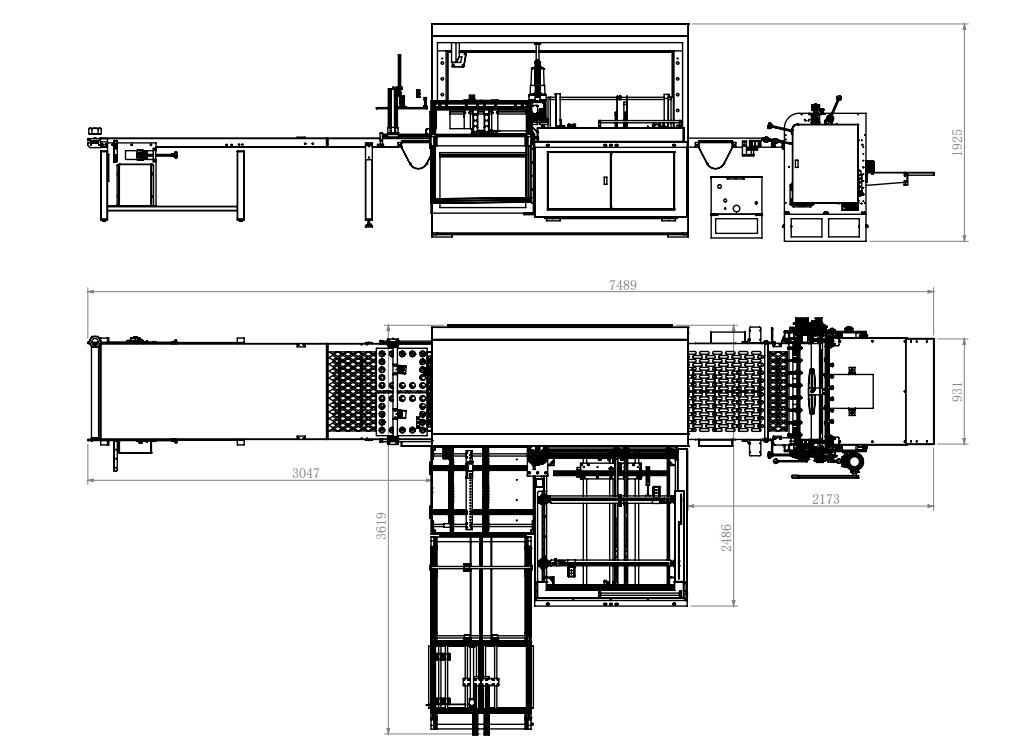

Technical Parameters
Model
PRY-HK700+C900
Machine Size
7500 * 3000 * 2000 mm
Machine Weight
3400 kg
Power
380V / 16kw
Air Pressure
20L/min 0.8MPa
Positioning Accuracy
± 0.1 mm
Min. Case Size
90 * 150 mm
Max. Case Size
450 * 900 mm
Grey Board Thickness
1 ~ 4 mm
Mid Spine Width
≥ 10 mm
Paper Thickness
80 ~ 250 gsm
Speed
≤ 26 pcs/min
Applications
Hardcover book shells,rigid notebooks,file folders,calendars,high-end gift boxes,rigid two-piece boxes,wine boxes,cosmetic boxes,electronic product rigid packaging and other rigid shell products.
PRY-HK700+C900 PRINTYOUNG Automatic Case Maker with Yamaha Manipulator Engine & Motor 380V 26pcs/min
PRY-HK700+C900 PRINTYOUNG Automatic Case Maker with Yamaha Manipulator Engine & Motor 380V 26pcs/min
PRY-HK700+C900 PRINTYOUNG Automatic Case Maker with Yamaha Manipulator Engine & Motor 380V 26pcs/min
PRY-HK700+C900 PRINTYOUNG Automatic Case Maker with Yamaha Manipulator Engine & Motor 380V 26pcs/min
PRY-HK700+C900 PRINTYOUNG Automatic Case Maker with Yamaha Manipulator Engine & Motor 380V 26pcs/min
PRY-HK700+C900 PRINTYOUNG Automatic Case Maker with Yamaha Manipulator Engine & Motor 380V 26pcs/min
PRY-HK700+C900 PRINTYOUNG Automatic Case Maker with Yamaha Manipulator Engine & Motor 380V 26pcs/min
