PRY-W Semi-Automatic Electric Film Wrapping Machine with Belt Packaging Easy to Operate
PRY-W Semi-Automatic Electric Film Wrapping Machine with Belt Packaging Easy to Operate
Specifications
Price :
USD 1600 ~ 2000 Set
Dimensions :
1000*650*1500mm , 1200*750*1600mm , 1500*750*1700mm
Certification :
CE
Supply Ability :
30 Sets per Month
Power :
0.75KW , 0.75KW , 1.0KW
Speed for 3 Wraps :
1.8 sec , 2.1 sec , 3 sec
Model Number :
PRY-400W , PRY-600W , PRY-900W
Place of Origin :
China
Payment Terms :
L/C, T/T
Model :
PRY-400W , PRY-600W , PRY-900W
Film Thickness :
≥ 0.015 mm
Min. Wraps :
2 (adjustable)
Air Pressure :
0.5 Mpa
Weight :
110KG , 170KG , 160KG
Time per Wrap :
0.4 , 0.5 , 0.9 sec/wrap, speed adjustable
Film Width :
15-60mm , 20-80mm , 20-80mm
Delivery Time :
20 work days
Brand Name :
PRINTYOUNG
MOQ :
1 Set
Wrapping Height :
30-280mm , 50-500mm , 50-700mm
Packaging Details :
Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Wrapping Width :
50-400mm , 60-600mm , 60-900mm
Description
PRY-W Semi-Automatic Electric Film Wrapping Machine with Belt Packaging Easy to Operate
PRY-400W Film Wrapping Machine
PRY-W Semi-Automatic Electric Film Wrapping Machine with Belt Packaging Easy to Operate
Features
The latest seamless wrapping machine (film wrapping machine) is highly compatible with corrugated boxes,cartons,paper bags,and corrugated bags.It packs without creases,eliminating the need for linerboards,saving time and effort while maintaining quality!
* Servo motor drive for precise positioning and accurate strapping
* PLC control system ensures stable and reliable operation
* 7-inch touchscreen HMI for intuitive human-machine interaction
* Standard pressing plate prevents product shift for neat, tight packaging
* Pneumatic cutter enables fast, sensitive film cutting to boost efficiency
* PE stretch film protects product surfaces from damage
* More cost-effective than traditional paper bag strapping
Technical Parameters
Model
PRY-400W
 PRY-600W PRY-900W
Dimensions
1000 * 650 * 1500 mm
 1200 * 750 * 1600 mm 1500 * 750 * 1700 mm
Wrapping Height
30 ~ 280 mm
 50 ~ 500 mm 50 ~ 700 mm
Wrapping Width
50 ~ 400 mm
 60 ~ 600 mm 60 ~ 900 mm
Power
0.75 kw
 0.75 kw 1.0 kw
Voltage
220V / 50Hz
 220V / 50Hz 220V / 50Hz
Weight
110 kg
 170 kg 260 kg
Air Pressure
0.5 MPa
 0.5 MPa 0.5 MPa
Min. Wraps
2 (adjustable)
 2 (adjustable) 2 (adjustable)
Time per Wrap
0.4 sec/wrap , speed adjustable
 0.5 sec/wrap , speed adjustable 0.9 sec/wrap , speed adjustable
Speed for 3 Wraps
1.8 sec
 2.1 sec 3 sec
Film Thickness
≥ 0.015 mm
 ≥ 0.015 mm ≥ 0.015 mm
Film Width
15 ~ 60 mm
 20 ~ 80 mm 20 ~ 80 mm
Configuration
PRY-W Semi-Automatic Electric Film Wrapping Machine with Belt Packaging Easy to OperatePRY-W Semi-Automatic Electric Film Wrapping Machine with Belt Packaging Easy to Operate

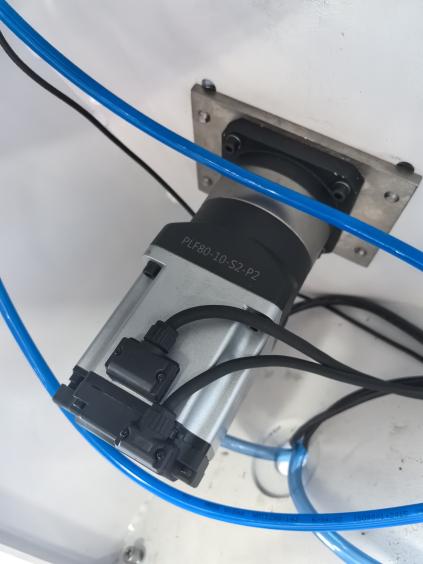

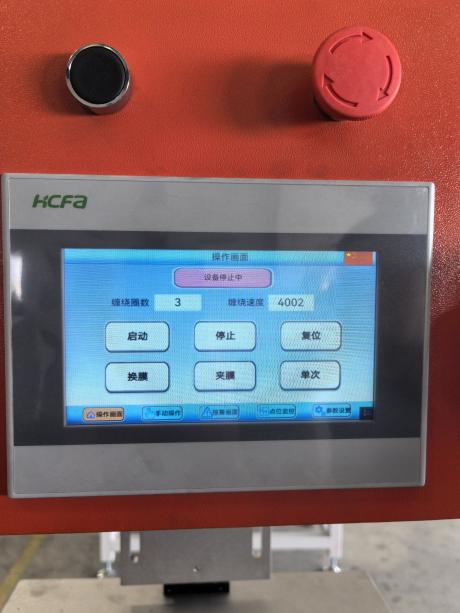

Servo Motor 7-inch Touch Screen
PRY-W Semi-Automatic Electric Film Wrapping Machine with Belt Packaging Easy to OperatePRY-W Semi-Automatic Electric Film Wrapping Machine with Belt Packaging Easy to OperatePRY-W Semi-Automatic Electric Film Wrapping Machine with Belt Packaging Easy to OperatePRY-W Semi-Automatic Electric Film Wrapping Machine with Belt Packaging Easy to Operate

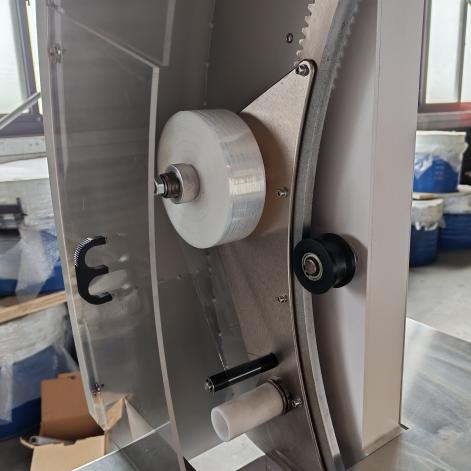

Cylinder Drive PE Wrapping Film Drive Standard Pressure Plate
PRY-W Semi-Automatic Electric Film Wrapping Machine with Belt Packaging Easy to Operate
PRY-W Semi-Automatic Electric Film Wrapping Machine with Belt Packaging Easy to Operate
PRY-W Semi-Automatic Electric Film Wrapping Machine with Belt Packaging Easy to Operate
PRY-W Semi-Automatic Electric Film Wrapping Machine with Belt Packaging Easy to Operate
PRY-W Semi-Automatic Electric Film Wrapping Machine with Belt Packaging Easy to Operate
PRY-W Semi-Automatic Electric Film Wrapping Machine with Belt Packaging Easy to Operate
PRY-W Semi-Automatic Electric Film Wrapping Machine with Belt Packaging Easy to Operate
PRY-W Semi-Automatic Electric Film Wrapping Machine with Belt Packaging Easy to Operate
