SUP-SL Servo Feeder Fully Automatic Hydraulic Oil Heating Heavy Duty Film Laminating Machine
SUP-SL Servo Feeder Fully Automatic Hydraulic Oil Heating Heavy Duty Film Laminating Machine
SUP-SL Servo Feeder Fully Automatic Hydraulic Oil Heating Heavy Duty Film Laminating Machine
SUP-SL Servo Feeder Fully Automatic Hydraulic Oil Heating Heavy Duty Film Laminating Machine
SUP-SL Servo Feeder Fully Automatic Hydraulic Oil Heating Heavy Duty Film Laminating Machine
SUP-SL Servo Feeder Fully Automatic Hydraulic Oil Heating Heavy Duty Film Laminating Machine
SUP-SL Servo Feeder Fully Automatic Hydraulic Oil Heating Heavy Duty Film Laminating Machine
SUP-SL Servo Feeder Fully Automatic Hydraulic Oil Heating Heavy Duty Film Laminating Machine
SUP-SL Servo Feeder Fully Automatic Hydraulic Oil Heating Heavy Duty Film Laminating Machine
SUP-SL Servo Feeder Fully Automatic Hydraulic Oil Heating Heavy Duty Film Laminating Machine
Specifications
Packaging Details :
Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Pressure :
0~8MPa , 0~15MPa , 0~15MPa
Max. Paper Size :
370*560mm , 530*750mm , 750*750mm
Laminating Temperature :
0 ~ 150 ℃
Maximum Height of Paper :
400 mm
Certification :
CE
Dimensions :
1.95*0.83*1.3m , 2.3*1.02*1.35m , 2.3*1.23*1.35m
Model Number :
SUP-SL400F , SUP-SL540F , SUP-SL750F
Place of Origin :
China
Total Power :
3.5kw , 4kw , 6kw
Brand Name :
PRINTYOUNG
Price :
USD 8500 ~ 12500 Set
Delivery Time :
30 work days
MOQ :
1 Set
Operating Speed :
0 ~ 25 m/min
Weight :
450kg , 565kg , 750kg
Min. Paper Size :
210 * 250 mm
Supply Ability :
30 Sets per Month
Model :
SUP-SL400F , SUP-SL540F , SUP-SL750F
Payment Terms :
L/C, T/T
Description
SUP-SL Servo Feeder Fully Automatic Hydraulic Oil Heating Heavy Duty Film Laminating Machine
SUP-SL Automatic Laminating Machine
SUP-SL Servo Feeder Fully Automatic Hydraulic Oil Heating Heavy Duty Film Laminating Machine
Features

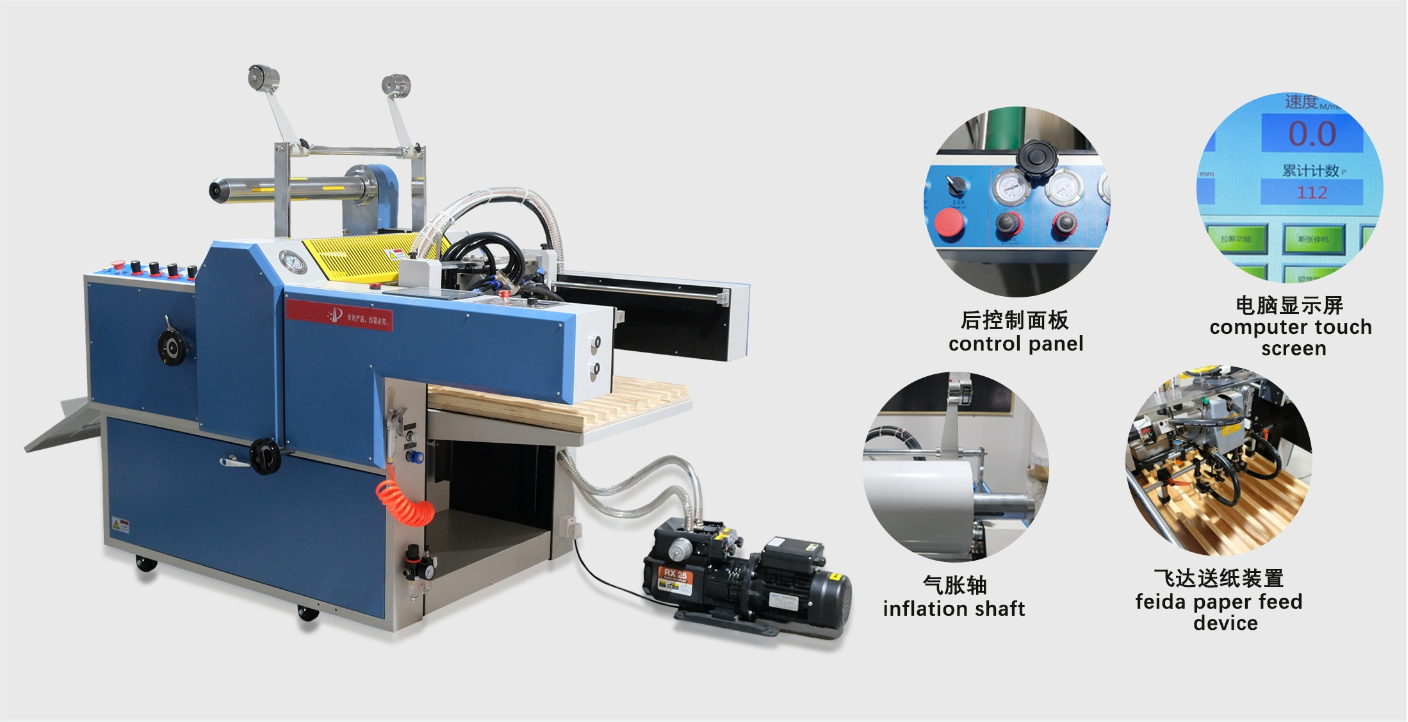

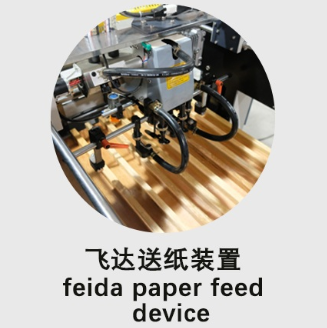

The machine is a fully automatic hydraulic oil heating heavy duty laminating machine.It has a computer touch screen to control and a PLC control system.It can feed paper fast by using the servo motor.Energy-saving inverter control gear motor to adjust speed.The hydraulic pump can provide and release pressure automatically.The inflation shaft is to place the film.It can cut off paper,has auto overlap automatically and colllects papers orderly.The heating roller is reated with high brightness mirror and is large diameter.The pressure roller is made of Teflon and silicon material,which is pressure resistant and non-adhesive.After lamination,the paper does not burst and is not easy to fall off.
Technical Parameters
Model No.
SUP-SL400F
 SUP-SL540F SUP-SL750F
Max. Paper Size
370 * 560 mm
 530 * 750 mm 750 * 750 mm
Min. Paper Size
210 * 250 mm
Operating Speed
0 ~ 25 m/min
Laminating Temperature
0 ~ 150 ℃
Total Power
3.5 kw
 4 kw 6 kw
Dimensions
1.95 * 0.83 * 1.3 m
 2.3 * 1.02 * 1.35 m 2.3 * 1.23 * 1.35 m
Pressure
0 ~ 8 MPa
 0 ~ 15 MPa
Max. Height of Paper
400 mm
SUP-SL Servo Feeder Fully Automatic Hydraulic Oil Heating Heavy Duty Film Laminating Machine
SUP-SL Servo Feeder Fully Automatic Hydraulic Oil Heating Heavy Duty Film Laminating Machine
SUP-SL Servo Feeder Fully Automatic Hydraulic Oil Heating Heavy Duty Film Laminating Machine
SUP-SL Servo Feeder Fully Automatic Hydraulic Oil Heating Heavy Duty Film Laminating Machine
SUP-SL Servo Feeder Fully Automatic Hydraulic Oil Heating Heavy Duty Film Laminating Machine
SUP-SL Servo Feeder Fully Automatic Hydraulic Oil Heating Heavy Duty Film Laminating Machine
SUP-SL Servo Feeder Fully Automatic Hydraulic Oil Heating Heavy Duty Film Laminating Machine
