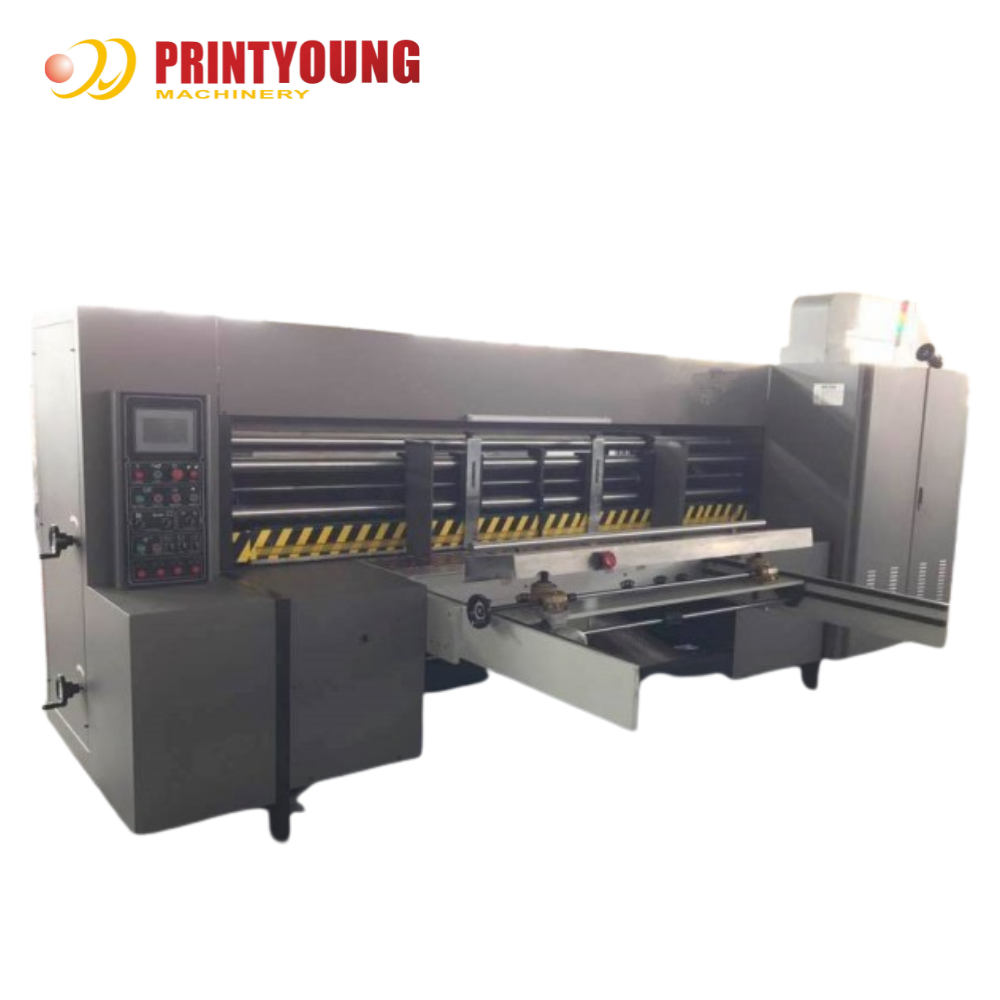

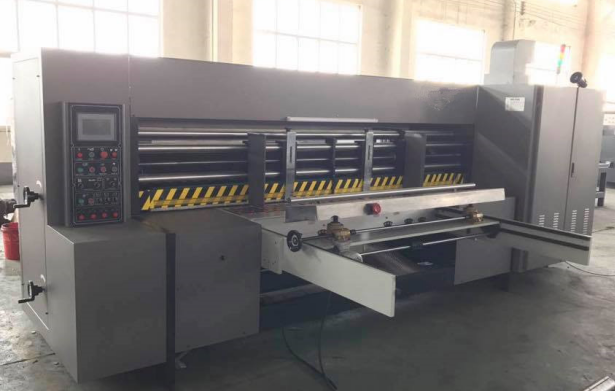

PRY-H1628 Computerized Automatic Rotary Paperboard Die-cutting Machine with High Productivity Engine & Motor Driven
PRY-H1628 Automatic Rotary Die-cutting Machine
PRY-H1628 Computerized Automatic Rotary Paperboard Die-cutting Machine with High Productivity Engine & Motor Driven
Technical Parameters
Machine Model
PRY-H1628
Max. Size of Paperboard
1600 * 2800 mm
Min. Size of Paperboard
500 * 600 mm
Max. Speed
200 pcs/min
Economic Speed
150 ~ 180 pcs/min
Die-Cutting Thickness
3 ~ 16 mm
Precision
± 1 mm
Power
11.5 kw
Configuration
1.Paper Feed
Leading Edge Delivery System
* Can transport rigid thin paperboard and corrugated plate E three.
* The auxiliary feeding paper of high pressure centrifugal fan can be adjusted according to the degree of bending of the board,and make sure that the paper is smooth.
* The left and right side of the side plate manually adjusted.
* The upper and lower clearance of the front baffle is adjusted manually,and the automatic locking device is automatically locked.
* After the position of the electric power adjustment,adjustment is simple,fast.
Paper Feed Roller
* Paper feeding roller adopts rubber roller (154mm).
* Send rolls of paper and dynamic balance correction with seamless steel and outsourcing of wear resistant rubber,elastic buffering effect,to avoid damaging paperboard and mis-operation waste.
* The surface of the paper feed rubber shaft is provided with a groove,the minimum degree of pressure is reduced,and the breaking strength of the corrugated cardboard is avoided.
* Send paper roller surface knurling roller steel,hard chromium plating,the dynamic balance,increase friction feed.
* The paper roll gap for manual adjustment,dial display,adjust the range of 1-12mm,and there is a self locking device,after the adjustment is automatically locked,the adjustment is simple and convenient.

2.Die Cutting Department

Operation Function
* Template and die carpet rollers in die-cutting status by cylinder eccentric device automatically disengages from the can reduce the machine idle load extending the life of die carpet rubber and die cutter.
* Planetary type structure phase adjustment,360 degrees running,stop,positive and negative can operate,phase modulation precision up to 0.1mm convenient version, version of the operating.
* The die cutting roller gap adjustment,adjust the range of 1-12mm,using the cross slider connection,adjust the gear always ensure that the correct position of the meshing.

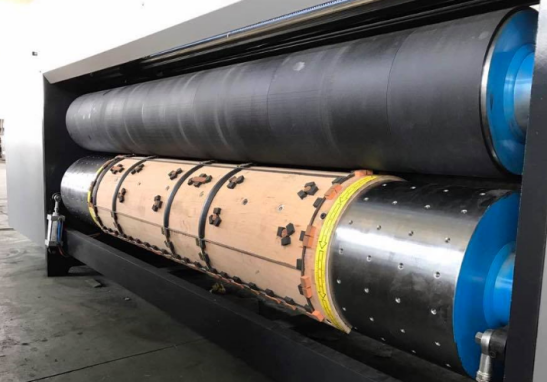

Template Roll
* Alloy structural steel seamless steel pipe processing and grinding,hard chromium plating.
* The standard template type roller fixing screw spacing (axial radial 18mm,100mm;equal) the convenience of customers also customized template.
* Die height 25.4mm.
* Cutting board thickness:16mm (three layers of cardboard). 13mm (five layers of cardboard).
* The axial adjustment for the manual adjustment,adjustable distance is 20mm.
Rubber Pad Roller
* Alloy structural steel seamless steel pipe processing and grinding,hard chromium plating.
* Imported rubber pad,ensure the service life.
* Rubber pad thickness 8mm,width 250mm.

3.Transmission System

The Main Drive Gear
* 45# steel gear,carburizing and quenching treatment,grinding.
* Six levels of accuracy running smoothly,the noise is small,the hardness HRC58-62,the life is long,may achieve the long-term printing precision.
Key Free Connection Ring
With free bond connecting ring,the shaft is connected with the gear,in is not a gap large torque,more convenient installation and maintenance,making the high-precision machine long drive to ensure printing register.

4.Other

The Main Motor
Variable frequency speed regulating motor.
Electrical Components
Brand-name contactors,relays,circuit breakers,lamps,buttons,etc.
Adjust The Motor
Using domestic well-known brands.
PRY-H1628 Computerized Automatic Rotary Paperboard Die-cutting Machine with High Productivity Engine & Motor Driven
PRY-H1628 Computerized Automatic Rotary Paperboard Die-cutting Machine with High Productivity Engine & Motor Driven
PRY-H1628 Computerized Automatic Rotary Paperboard Die-cutting Machine with High Productivity Engine & Motor Driven
PRY-H1628 Computerized Automatic Rotary Paperboard Die-cutting Machine with High Productivity Engine & Motor Driven
PRY-H1628 Computerized Automatic Rotary Paperboard Die-cutting Machine with High Productivity Engine & Motor Driven
PRY-H1628 Computerized Automatic Rotary Paperboard Die-cutting Machine with High Productivity Engine & Motor Driven
PRY-H1628 Computerized Automatic Rotary Paperboard Die-cutting Machine with High Productivity Engine & Motor Driven
