PRY-350T / 450T Fully Automatic Square Bottom Paper Bag Making Machine With Handle
PRY-350T / 450T Fully Automatic Square Bottom Paper Bag Making Machine With Handle
PRY-350T / 450T Fully Automatic Square Bottom Paper Bag Making Machine With Handle
PRY-350T / 450T Fully Automatic Square Bottom Paper Bag Making Machine With Handle
PRY-350T / 450T Fully Automatic Square Bottom Paper Bag Making Machine With Handle
PRY-350T / 450T Fully Automatic Square Bottom Paper Bag Making Machine With Handle
PRY-350T / 450T Fully Automatic Square Bottom Paper Bag Making Machine With Handle
PRY-350T / 450T Fully Automatic Square Bottom Paper Bag Making Machine With Handle
PRY-350T / 450T Fully Automatic Square Bottom Paper Bag Making Machine With Handle
PRY-350T / 450T Fully Automatic Square Bottom Paper Bag Making Machine With Handle
PRY-350T / 450T Fully Automatic Square Bottom Paper Bag Making Machine With Handle
PRY-350T / 450T Fully Automatic Square Bottom Paper Bag Making Machine With Handle
Specifications
Brand Name :
PRINTYOUNG
Model Number :
PRY-350T
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
US 135000 Set
Payment Terms :
L/C, T/T
Supply Ability :
10 Set/Sets per Month
Delivery Time :
60 days
Packaging Details :
Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Machine Type :
Bag Forming Machine
Bag Type :
Shopping Bag
Material :
Paper
Voltage :
380V
Dimension :
14000*6000*2400mm
Weight :
15000 KG
Max Speed :
200pcs/min
Cutting Length :
270-530mm
Paper Bag Width :
120-330mm
Bottom Width :
60-180mm
Paper gsm :
60-150g/㎡
Material Width :
380-1050mm
Paper Material Diameter :
1300mm
Paper Core Inner Diameter :
76mm
Handle Patch Length :
152mm
Handle Patch Width :
50mm
Paper Rope Spacing :
75mm
Description
Features
The machine by hand holding machine will roll of rope and paper roll system arm in arm,arm in arm through the transmission system to put the unit will be primary or printed roll paper twine again a preliminary point break,patch glue,automatic paste hand wan,again by the host with a hand holding the paper to the edge glue,into the bottom of the cone,cutting,creasing,glue,bag forming and piped out of the bag,The whole process is done simultaneously at once.
1.Using Willon touch screen man-machine interface,the operation function is clear at a glance,easy to control
2.Adopt the Japanese original Mitsubishi motion controller,through the integration with the optical fiber, operation stability
3.Japanese Mitsubishi servo motor with German Schick color standard eye correction, accurate tracking printing bag size
4.The raw material loading and unloading adopts hydraulic dynamic lifting structure,and the unwinding adopts automatic constant tension control
5.The raw material correction adopts brushless servo motor to reduce the adjustment time of paper roll alignment
Technical Parameters
Paper Bag Making Machine
Model
PRY-350T
 PRY-450T
Cutting Length
270-530mm
 270-530mm
Cutting Length(total)
270-430mm
 270-430mm
Paper Bag Width
120-330mm
 220-430mm
Paper Bag Width(total)
200-330mm
 240-430mm
Bottom Width
60-180mm
 90-180mm
Paper gsm
60-150g/㎡
 80-150g/㎡
Paper gsm(total)
80-150g/㎡
 80-150g/㎡
Material Width
380-1050mm
 650-1290mm
Material Width(total)
570-1050mm
 650-1290mm
Paper Material Diameter
1300mm
 1200mm
Paper Core Inner Diameter
76mm
 76mm
Handle Patch Length
152mm
 190mm
Handle Patch Width
50mm
 50mm
Paper Rope Spacing
75mm
 95mm
Paper Handle Rope Diameter
3-5mm
 3-5mm
Handle Patch Paper Roll Width
100mm
 100mm
Handle Paper Roll Diameter
1200mm
 1200mm
Handle Patch Paper Weight
100-135g/㎡
 100-135g/㎡
Mechanical Speed
30-200pcs/min
 30-180pcs/min
Paper Bag Production Speed
30-180pcs/min
 30-150pcsmin
Handle Speed
30-150pcs/min
 30-130pcs/min
Cutter Method
Pinking
 Pinking
Total Power
380V/ 3Phase 4Line 41.5kw
 380V/ 3Phase 4Line 41.5kw
The Whole Machine Pressure
0.5-0.8MPa
 0.6-0.7MPa
Total Weight
15000Kg
 15500Kg
Machine Overall Dimension
14000*6000*2400mm
 14000*6200*2400mm
Configuration
Control System
CPU program controller
Human-computer touch screen interface
Photoelectric eye for printed-bag tracking
Low voltage electrical apparatus
Photoelectric sensor
Pneumatic component
Auto lubricating
Main power filter
Motor frequency converter
Servo motor
Servo power
Servo motor reducer
Handlebar servo
Stick machine servo
Host server
Traction servo
Auxiliary traction servo
Gluing servo
Prepricking servo
Bagging three-phase asynchronous motor
Round rope slitting motor
Deviation Correction and Tension Control System
EPC controller
Servo motor for EPC
Ultrasonic sensor
Magnetic powder brake
Automatic tension system of magnetic powder
Automatic hydraulic feeding motor
Feeding hydraulic cylinder
Transmission
Synchronous belt
Synchronous wheel
Bearing
Guide roller
Gear
Glue Position
Bottom glue (bottom-sealing white latex)
Motor for bottom glue evening
Pneumatic auto glue filling valve
Side glue
Glue Glue Position Detection
Spraying gun for center sealing (dense adjust Glue gun )
High-pressure glue barrel for white latex

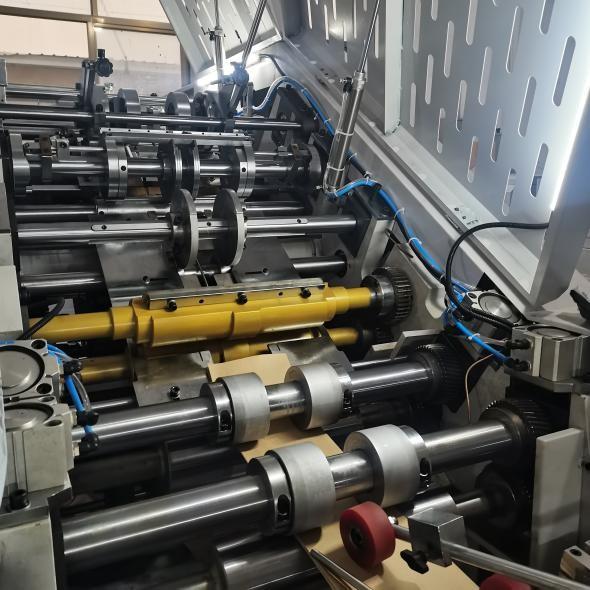

Machine Details
Flow Chart
Applications
Fully automatic square bottom paper bag machine is used to produce hand-held paper bags with hand handles. This machine is especially suitable for the bulk production of shopping bags in food and clothing industries.This machine adopts Japanese mitsubishi imported high speed motion controller (CPU),through the high speed bus control servo operation,to ensure stable movement,smooth motion curve,is the majority of printing and packaging manufacturers preferred automatic portable square bottom paper bag equipment.
Option 1:Two Color Flexo Printing Machine
Option 2:Four Color Flexo Printing Machine
Control Part
1.Main motor frequency control
2.Reduce motor separate
Printing Part
1.Pneumatic lifting and lowing printing plate cylinders auto lifting plate cylinder when the machine is stopped. After that can run ink automatically.When the machine is opening,it will make alarm to start the auto lowering plate printing cylinder.
2.Inking with ceramic anilox chambered doctor blade,ink pump circulation.
3.High precision planetary gear oven 360°circulation longitudinal register.
4.±0.20mm transverse register.
5.Adjust inking press and printing pressure press by manual.
Drying Part
Adopt with external heating pipe,temperature display,electric current control,centrifugal blower bring the wind.
Part Description
Number
Name
1
Main motor
2
Inverter
3
Inking reducer
4
All of the low voltage control switch
5
Main bearing
6
Roller bearing
Structure
1.The machine adopt with synchronous belt drive and hard gear face gear box.The gear box adopt with synchronous belt drive each printing group high precision planetary gear oven (360º adjust the plate) gear driving the press printing roller.
2.After printing,long running material space,it can make the ink drying easily,better results.
Parameters
TYPE
LYT2-800
LYT2-1000
LYT2-1200
LYT2-1300
LYT2-1400
Max. Printing Material Width
800mm
1000mm
1200mm
1300mm
1400MM
Max. Printing Width
760mm
960mm
1160mm
1260mm
1360MM
Printing Length Range
230-800mm
230-800mm
230-800mm
230-800mm
280-800mm
Printing Speed
5-100
m∕min
5-100
m∕min
5-100
m∕min
5-100
m∕min
5-100
m∕min
Register Precision
≤±0.20mm
≤±0.20mm
≤±0.20mm
≤±0.20mm
≤±0.20mm
Size
2240x1900x2500
2240X2100X2500
2240X2170X2500
2240X2270X2500
2240X2370X2500
Weight
1.8T
2T
2.3T
2.5T
2.7T
Power
7KW
7KW
9KW
9KW
11KW
TYPE
LYT4-800
LYT4-1000
LYT4-1200
LYT4-1300
LYT4-1400
Max. Printing Material Width
800mm
1000mm
1200mm
1300mm
1400mm
Max. Printing Width
760mm
960mm
1160mm
1260mm
1360mm
Printing Length Range
230-800mm
230-800mm
230-800mm
230-800mm
230-800mm
Printing Speed
5-100m∕min
5-100m∕min
5-100m∕min
5-100m∕min
5-100m∕min
Register Precision
≤±0.20mm
≤±0.20mm
≤±0.20mm
≤±0.20mm
≤±0.20mm
Thickness of plate(including the thickness of double sides glue)
The default is 2.28+0.38,which can be customized according to customer requirements.
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free;
2)We can send technicians (engineers) to your factory for installation and training.
You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
