High Speed 2 Layer Paperboard Corrugated Box Machine Production Line 150m/min
High Speed 2 Layer Paperboard Corrugated Box Machine Production Line 150m/min
High Speed 2 Layer Paperboard Corrugated Box Machine Production Line 150m/min
High Speed 2 Layer Paperboard Corrugated Box Machine Production Line 150m/min
High Speed 2 Layer Paperboard Corrugated Box Machine Production Line 150m/min
High Speed 2 Layer Paperboard Corrugated Box Machine Production Line 150m/min
High Speed 2 Layer Paperboard Corrugated Box Machine Production Line 150m/min
High Speed 2 Layer Paperboard Corrugated Box Machine Production Line 150m/min
Specifications
Brand Name :
PRINTYOUNG
Model Number :
1800
Certification :
CE
Place of Origin :
China
MOQ :
1 Set/Sets
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
5-8days (stock),20-60days(unstock)
Packaging Details :
Neutral packaging, suitable for shipping in a solid iron frame composite box or fumigation wooden box, to adapt to climate change, Fang Lin, moisture, mold, shock, rust.
Type :
Packaging line
Automatic grade :
Automatic
Corrugated rollers :
Tungsten Carbide Corrugated Rollers
Flute type :
A/B/C/E/F
Application :
2 layer corrugated cardboard production line
Driven type :
Hydraulic
Max. paper width :
1800mm
Max. speed of machine :
150m/min
Max. Width of corrugating roll :
1850mm
Description

High Speed 2 Layer Corrugated Paperboard Production Line

Quick Detail

Max. paper width 1800mm
Max. Width of corrugating roll 1850mm
Max. speed of machine 150m/min
Economic speed of production 80-120m/min
Flute type A/B/C/E/F

Steam consumption: 1000kg/hour

Working. pressure: 1.0—1.1MPa

Max. pressure 1.3Mpa
Power requested 380V,50Hz,3-phase
Total power 80kw for general condition
Total length of line 30 meters.

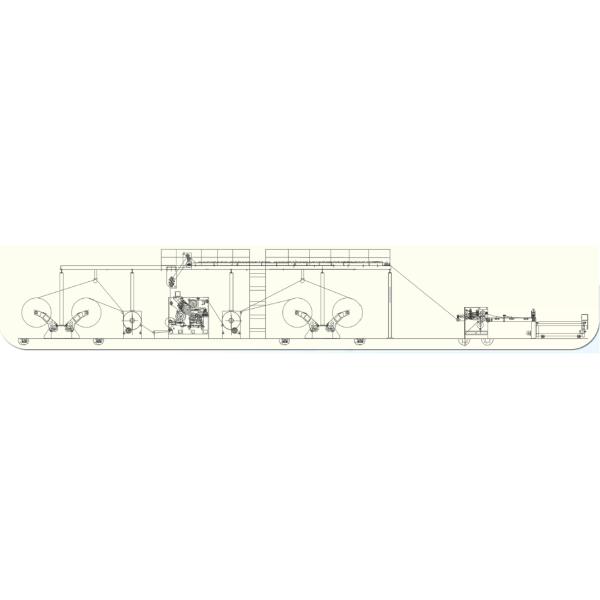

Single facer paperboard production line

High Speed 2 Layer Paperboard Corrugated Box Machine Production Line 150m/min

Detail of Image

Hydraulic Mill Roll Stand

Core clutch Pneumatic break

High Speed 2 Layer Paperboard Corrugated Box Machine Production Line 150m/min High Speed 2 Layer Paperboard Corrugated Box Machine Production Line 150m/min

Specification

Max. working width 1800mm
Min. working width 900mm
Max. paper mill dia 1500mm
Max working pneumatic pressure: 0.6-0.9Mpa
Power requirements: 380V, 50Hz
Length of track for carry paper mill 6000mm

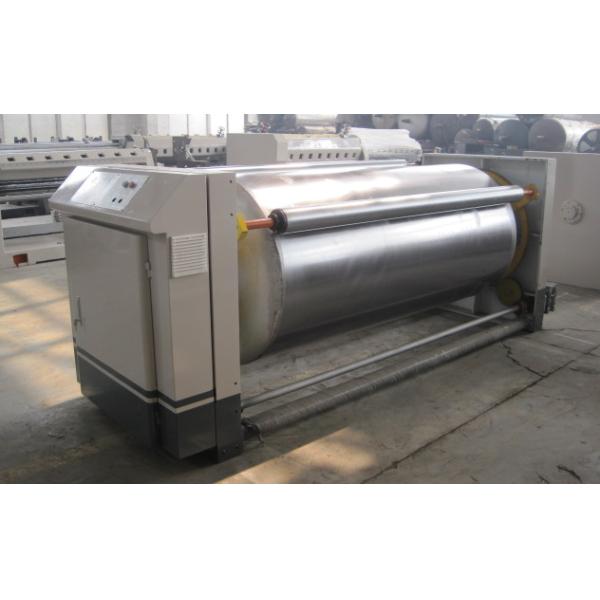

Preheater

High Speed 2 Layer Paperboard Corrugated Box Machine Production Line 150m/min

Specification

Max. working width 1800mm
Max working steam pressure: 1.0-1.3Mpa
Steam temperature 360 centigrade
Power requirements: 380V, 50Hz
Diameter of heating roller 600mm
Wrap roller diameter 115mm

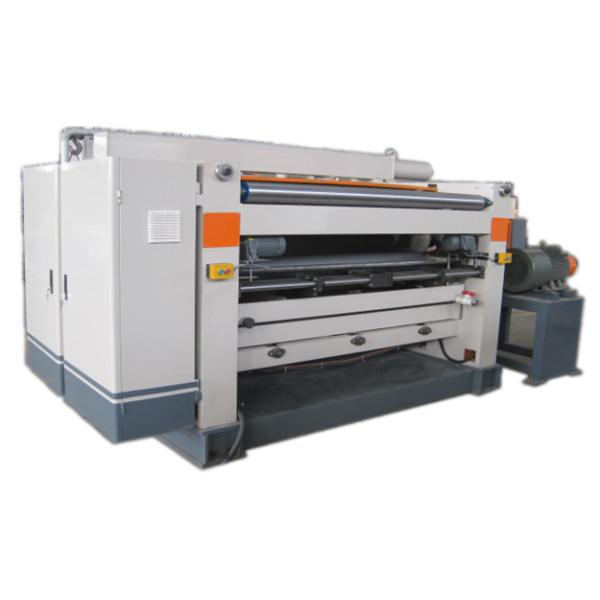

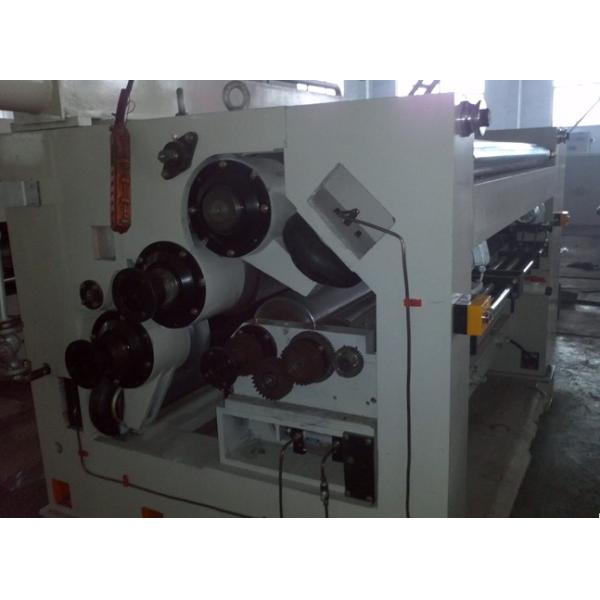

High Speed Fingerless Type Single Facer

High Speed 2 Layer Paperboard Corrugated Box Machine Production Line 150m/min

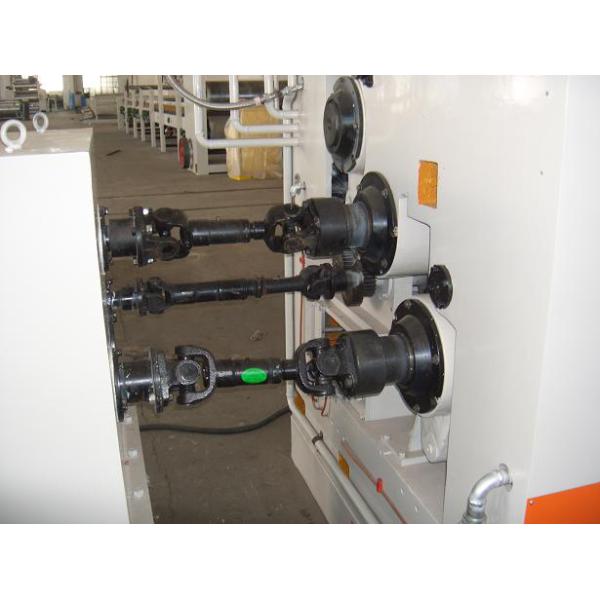

Gimbal driver system. Individual gear type drive box

High Speed 2 Layer Paperboard Corrugated Box Machine Production Line 150m/min

High Speed 2 Layer Paperboard Corrugated Box Machine Production Line 150m/min

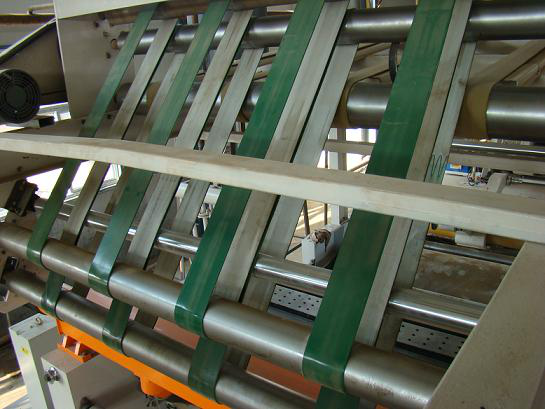

Overhead Bridge

High Speed 2 Layer Paperboard Corrugated Box Machine Production Line 150m/min

High Speed 2 Layer Paperboard Corrugated Box Machine Production Line 150m/min

High Speed 2 Layer Paperboard Corrugated Box Machine Production Line 150m/min
