Specifications
Brand Name :
XINYUN
Model Number :
XY-TQ-A-H
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
100000 usd
Payment Terms :
T/T
Supply Ability :
500 sets per year
Delivery Time :
60-70 days
Packaging Details :
Standard export wooden pallet
Speed :
200-230m/min
Jumbo roll width :
1350-3000mm
jumbo roll diameter :
1200mm
finished product diameter :
150-300mm
finished product :
maxi roll
color :
white
Power :
depends on model
Control System :
PLC control system
Automatic Grade :
Fully Automatic
Size :
Adjustable
Description

Full automatic shrink film package industrial maxi roll making machine production line

Full Automatic Shrink Film Package Industrial Maxi Roll Making Machine Production Line

Technical performance characteristic:
This production line consists of :
1. XY-TQ-B kitchen towel and toilet paper and maxi roll rewinding machine
2. XY-AI-500 Full automatic maxi roll band saw cutting machine
3. XY-TN-269 Automatic maxi roll heat shrinking packing machine
From jumbo roll paper into the finished rollers, the whole line work smoothly and run stable, saving the labor cost and reducing the labor strength. It’s best choice for the producing maxi roll products.
Full Automatic Shrink Film Package Industrial Maxi Roll Making Machine Production Line
1. XY-TQ-B kitchen towel and toilet paper and maxi roll rewinding machine

Feature and Function

1. Automatic core feeding system, automatic log pusher after rewinding, then rewinding the new log again.
2. Automatic edge-trimming, core feeding, glue spraying and sealing synchronously in one time.

3.Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost.
4. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.

5. Three horizontal type back stands, pneumatic loading system, with wide driving flat belts; each jumbo roll can be adjusted independently.

6. Embossing Unit: adopt point to point embossing rollers, making the two layers match well, the paper is soft and has clear patterns

7. Adopt jogging switches for wearing the paper, easy and safe to operate.

Product Parameters

Jumbo roll width 1800mm (Other size can be specified)
Jumbo roll diameter max.1200mm(Other size can be specified)
Jumbo roll inner core diameter 3 inches(76.2mm)
Finish product diameter 90-280mm
Finish product inner core diameter 35-90mm
Perforation distance 100-300mm(Other size can be specified)
Production speed 180-230m/min
PLC INVT
Rewinding Unit with core or coreless(need to point out)

Full Automatic Shrink Film Package Industrial Maxi Roll Making Machine Production Line

2. XY-AI-500 Full automatic maxi roll band saw cutting machine

Cutting speed
15-20cuts/minute
Cutting channel
single channel
Cutting blade
band saw blade(18,000--20,000 rolls/blade)
Cutting blade size
6390*90*1.2MM
Log length
≦2200mm or ≦2850mm
Tolerance
±2mm
Cutting length
≦300mm
Cutting diameter
150-300mm(Adjustable)
Thickness of paper core
≦3 mm
Power supply
15KW 3 phase 4line 380V 50HZ
Machine weight
2700KG
Overall size of machine
6546×2651×2635mm

Full Automatic Shrink Film Package Industrial Maxi Roll Making Machine Production Line

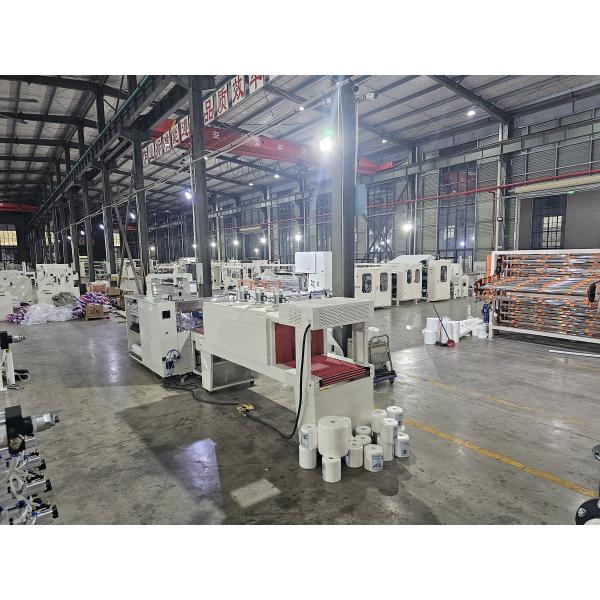

3. XY-TN-269 Automatic maxi roll heat shrinking packing machine
Model
4525L cutting and sealing machine
4525 temperature shrink machine
Power source
220V 50Hz/60Hz
380V 50/60Hz
Rated Power
1.55KW
12 KW
Sealing Size
 L800*W400*H200MM
450*220*120mm
Packing speed
20-40 Packs /min
0-10m/min
Packaging Size
L450 x W400 x H120 MM
450*220*120mm
Machine size
L1500×W750×H1360mm
L1600×W700×H1300mm
Weight
300KG
150KG
Full Automatic Shrink Film Package Industrial Maxi Roll Making Machine Production Line
Q: Are you trading company or manufacturer
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock, it is according to
quantity.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
