Specifications
Brand Name :
XINYUN
Model Number :
XY-TQ-A-G
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
90000 USD
Payment Terms :
T/T
Supply Ability :
500 sets per year
Delivery Time :
60-70 days
Packaging Details :
Standard export wooden pallet
Machine Size :
Depends on customer's requirement
Embossing System :
Steel to Rubber
Cutting System :
log saw Knife
Application :
Toilet Paper, Kitchen Towel,
Power Supply :
380V, 50Hz
Raw Material :
Virgin Pulp, Recycled Pulp
Warranty :
12 months
Control System :
PLC Control
Product Type :
toilet paper production line
After-Sales Service :
Engineers available to service machinery overseas
Production Speed :
200-230 meters/min
Packing method :
48 rolls bundle
Description

Good price 48 rolls bundle packing small toilet paper roll making machine production line with individual roll package machine


Technical performance characteristic:

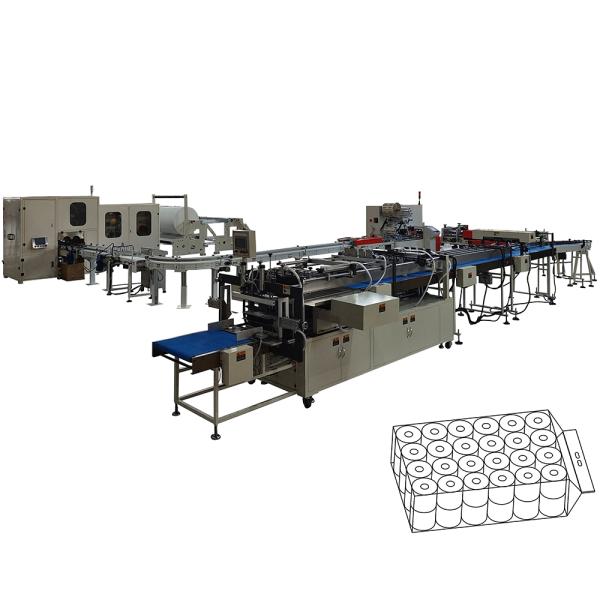

This production line consists of :
1. XY-TQ-B Fully automatic small toilet paper roll making machine
2. XY-AI-280 High speed toilet roll log saw Cutting Machine
3. XY-503IZ Automatic individual toilet paper roll packing machine
4. XY-AI-398D Semi automatic 48 rolls toilet paper bundle packing machine
From jumbo roll paper into the finished small toilet paper rolls, the whole line work smoothly and run stable, saving the labor cost and reducing the labor strength. It’s best choice for the producing 48 rolls bundle toilet paper products.
toilet tissue paper machine,toilet paper making machine,toilet paper production line,toilet tissue making machine,toilet paper packing machine
Good price 48 rolls bundle packing small toilet paper roll making machine production line with individual roll package machine
1. XY-TQ-B Fully automatic small toilet paper roll making machine
Functions and Features --- Wall Type Automatic Rewinding Machine
This wall-mounted toilet paper roll machine ensures vibration-free high-speed operation with minimal noise emission.

Customizable perforation spacing accommodates varying product specifications.

Integrated automation features include self-loading cores, automatic log ejection post-winding, and immediate restart for continuous production.

Simultaneous edge-trimming, adhesive application, and sealing with 10-18mm tail retention enables efficient re-winding, minimizing material loss and operational costs.

The system utilizes globally recognized PLC programming technology with touchscreen HMI for parameter configuration and real-time fault diagnostics.

Four precision-engineered spiral blades deliver quiet perforation with razor-sharp accuracy, complemented by gearbox-enhanced operational range.

Dual wall-mounted backstands feature pneumatic elevation mechanisms and broad drive belts, allowing independent jumbo roll adjustment.

Operator-friendly jog switches facilitate safe paper threading procedures.

Good price 48 rolls bundle packing small toilet paper roll making machine production line with individual roll package machine


2. XY-AI-280 High speed toilet roll log saw Cutting Machine
Name
High speed toilet roll log saw Cutting Machine
Cutting blade
log saw blade(size 610*68.3*3.8mm)
Finished Product length
250mm
Finished Product Diameter
95-140 mm
Production Speed
160-200 rolls/min
Toilet log length
2200 mm/2800 mm
Finished Products
Small Toilet Paper Roll
Application
Industrial Paper Cutting Machine
Function
Cut Toilet Paper Roll
Type
Paper Roll log saw Cutting Machine

Good price 48 rolls bundle packing small toilet paper roll making machine production line with individual roll package machine


3. XY-503IZ Automatic individual toilet paper roll packing machine

Product Description:

1. Multi function: Servo controlling, automatic conveying, automatic feeding, automatic sealing, automatic countering.

2. Adopting the advanced PLC computer programming control and employing the liquid crystal text to display parameters, it is with simple set. Moreover, its temperature controlling is more precise so that heating wires and tapes with thermo stability can be protected more efficient.

3. Packing and sealing are pretty and tidy. The machine operated with full-automation. The machine with conveyer can be connected with other machines to form a whole packing line. This allows machine have high capacity and therefore to save the labor and reduce production cost.

4. Easy to maintain, low noise.

5. Touch screen controlling, parameter adjusted in touch screen easily, such as speed, roll size, film size.

6. Electric eyes detecting, stop automatically when failure occur.

7. Independent temperature control.

8. Capacity: 80~180 pack/min

9. Suitable for both core and coreless toilet roll.

10. Comprehensive design, rigid frame, famous brand major components, this allows our machine work steadily & efficiently, and therefore this makes machine have long life.

11. Can be connected with log saw machine and roll multi pack machine to form an automatic processing line.

Good price 48 rolls bundle packing small toilet paper roll making machine production line with individual roll package machine


4. XY-AI-398D Semi automatic 48 rolls toilet paper bundle packing machine
Technical performance characteristic

1. This equipment can connect with auto cutting machine to be a production line. Only need one person bagging . Conveyor belt automatic conveying, automatic stacking, paper feeding, bagging, sealing and cutting.

2. Adopt PLC computer programming control, double frequency control, touch-screen display parameters, easy to set, temperature control more accurate, more effective protection of hot wire and high temperature resistant adhesive tape.

3. The sealing of package is beautiful and tidy, and is connected with automatic machine to realize the mechanized conveying paper. It only need worker bagging. The speed of whole machine is faster, save labor, reduce production cost, and improve production benefits.

4. Packing speed: 4-6 bag/min The machine has the advantages of reasonable structure, stable performance, strong material and durability; The main parts of control parts are imported high-quality components, and the rest are the national standard high-quality components.

Model

XY-AI-398D

Packing single roll quantity

32,40,48 rolls/bundling bag

Speed

bundling bag/min

Power

2.5Kw 220V 50HZ

Air　Supply

0．6MPA

Single roll size(toilet roll for example)

Diameter:Ø90-120mm

Height:90-100mm

Bundling size

L(360-660)*W(360-480)*H(180-200)mm

Machine size

L4500*W1600*H1500

Machine Weight

650KG

Good price 48 rolls bundle packing small toilet paper roll making machine production line with individual roll package machine


Q: Are you trading company or manufacturer
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock, it is according to
quantity.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

Why buy Machine from Fujian Xinyun Machinery Development Co.,Ltd ?

1. Professional tissue converting machine manufacturer with 20 years experience.

2. 7* 24 hour online , Providing technical support at any time.

3. Technicians can go abroad to install machines

4. Provide OEM service, Customize machine for our clients.

5. All machines have a one-year warranty and lifetime technical support

6.. Professional Loading Plan and Logistics Plan.


Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.
Professional supplier of:

1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-14 output lanes)
4) Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
